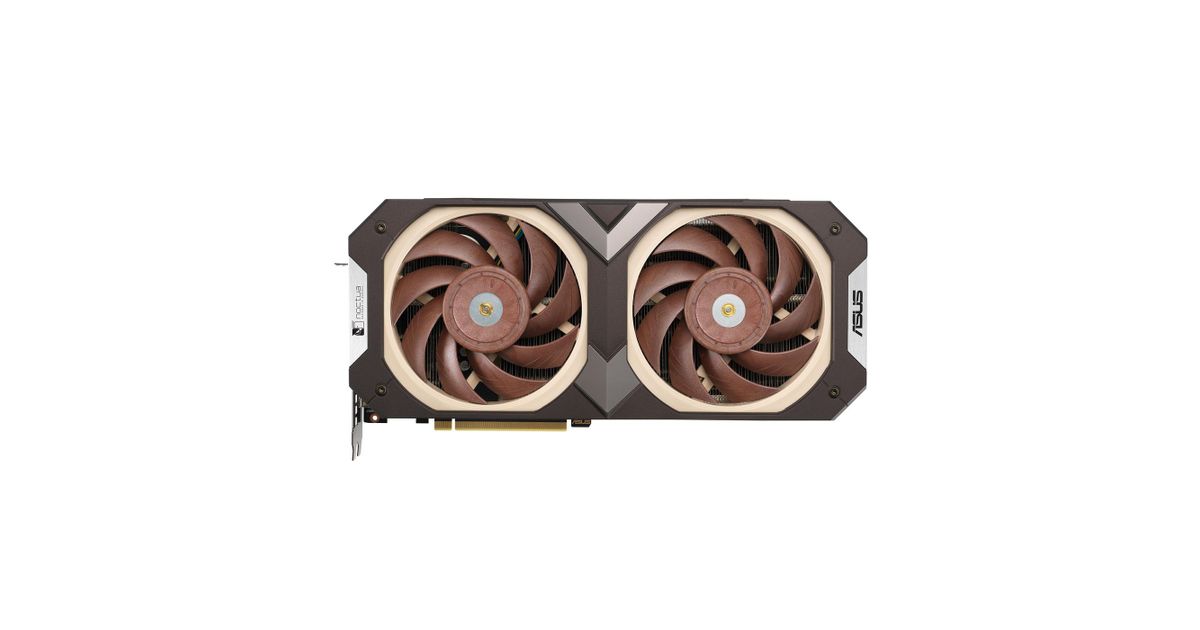

ASUS RTX3070-O8G-NOCTUA NVIDIA GeForce RTX 3070 8 GB GDDR6
ASUS RTX3070-O8G-NOCTUA, GeForce RTX 3070, 8 GB, GDDR6, 256 bit, 7680 x 4320 pixels, PCI Express 4.0
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ASUS |
| Product code | 228649642 |
| EAN | 00195553485753 |
| Manufacturer part number | 90YV0FQQ-M0NA00 |
| Category | Graafikakaardid |
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3070 |
| CUDA | Y |
| CUDA cores | 5888 |
| Processor boost clock speed (OC mode) | 1845 MHz |
| Maximum displays per videocard | 4 |
| Graphics | |
|---|---|
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Discrete graphics adapter memory | 8 GB |
| Memory | |
|---|---|
| Graphics adapter memory type | GDDR6 |
| Memory bus | 256 bit |
| Features | |
|---|---|
| Data transfer rate | 14 Gbit/s |
| DisplayPort version | 1.4a |
| Dual Link DVI | N |
| HDCP | Y |
| Supplementary power connectors | 2x 8-pin |
| Ports & interfaces | |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| Performance | |
|---|---|
| TV tuner integrated | N |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| NVIDIA G-SYNC | Y |
| Fan diameter | 12 cm |
| Design | |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 4.3 |
| Product colour | Brown |
| Other features | |
|---|---|
| Bracket height | Full-Height (FH) |
| Power | |
|---|---|
| Minimum system power supply | 750 W |
| Weight & dimensions | |
|---|---|
| Weight | 1.56 kg |
| Depth | 310 mm |
| Height | 147 mm |
| Width | 87.5 mm |
| Package weight | 2.27 kg |
| Packaging content | |
|---|---|
| Manual | Y |
| Packaging data | |
|---|---|
| Package width | 424 mm |
| Package depth | 245 mm |
| Package height | 126 mm |
| Package type | Box |
Product Description
ASUS GEFORCE RTX™ 3070 NOCTUA EDITION
The Coolest & Quietest Graphics Card in Its Class
ASUS and Noctua engineers teamed up to pair two iconic NF-A12x25 PWM fans with a tailor-made thermal solution that rides on a custom PCB. This potent pairing allows the ASUS GeForce RTX 3070 Noctua Edition to operate at lower GPU temperatures and produce less noise than any air-cooled graphics card in its class.
Cool and Quiet
From shroud to heatsink, every aspect of the cooler is optimized to set new standards for thermals and acoustics.
Noctua NF-A12x25 PWM Fans
The two Noctua NF-A12x25 120mm fans integrate a low-resonance Sterrox® liquid-crystal polymer (LCP) fan impeller, metal-reinforced motor hub, stabilized bearings, and custom low-noise PWM controller to deliver performance you can rely on day in, day out.
Tailor-made Heatsink
ASUS and Noctua engineers ran extensive simulations to optimize heatpipe placement and fin density to take full advantage of the air propelled by both Noctua NF-A12x25 fans.
Card Enhancements
Additional upgrades first championed on ROG Strix and TUF Gaming GeForce RTX 30-series graphics cards allow the ASUS GeForce RTX 3070 Noctua Edition to deliver performance and durability at every level.
GPU Tweak II
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
XSplit offers a premium streaming experience with in-game annotations and other advanced features. Enjoy a free license with the purchase of select ASUS graphics cards. See you online!
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!
The Coolest & Quietest Graphics Card in Its Class
ASUS and Noctua engineers teamed up to pair two iconic NF-A12x25 PWM fans with a tailor-made thermal solution that rides on a custom PCB. This potent pairing allows the ASUS GeForce RTX 3070 Noctua Edition to operate at lower GPU temperatures and produce less noise than any air-cooled graphics card in its class.
Cool and Quiet
From shroud to heatsink, every aspect of the cooler is optimized to set new standards for thermals and acoustics.
Noctua NF-A12x25 PWM Fans
The two Noctua NF-A12x25 120mm fans integrate a low-resonance Sterrox® liquid-crystal polymer (LCP) fan impeller, metal-reinforced motor hub, stabilized bearings, and custom low-noise PWM controller to deliver performance you can rely on day in, day out.
Tailor-made Heatsink
ASUS and Noctua engineers ran extensive simulations to optimize heatpipe placement and fin density to take full advantage of the air propelled by both Noctua NF-A12x25 fans.
Card Enhancements
Additional upgrades first championed on ROG Strix and TUF Gaming GeForce RTX 30-series graphics cards allow the ASUS GeForce RTX 3070 Noctua Edition to deliver performance and durability at every level.
GPU Tweak II
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
XSplit offers a premium streaming experience with in-game annotations and other advanced features. Enjoy a free license with the purchase of select ASUS graphics cards. See you online!
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!
