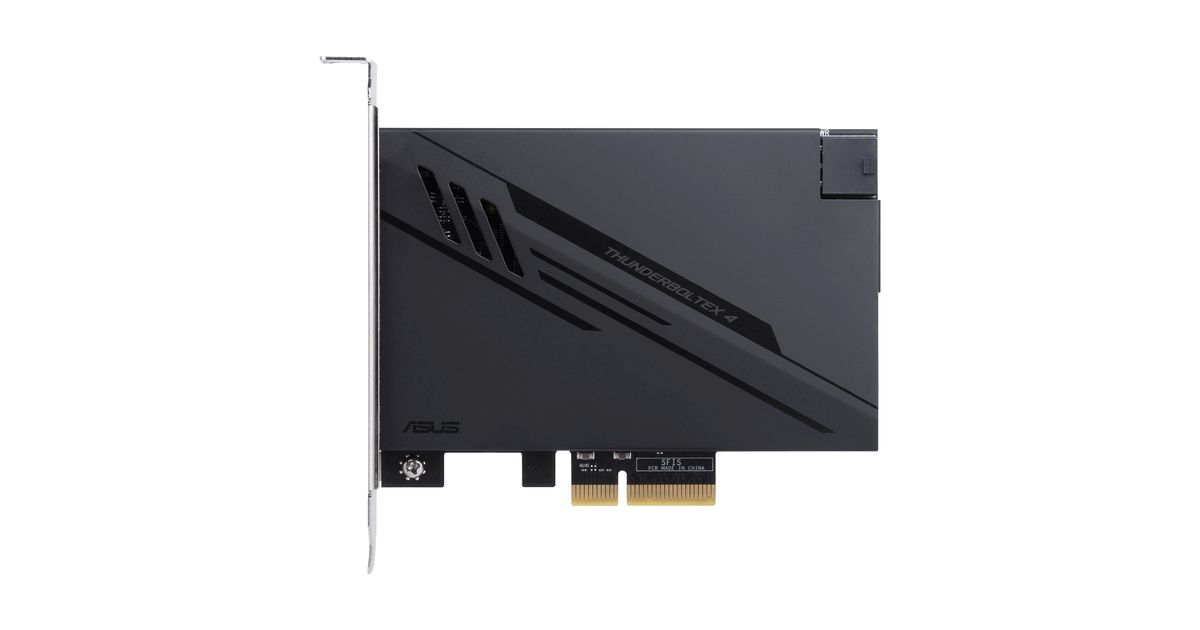

ASUS ThunderboltEX 4 interface cards/adapter Internal Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2)
ASUS ThunderboltEX 4, PCIe, Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2), PCIe 3.0, Black, PC, Intel Thunderbolt 4 JHL8540
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ASUS |
| Product code | 214601658 |
| EAN | 00195553115254 |
| Manufacturer part number | 90MC09P0-M0EAY0 |
| Category | Other controllers |
| Ports & interfaces | |
|---|---|
| Host interface | PCIe |
| Output interface | Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2) |
| Expansion card standard | PCIe 3.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Performance | |
|---|---|
| Internal | Y |
| Chipset | Intel Thunderbolt 4 JHL8540 |
| Compatibility | ASUS Intel 500 |
| Design | |
|---|---|
| Product colour | Black |
| Mouse | |
|---|---|
| Purpose | PC |
| Features | |
|---|---|
| Data transfer rate (max) | 40 Gbit/s |
| Plug and Play | Y |
| Harmonized System (HS) code | 84733020 |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 x64 |
| Drivers included | Y |
| Weight & dimensions | |
|---|---|
| Width | 117.7 mm |
| Depth | 180.5 mm |
| Packaging data | |
|---|---|
| Quantity | 1 |
| Package type | Box |
| Packaging content | |
|---|---|
| Cables included | Mini DisplayPort, Thunderbolt, USB |
| Manual | Y |
| Graphics | |
|---|---|
| Maximum resolution | 7680 x 4320 pixels |
Product Description
Enable blisteringly fast speeds and any-way-up connectivity
ASUS ThunderboltEX 4 is a Thunderbolt™ 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4™ device compatibility, and DisplayPort™ 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C® charging for laptops.
ASUS ThunderboltEX 4 is a Thunderbolt™ 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4™ device compatibility, and DisplayPort™ 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C® charging for laptops.
