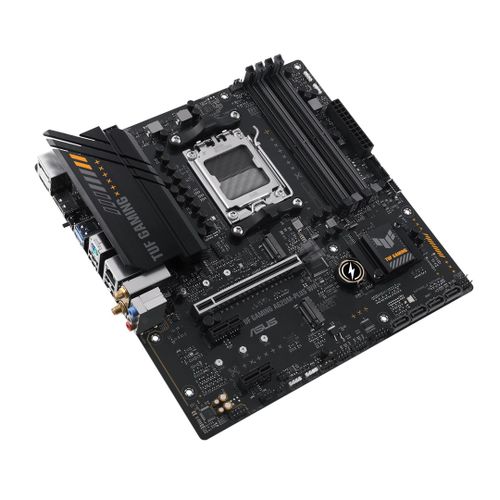

ASUS TUF GAMING A620M-PLUS WIFI AMD A620 Socket AM5 micro ATX
ASUS TUF GAMING A620M-PLUS WIFI, AMD, Socket AM5, AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen, DDR5-SDRAM, 128 GB, Dual-channel
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ASUS |
| Product code | 189226675 |
| EAN | 04711387164266 |
| Manufacturer part number | 90MB1F00-M0EAY0 |
| Category | Motherboards |
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Performance | |
|---|---|
| Compatible processor series | AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| ECC | Y |
| Non-ECC | Y |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Unbuffered memory | Y |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| RAID support | Y |
| RAID levels | 0, 1, 10 |
| Storage | |
|---|---|
| Number of HDDs supported | 4 |
| Features | |
|---|---|
| Number of storage drives supported | 6 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620 |
| Audio output channels | 7.1 channels |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Y |
| Front panel audio connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Y |
| Number of COM connectors | 1 |
| 12V power connector | Y |
| RGB LED pin header | Y |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Y |
| Rear panel I/O ports | |
|---|---|
| PS/2 ports quantity | 1 |
| Network | |
|---|---|
| Wi-Fi | Y |
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Y |
| Bluetooth version | 5.3 |
| Design | |
|---|---|
| Component for | PC |
| Cooling type | Passive |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
|---|---|
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Weight & dimensions | |
|---|---|
| Package weight | 920 g |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 50 mm |
| Weight | 800 g |
