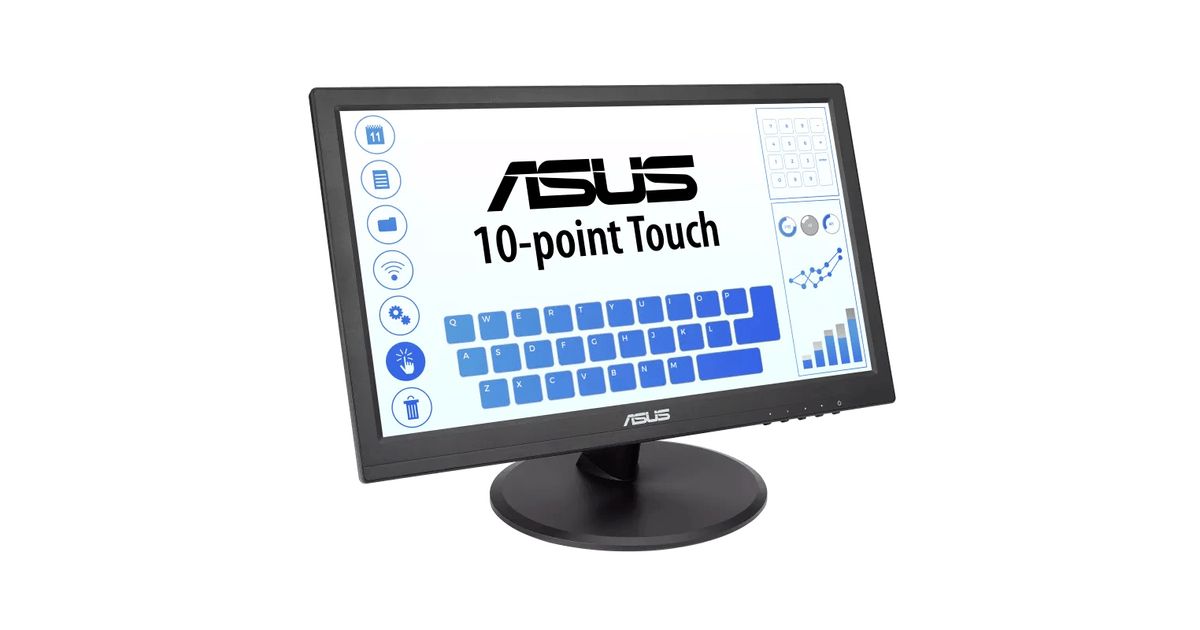

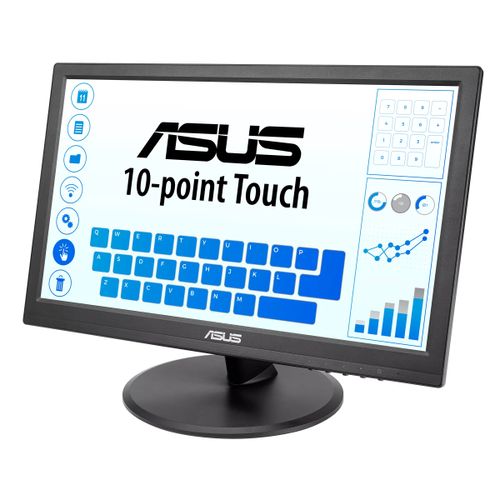

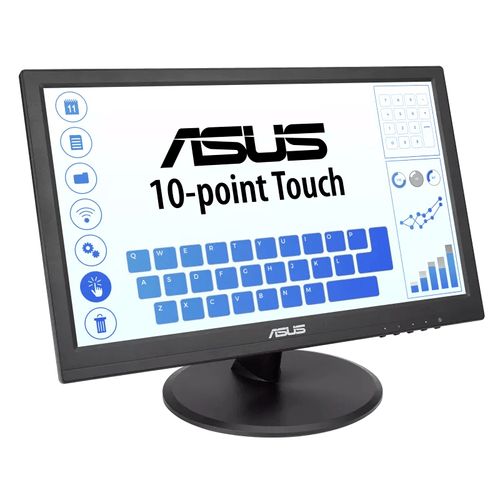

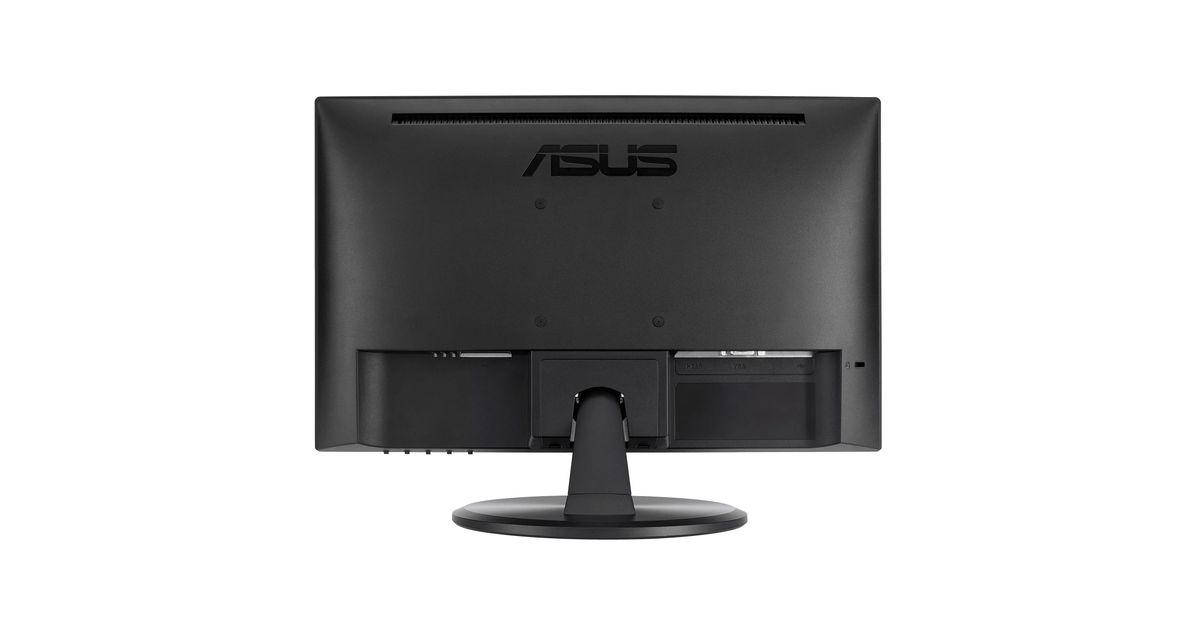

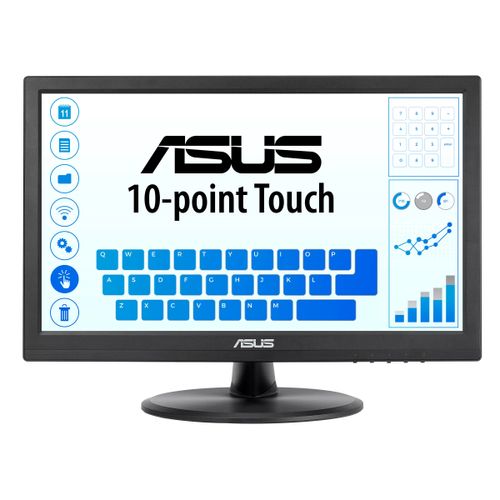

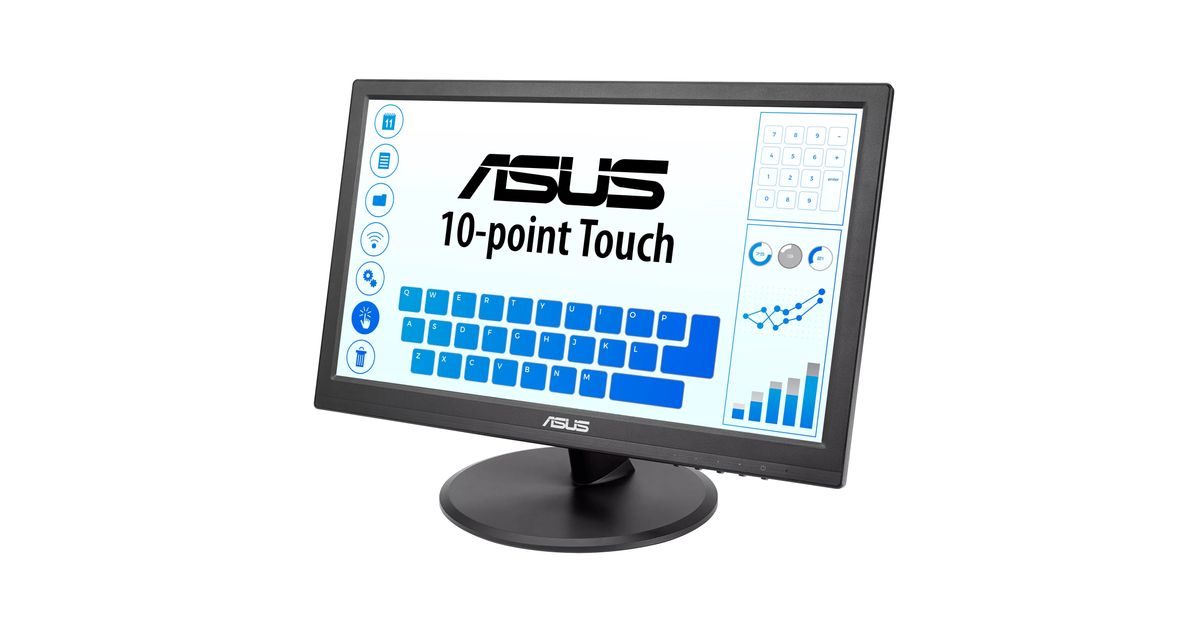

ASUS VT168HR 39.6 cm (15.6") 1366 x 768 pixels WXGA LED Touchscreen Black
ASUS VT168HR, 39.6 cm (15.6"), 1366 x 768 pixels, WXGA, LED, 5 ms, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ASUS |
| Product code | 216786557 |
| EAN | 04711081388258 |
| Manufacturer part number | UPASU016XS168HR |
| Category | Monitors |
| Display | |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Y |
| HD type | WXGA |
| Panel type | TN |
| Screen shape | Flat |
| Contrast ratio (typical) | 400:1 |
| Maximum refresh rate | 60 Hz |
| Display number of colours | 262144 colours |
| Touch technology | Multi-touch |
| Response time | 5 ms |
| Anti-glare screen | Y |
| Contrast ratio (dynamic) | 100000000:1 |
| Viewing angle, horizontal | 90° |
| Viewing angle, vertical | 60° |
| Pixel pitch | 0.252 x 0.252 mm |
| Display brightness | 220 cd/m² |
| LED backlight | Y |
| Display viewable area (HxV) | 344.23 x 193.54 mm |
| Performance | |
|---|---|
| Touchscreen technology | Projected capacitive system |
| NVIDIA G-SYNC | N |
| AMD FreeSync | N |
| Cable lock slot | Y |
| Camera | |
|---|---|
| Built-in camera | N |
| Audio | |
|---|---|
| Built-in microphone | N |
| Design | |
|---|---|
| Product colour | Black |
| Cable lock slot type | Kensington |
| Ports & interfaces | |
|---|---|
| Built-in USB hub | Y |
| HDMI | Y |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Features | |
|---|---|
| HDCP | Y |
| VESA mounting | Y |
| Panel mounting interface | 75 x 75 mm |
| Wall mountable | Y |
| Harmonized System (HS) code | 85285210 |
| Ergonomics | |
|---|---|
| Height adjustment | N |
| Tiltable | Y |
| Tilt angle range | -5 - 30° |
| Power | |
|---|---|
| Power consumption (typical) | 8 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Packaging content | |
|---|---|
| Stand included | Y |
| Cables included | AC, HDMI, USB Type-A to USB Type-B, VGA |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 377.8 mm |
| Depth (with stand) | 189.4 mm |
| Height (with stand) | 280.7 mm |
| Weight (with stand) | 1.51 kg |
| Width (without stand) | 37.8 cm |
| Depth (without stand) | 4.4 cm |
| Height (without stand) | 23.6 cm |
| Package weight | 2.93 kg |
| Packaging data | |
|---|---|
| Package width | 433.8 mm |
| Package depth | 122 mm |
| Package height | 349.7 mm |
Product Description
10-Point Multi-touch – An Incredibly Intuitive Touch Experience
The ASUS VT168HR touchscreen monitor combines 10-point multi-touch capability with superb image quality, flexible connectivity and great ergonomics. The precise and accurate multi-touch display — allowing up to 10 simultaneous touches — is optimized for use with Windows 10 , allowing you to work smarter and more efficiently.
Windows 10 compatible
VT168HR has passed the tests and been confirmed that it has best compatibility and reliability with Windows10 operating system. Ensuring home and business users of Microsoft’s new operating system can benefit from ASUS Touch Monitor.
The Touchscreen Monitor That Gives You Much More
ASUS Splendid Video Intelligence Technology employs a color engine with eight preset modes. These allow you to adjust your display easily for the best color accuracy and image fidelity, depending on what kind of content is being displayed. You can access the presets via a designated hotkey.
Perfect Comfort and Flexibility for Home and Office
Designed With You in Mind
VT168HR has multiple video and peripheral connectors, including VGA and HDMI, making it suitable for use anywhere, either in the home or at the office.
VT168HR features an elegant circular base with an ergonomically-designed tilting stand that lets you choose the ideal viewing position. The monitor is also VESA mount-compatible, making it easy to mount on a wall or monitor arm. Advanced power-saving features ensure low energy costs and maximum reliability, and it meets stringent environmental standards including RoHS, ENERGY STAR and TCO.
Protect your eyes with ASUS Eye Care technology
VT168HR has undergone stringent performance tests and is awarded Flicker-free and Low Blue Light certifications by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services, toshow display quality with clear image and prevent users suffering from eye strain and fatigue.
Ultra-low Blue Light Monitor
The TUV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light, and you can easily access its four different filter settings via a hotkey. VT168HR has undergone stringent performance tests and has been certified by TUV Rheinland laboratories, a global provider of technical, safety, and certification services, to be flicker-free and to emit low blue light levels
Flicker-free Technology
It's time to say goodbye to those tired, strained eyes. VT168HR features TUV Rheinland-certified ASUS Flicker-Free technology to reduce flicker for a comfortable viewing experience. This technology helps minimize instances of eyestrain and other damaging ailments, especially when you spend long, countless hours in front of a display watching favorite videos.
The ASUS VT168HR touchscreen monitor combines 10-point multi-touch capability with superb image quality, flexible connectivity and great ergonomics. The precise and accurate multi-touch display — allowing up to 10 simultaneous touches — is optimized for use with Windows 10 , allowing you to work smarter and more efficiently.
Windows 10 compatible
VT168HR has passed the tests and been confirmed that it has best compatibility and reliability with Windows10 operating system. Ensuring home and business users of Microsoft’s new operating system can benefit from ASUS Touch Monitor.
The Touchscreen Monitor That Gives You Much More
ASUS Splendid Video Intelligence Technology employs a color engine with eight preset modes. These allow you to adjust your display easily for the best color accuracy and image fidelity, depending on what kind of content is being displayed. You can access the presets via a designated hotkey.
Perfect Comfort and Flexibility for Home and Office
Designed With You in Mind
VT168HR has multiple video and peripheral connectors, including VGA and HDMI, making it suitable for use anywhere, either in the home or at the office.
VT168HR features an elegant circular base with an ergonomically-designed tilting stand that lets you choose the ideal viewing position. The monitor is also VESA mount-compatible, making it easy to mount on a wall or monitor arm. Advanced power-saving features ensure low energy costs and maximum reliability, and it meets stringent environmental standards including RoHS, ENERGY STAR and TCO.
Protect your eyes with ASUS Eye Care technology
VT168HR has undergone stringent performance tests and is awarded Flicker-free and Low Blue Light certifications by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services, toshow display quality with clear image and prevent users suffering from eye strain and fatigue.
Ultra-low Blue Light Monitor
The TUV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light, and you can easily access its four different filter settings via a hotkey. VT168HR has undergone stringent performance tests and has been certified by TUV Rheinland laboratories, a global provider of technical, safety, and certification services, to be flicker-free and to emit low blue light levels
Flicker-free Technology
It's time to say goodbye to those tired, strained eyes. VT168HR features TUV Rheinland-certified ASUS Flicker-Free technology to reduce flicker for a comfortable viewing experience. This technology helps minimize instances of eyestrain and other damaging ailments, especially when you spend long, countless hours in front of a display watching favorite videos.
