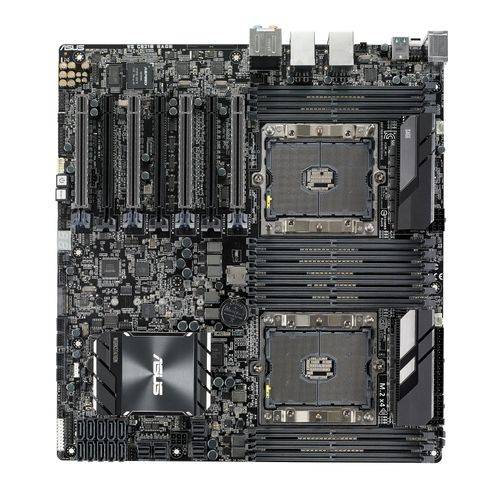

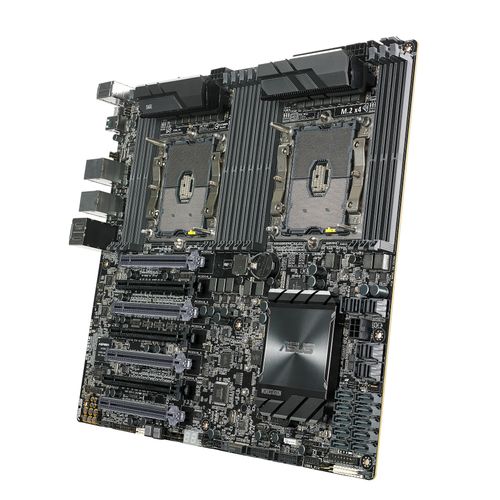

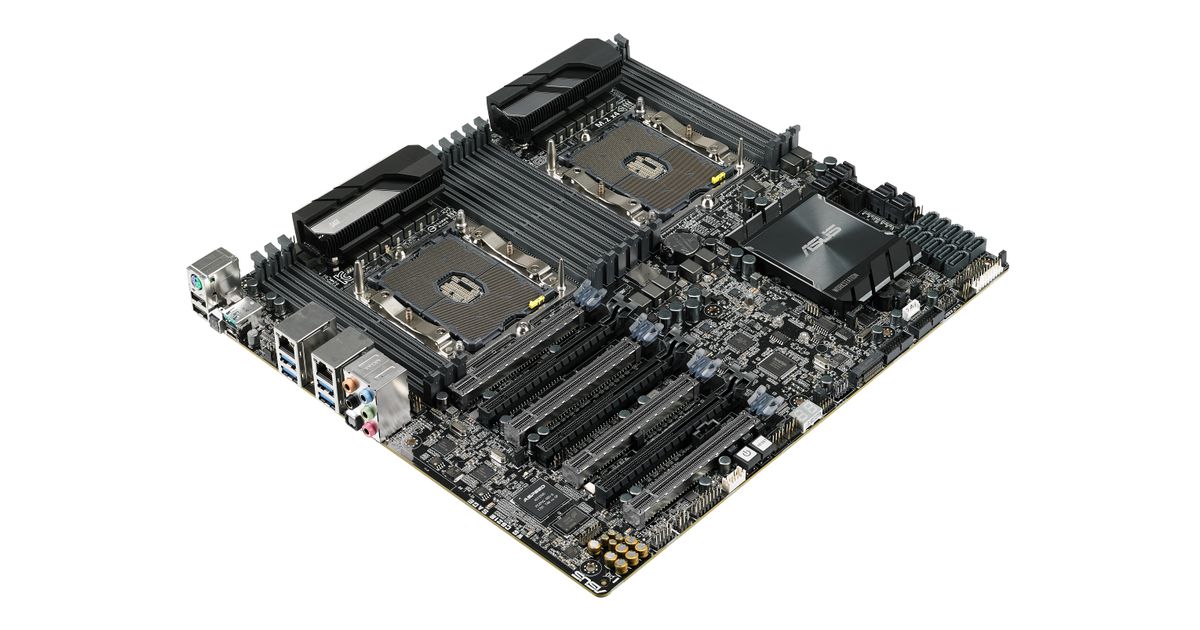

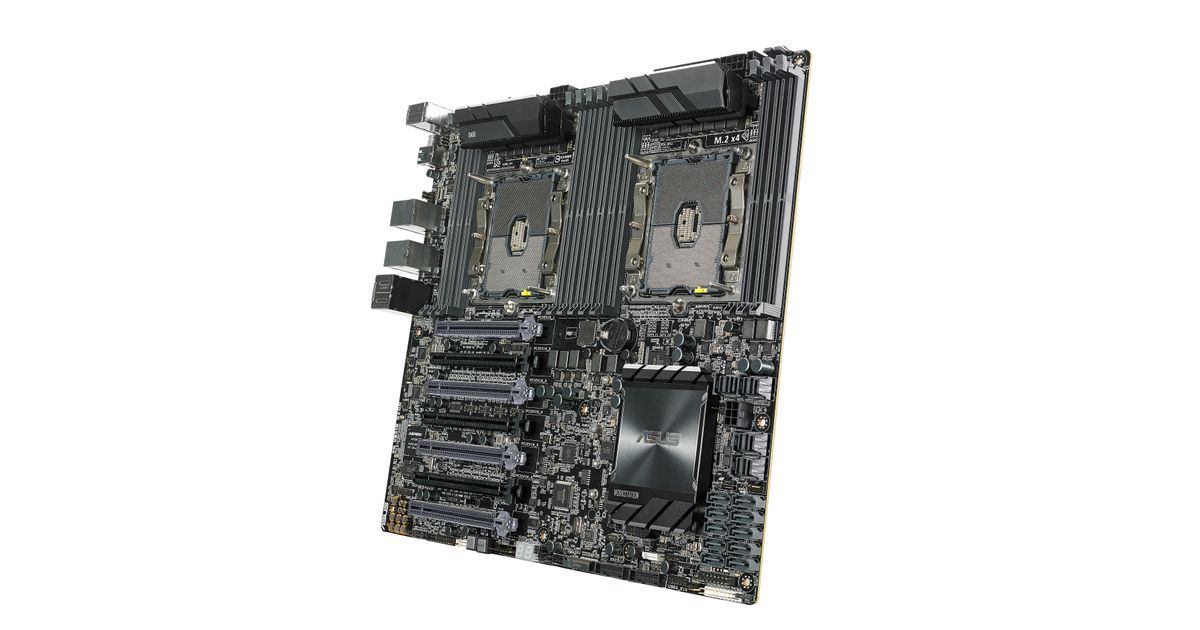

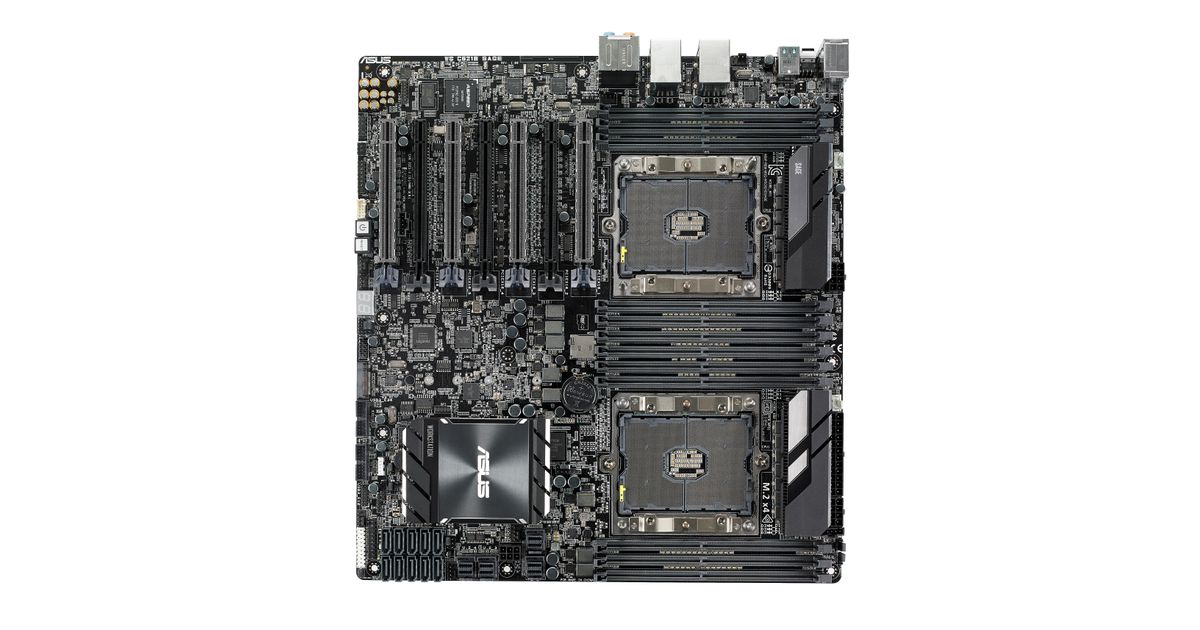

ASUS WS C621E SAGE Intel® C621 LGA 3647 (Socket P) EEB
ASUS WS C621E SAGE, Intel, LGA 3647 (Socket P), Intel® Xeon®, DDR4-SDRAM, 768 GB, DIMM
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ASUS |
| Product code | 16469116 |
| EAN | 00889349910375 |
| Manufacturer part number | 90SW0020-M0EAY0 |
| Category | Motherboards |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 3647 (Socket P) |
| Performance | |
|---|---|
| Compatible processor series | Intel® Xeon® |
| Power source type | ATX |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 12 |
| Maximum internal memory | 768 GB |
| Memory slots type | DIMM |
| Supported memory clock speeds | 2400,2666 MHz |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA III, U.2 |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | 4-Way CrossFireX, 4-Way SLI |
| Graphics adapter family | ASPEED |
| Graphics adapter | AST2500 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 10 |
| Front panel audio connector | Y |
| Number of EATX power connectors | 4 |
| CPU fan connector | Y |
| Number of chassis fan connectors | 7 |
| Number of COM connectors | 1 |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 4 |
| Supported RDIMM clock speeds | 2400,2666 MHz |
| VGA connectors | 1 |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| S/PDIF out port | Y |
| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Design | |
|---|---|
| Component for | PC |
| Features | |
|---|---|
| Motherboard form factor | EEB |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® C621 |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek S1220A |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 7 |
| Number of M.2 (M) slots | 1 |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
| Height | 366 mm |
| Weight | 2.4 kg |
Product Description
Extreme Power and Performance
Up to 4-way multiple-graphic cards
The Intel® C621 chipset-based dual socket workstation motherboard features on-demand NVIDIA® SLI™ and AMD® CrossFireX™ technology.
ASUS WS C621E SAGE accommodates up to four dual-width graphic cards with a four true PCIe Gen3 x16 link to unleash maximum graphic performance. With support for up to 4-way NVIDIA® SLI™, AMD CrossFireX™, and 2-Way NVIDIA Quadro® SLI™, WS C621E SAGE is an excellent choice for content creators, mechanical or architectural engineers, and anyone with processing-intensive workloads.
Extraordinary performance with dual Intel® Xeon® CPU overclocking
Dual Intel® Xeon® CPU overclocking, pushes the power processing power beyond the extreme
ASUS WS C621E SAGE breaks performance barriers, giving you the capability to overclock dual Xeon® CPUs. With its unique BIOS mechanism dedicated to boosting CPU performance, WS C621E SAGE can deliver incredible system speed.
Expandable and Scalable
Supporting up to 12 DDR4 Error-correcting code memory (ECC Memory)
Keeps your system running at a brisk pace, even when running multiple hardware-intensive programs! ASUS WS C621E SAGE supports up to 12 DDR4 error-correcting code (ECC) memory to ensure fast and responsive system performance, even when running multiple RAM-intensive applications — such as video, audio and image editing applications — simultaneously.
Lightning-fast storage speed with NVMe PCIe SSD RAID 0 support
With support for multiple NVMe PCIe storage devices configured as a RAID 0 array, ASUS WS C621E SAGE lets you enjoy lightning-fast data transfers that are far beyond those provided by single drives.
Super-fast transfers at up to 32Gbps with onboard four U.2 and M.2
ASUS WS C621E SAGE is built with onboard M.2 and U.2 connectors to fit both 2.5-inch NVMe and M.2 SSDs. By using the maximum PCIe Gen3.0 x4 bandwidth of 32Gbps, WS C621E SAGE enables data transfer speeds that are up to 5.3X faster than traditional storage devices.
10Gb/s USB 3.1 Gen2 onboard
With backward-compatible USB 3.1 Gen2 Type-A and reversible USB 3.1 Gen2 Type-C ports, you'll experience ultimate connection flexibility and data-transfer speeds of up to 10Gb/s — twice as fast as USB 3.0 or USB 3.1 Gen1.
Exclusive audio features with Realtek® codec and unique design features for pristine and powerful audio
Not satisfied with a single storage device read/write speeds? Then join the fast lane and build a RAID 0 array using NVMe PCIe storage drives to enjoy data transfers at lightning speeds!
ASUS WS C621E SAGE has a unique audio codec designed in close collaboration with Realtek®. The Realtek® S1220A features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and an 113dB SNR for the line-in, providing pristine audio quality
Immersive headphone audio with DTS Headphone:X™
Offers 3D surround-sound technology for incredibly rich audio with all types of headphones.
