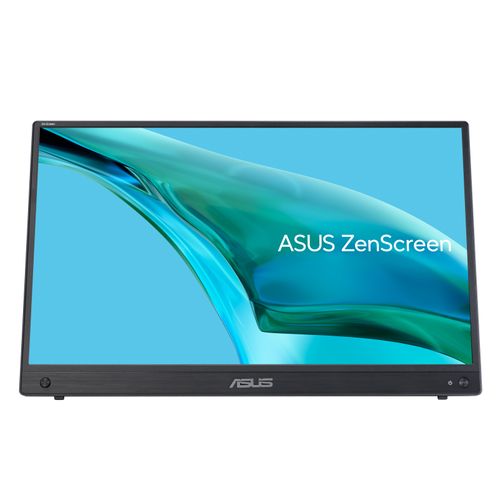

For illustrative purpose only

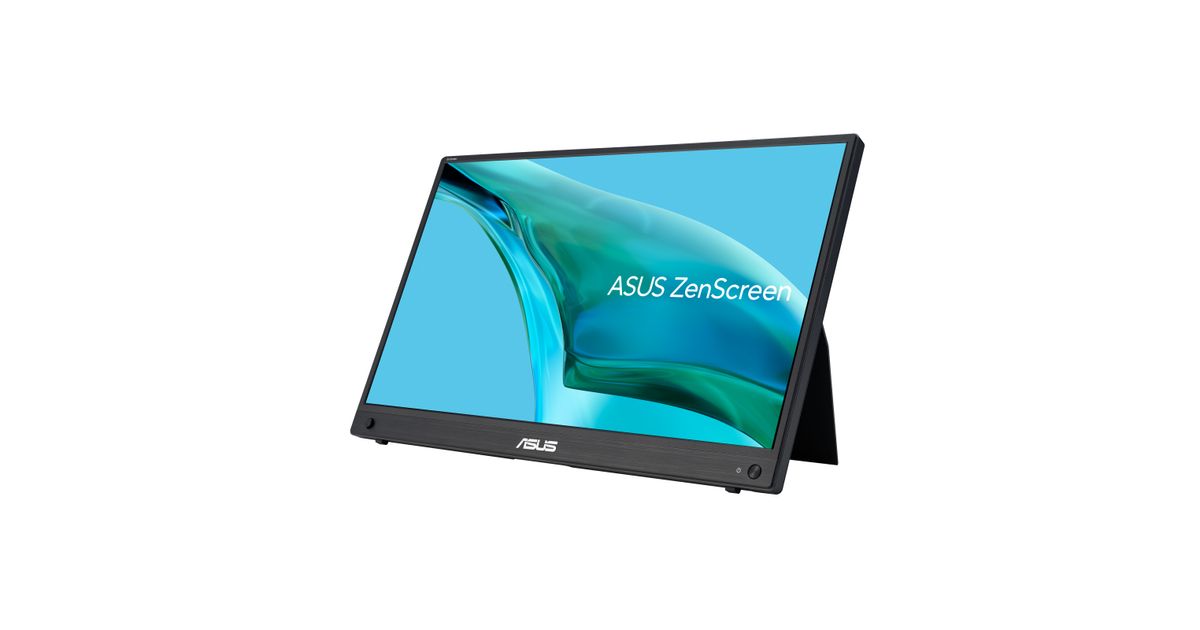

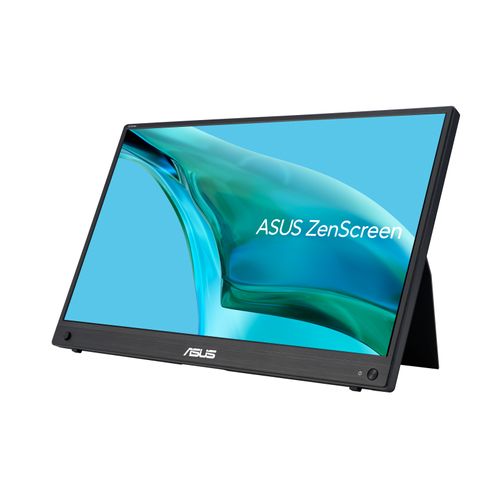

ASUS ZenScreen MB16AHG 39.6 cm (15.6") 1920 x 1080 pixels Full HD Black
ASUS ZenScreen MB16AHG, 39.6 cm (15.6"), 1920 x 1080 pixels, Full HD, 3 ms, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ASUS |
| Product code | 229215333 |
| EAN | 04711387005798 |
| Manufacturer part number | 90LM08U0-B01170 |
| Category | Monitors |
| Display | |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Touchscreen | N |
| HD type | Full HD |
| Panel type | IPS |
| Screen shape | Flat |
| Contrast ratio (typical) | 1200:1 |
| Maximum refresh rate | 144 Hz |
| Display number of colours | 16.7 million colours |
| Display brightness (typical) | 300 cd/m² |
| Response time | 3 ms |
| Anti-glare screen | Y |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.179 x 0.179 mm |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Digital horizontal frequency | 30 - 180 kHz |
| Digital vertical frequency | 60 - 144 Hz |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Design | |
|---|---|
| Backlight type | LED |
| Product colour | Black |
| Performance | |
|---|---|
| AMD FreeSync | Y |
| AMD FreeSync type | FreeSync Premium |
| Flicker-free technology | Y |
| Low Blue Light technology | Y |
| Game mode | Y |
| Brand-specific features | |
|---|---|
| Brand specific technologies | SPLENDID |
| Camera | |
|---|---|
| Built-in camera | N |
| Ports & interfaces | |
|---|---|
| Built-in USB hub | N |
| HDMI | Y |
| Headphone out | Y |
| USB Type-C downstream ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Y |
| Mini HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Features | |
|---|---|
| HDCP | Y |
| HDCP version | 1.4 |
| Ergonomics | |
|---|---|
| Height adjustment | N |
| Tilt angle range | 15 - 35° |
| Power | |
|---|---|
| Power consumption (typical) | 17 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
|---|---|
| Width (without stand) | 36 cm |
| Depth (without stand) | 1.2 cm |
| Height (without stand) | 22.7 cm |
| Weight (without stand) | 920 g |
| Package weight | 2.78 kg |
| Packaging data | |
|---|---|
| Package width | 485 mm |
| Package depth | 76 mm |
| Package height | 305 mm |
| Package type | Box |
Product Description
Extend your vision. Smooth your world
ASUS ZenScreen MB16AHG is a 15.6-inch IPS FHD portable monitor with fast 144Hz refresh rate and Adaptive-Sync(FreeSync™) technology to eliminate screen tearing and choppy frame rates for the smoother-than-ever experience. A fold-out adjustable stand enables a multitude of tilt angles to ensure comfortable viewing. Dual USB-C™ and mini-HDMI connectivity enables displaying content from a wide-range of devices, so you can enjoy an expansive view for the best work and entertainment experiences, wherever you go.
Fluid viewing experience with 144Hz Smooth Motion
ASUS ZenScreen MB16AHG with fast 144Hz refresh rate and Adaptive-Sync(FreeSync™) technology to eliminate screen tearing and choppy frame rates. It refreshes content on the display 2.4-time faster than the one with a standard 60Hz refresh rate, giving you more fluid animation in video, casual gaming, and day-to-day work, can all benefit from the smoother-than-ever experience. It is a great fit for augmenting what you can do with your laptop.
Sleek and portable design
ASUS ZenScreen MB16AHG is ideal for life on the road. This sleek portable display weighs 0.92kg and has a slim profile, so it fits easily in any travel bag and is ready for productivity, anytime and anywhere. A sleeve included in the package helps protect the MB16AHG from dust and scratches while traveling.
Flexible viewing positions
A fold-out kickstand props ASUS ZenScreen MB16AHG up on any flat surface and offers easy tilt adjustments to ensure comfortable viewing angles and working positions. In addition, a ¼ -inch threaded tripod socket at the rear lets you attach the monitor to a standard tripod* or table mount.
Automatic screen orientation
ASUS ZenScreen MB16AHG includes a G-sensor that can automatically sense its orientation and switch the display between landscape and portrait modes while connected to your mobile devices. Landscape mode is ideal for presentations and spreadsheets, while Portrait mode gives you a perfect view of items such as documents, books or websites.
Rich connectivity
ASUS ZenScreen MB16AHG includes a variety of I/O ports to cater to a range of devices. USB-C port allow audio-video signals transmission over a single cable. There’s also a mini HDMI port for a wired connection to various input sources.
*Make sure your device supports DP Alt mode.
ASUS Blue Light Filter
The TÜV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light. It's easy to access, intuitive and flexible with seamless adjustment (0 to Maximum) via the OSD menu. ASUS displays has undergone stringent performance tests and has been certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services.
ASUS ZenScreen MB16AHG is a 15.6-inch IPS FHD portable monitor with fast 144Hz refresh rate and Adaptive-Sync(FreeSync™) technology to eliminate screen tearing and choppy frame rates for the smoother-than-ever experience. A fold-out adjustable stand enables a multitude of tilt angles to ensure comfortable viewing. Dual USB-C™ and mini-HDMI connectivity enables displaying content from a wide-range of devices, so you can enjoy an expansive view for the best work and entertainment experiences, wherever you go.
Fluid viewing experience with 144Hz Smooth Motion
ASUS ZenScreen MB16AHG with fast 144Hz refresh rate and Adaptive-Sync(FreeSync™) technology to eliminate screen tearing and choppy frame rates. It refreshes content on the display 2.4-time faster than the one with a standard 60Hz refresh rate, giving you more fluid animation in video, casual gaming, and day-to-day work, can all benefit from the smoother-than-ever experience. It is a great fit for augmenting what you can do with your laptop.
Sleek and portable design
ASUS ZenScreen MB16AHG is ideal for life on the road. This sleek portable display weighs 0.92kg and has a slim profile, so it fits easily in any travel bag and is ready for productivity, anytime and anywhere. A sleeve included in the package helps protect the MB16AHG from dust and scratches while traveling.

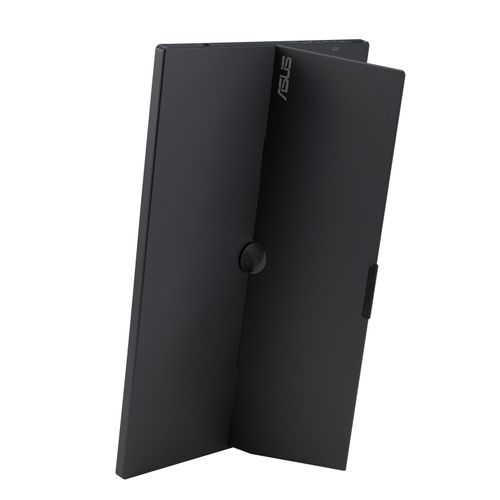

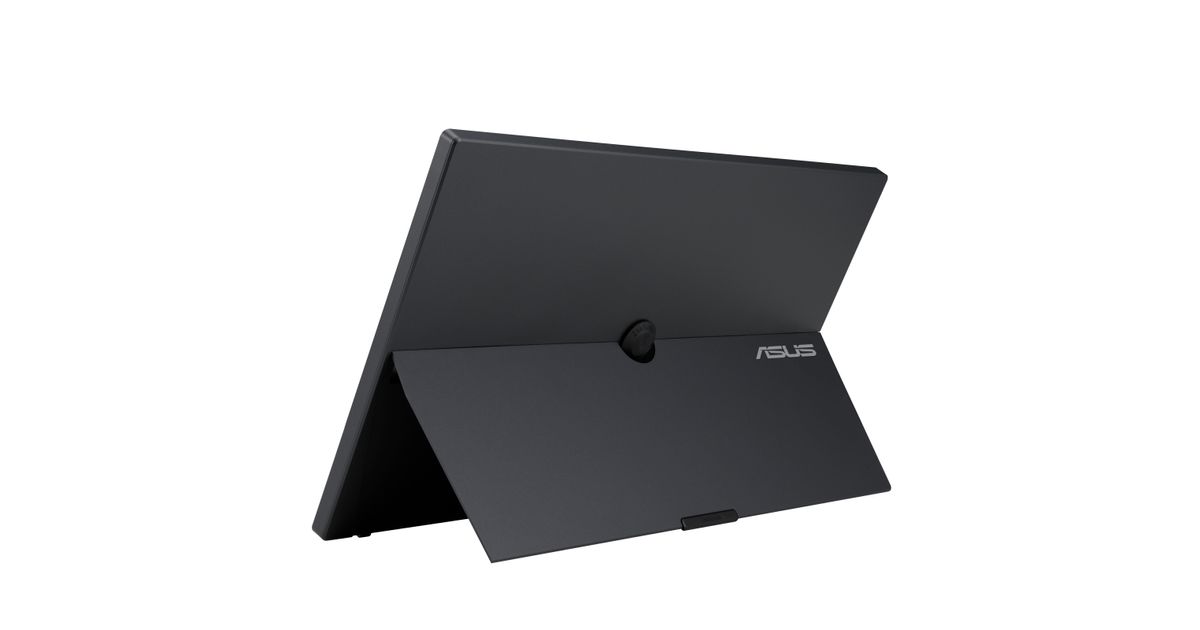

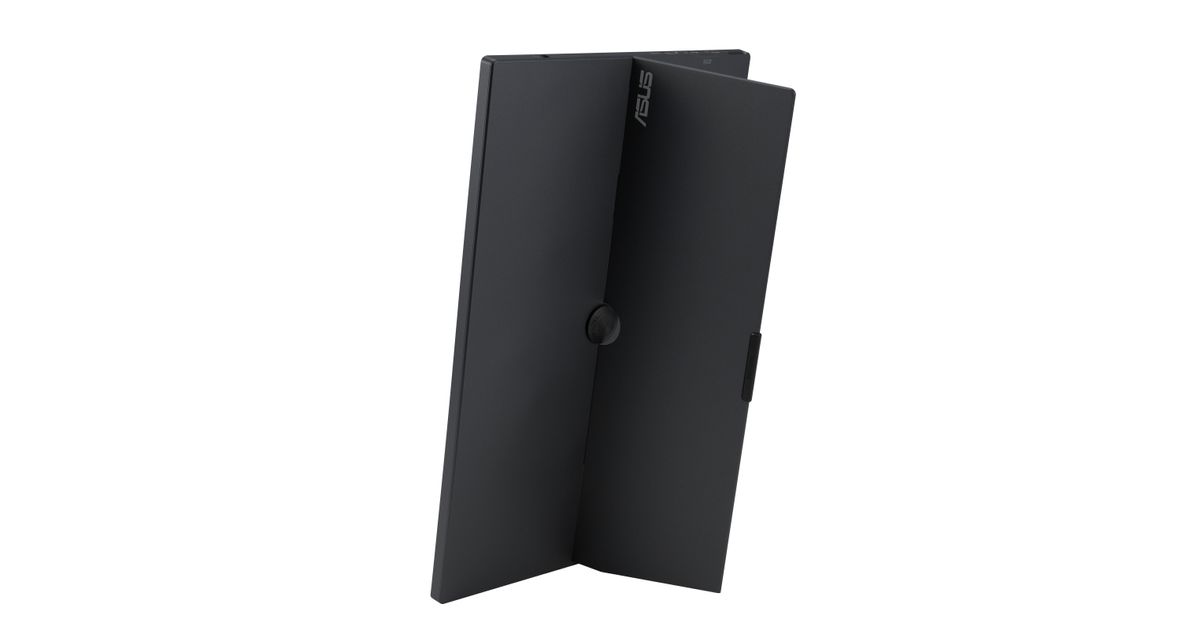

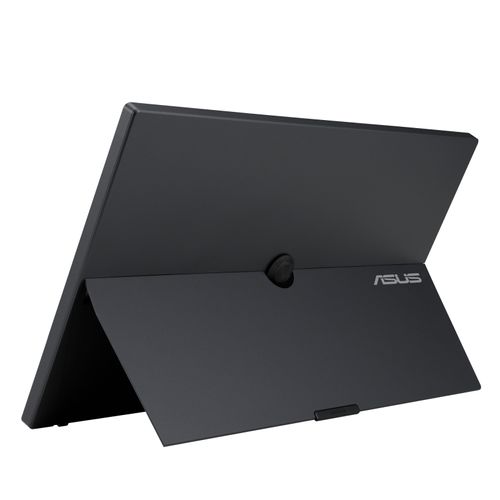

Flexible viewing positions
A fold-out kickstand props ASUS ZenScreen MB16AHG up on any flat surface and offers easy tilt adjustments to ensure comfortable viewing angles and working positions. In addition, a ¼ -inch threaded tripod socket at the rear lets you attach the monitor to a standard tripod* or table mount.
Automatic screen orientation
ASUS ZenScreen MB16AHG includes a G-sensor that can automatically sense its orientation and switch the display between landscape and portrait modes while connected to your mobile devices. Landscape mode is ideal for presentations and spreadsheets, while Portrait mode gives you a perfect view of items such as documents, books or websites.

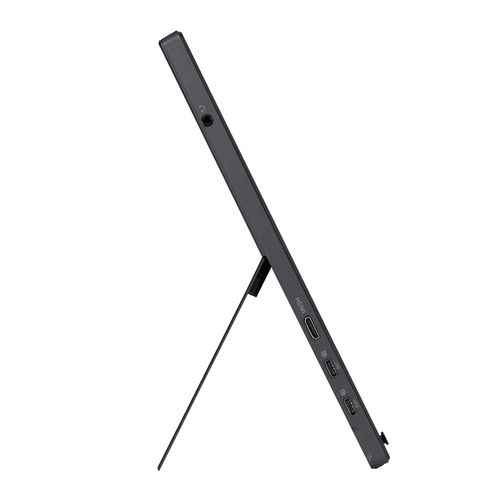

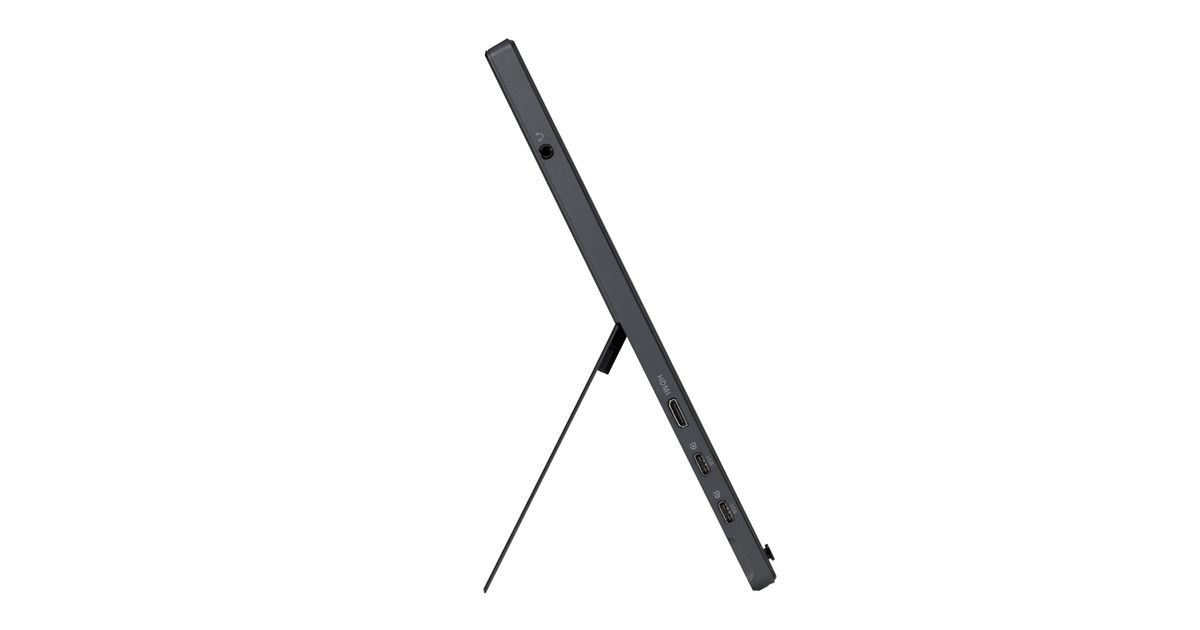

Rich connectivity
ASUS ZenScreen MB16AHG includes a variety of I/O ports to cater to a range of devices. USB-C port allow audio-video signals transmission over a single cable. There’s also a mini HDMI port for a wired connection to various input sources.
*Make sure your device supports DP Alt mode.
ASUS Blue Light Filter
The TÜV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light. It's easy to access, intuitive and flexible with seamless adjustment (0 to Maximum) via the OSD menu. ASUS displays has undergone stringent performance tests and has been certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services.
