ATEN 1-Local / Remote Shared Access Single Port 4K HDMI KVM over IP Switch
ATEN 1-Local / Remote Shared Access Single Port 4K HDMI KVM over IP Switch, 4096 x 2160 pixels, Ethernet LAN, 4K Ultra HD, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 229601663 |
| EAN | 04710469342288 |
| Manufacturer part number | RCMHD101U-AX-G |
| Category | VM switches and accessories |
| Ports & interfaces | |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| HDMI ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Console USB ports quantity | 2 |
| Console HDMI ports quantity | 1 |
| Serial port type | RJ-45 |
| Audio connections | Y |
| Headphone outputs | 2 |
| Number of microphone inputs | 2 |
| DC-in jack | Y |
| Ethernet LAN (RJ-45) ports | 2 |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 2 |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Display | |
|---|---|
| HD type | 4K Ultra HD |
| On Screen Display (OSD) | Y |
| Graphics | |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Performance | |
|---|---|
| Video bandwidth | 30 Hz |
| Number of users | 64 user(s) |
| Firmware upgradeable | Y |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power |
| Push button | Y |
| Built-in display | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Width | 150.5 mm |
| Depth | 200 mm |
| Height | 28.4 mm |
| Weight | 840 g |
| Package weight | 1.37 kg |
| Package net weight | 6.85 kg |
| Packaging data | |
|---|---|
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Package volume | 6796.04 cm³ |
| Rubber feet | Y |
| Packaging content | |
|---|---|
| Cables included | KVM, Mini-USB |
| Manual | Y |
| AC adapter included | Y |
| Rack mount kit | Y |
| Logistics data | |
|---|---|
| Master (outer) case width | 342 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 8.76 kg |
| Master (outer) case volume | 40776.26 cm³ |
| Country of origin | Taiwan |
Product Description
The RCMHD101U Single Port HDMI KVM over IP Switch is a KVM device exclusively designed for production line applications, which can grant the video, audio, mouse & keyboard, and virtual media access of a workstation at a production line to a local and remote consoles for convenient management. It also supports microphone and speakers for both local and remote consoles.
Integrated with ATEN's exclusive RCM API and an FPGA graphics processor supporting up to 4K DCI resolution (4096 x 2160 @ 30 Hz), the KVM over IP Switch delivers optimal OCR functionality and customizable system integration and automation. Additionally, by using the RCMMS (RCM Management Software), an intuitive, centralized management platform featuring Panel Array, users can manage, monitor, and control up to hundreds of RCM devices simultaneously.
For enhancing its production line application capabilities, RCMHD101U features USB / RS-232 touch panel support, OSD title-bar notification, and local console priority. Furthermore, with the ATEN Access Control Box (2XRT-0015G) installed, remote access to the RCMHD101U can be enabled or disabled on site as required.

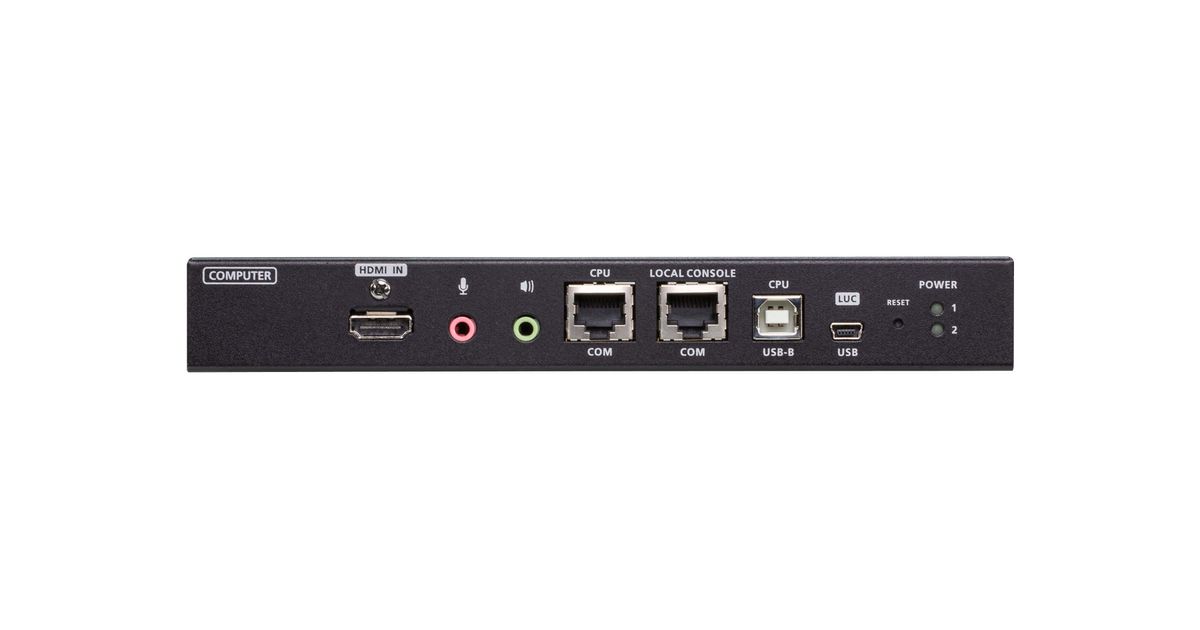

For user-friendly operation, a mini USB port on the front panel is designed as a Laptop USB Console (LUC) port. By simply connecting a laptop to the LUC port, users can access any computer connected to the switch for easy on-site management. That means no additional monitor, keyboard and mouse is required locally for routine maintenance. Additionally, the RCMHD101U Virtual Media function allows a user to perform diagnostic testing, file transfers, or apply OS / applications updates and patches from a remote console.
To ensure seamless connectivity, the RCMHD101U is equipped with dual LAN and dual power functionality for keeping operation at the production line smooth and efficient.
All in all, the RCMHD101U provides a complete system management across different facilities reduces the number of operators required on site to minimize space requirement while maximizing personnel efficiency. With its over-IP access eliminating the need to physically move legacy KVM solution to each malfunctioning unit, providing users with the ability to capture the device display screen data for data collection and direct OCR analysis, and using APIs for software integration applications, it is an outstanding solution for high-tech production lines requiring durable and reliable over-IP server management.
Integrated with ATEN's exclusive RCM API and an FPGA graphics processor supporting up to 4K DCI resolution (4096 x 2160 @ 30 Hz), the KVM over IP Switch delivers optimal OCR functionality and customizable system integration and automation. Additionally, by using the RCMMS (RCM Management Software), an intuitive, centralized management platform featuring Panel Array, users can manage, monitor, and control up to hundreds of RCM devices simultaneously.
For enhancing its production line application capabilities, RCMHD101U features USB / RS-232 touch panel support, OSD title-bar notification, and local console priority. Furthermore, with the ATEN Access Control Box (2XRT-0015G) installed, remote access to the RCMHD101U can be enabled or disabled on site as required.
For user-friendly operation, a mini USB port on the front panel is designed as a Laptop USB Console (LUC) port. By simply connecting a laptop to the LUC port, users can access any computer connected to the switch for easy on-site management. That means no additional monitor, keyboard and mouse is required locally for routine maintenance. Additionally, the RCMHD101U Virtual Media function allows a user to perform diagnostic testing, file transfers, or apply OS / applications updates and patches from a remote console.
To ensure seamless connectivity, the RCMHD101U is equipped with dual LAN and dual power functionality for keeping operation at the production line smooth and efficient.
All in all, the RCMHD101U provides a complete system management across different facilities reduces the number of operators required on site to minimize space requirement while maximizing personnel efficiency. With its over-IP access eliminating the need to physically move legacy KVM solution to each malfunctioning unit, providing users with the ability to capture the device display screen data for data collection and direct OCR analysis, and using APIs for software integration applications, it is an outstanding solution for high-tech production lines requiring durable and reliable over-IP server management.
