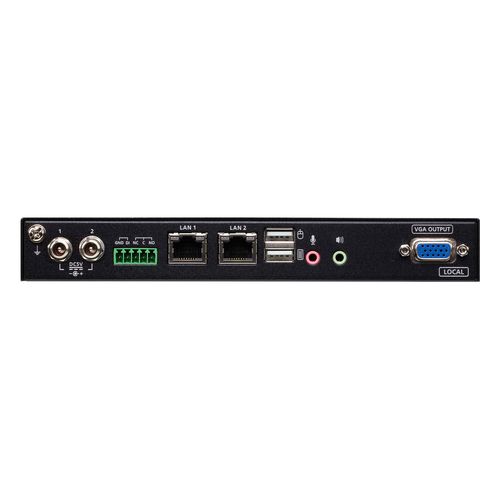

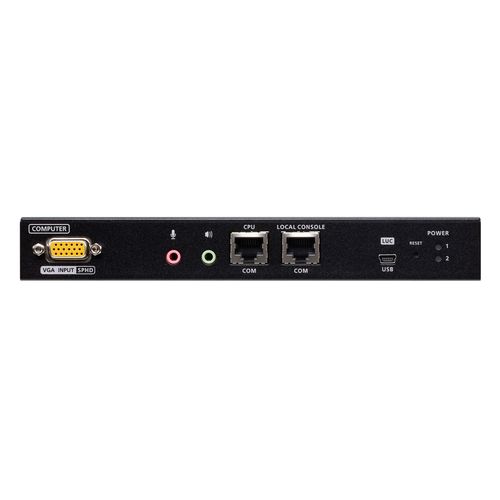

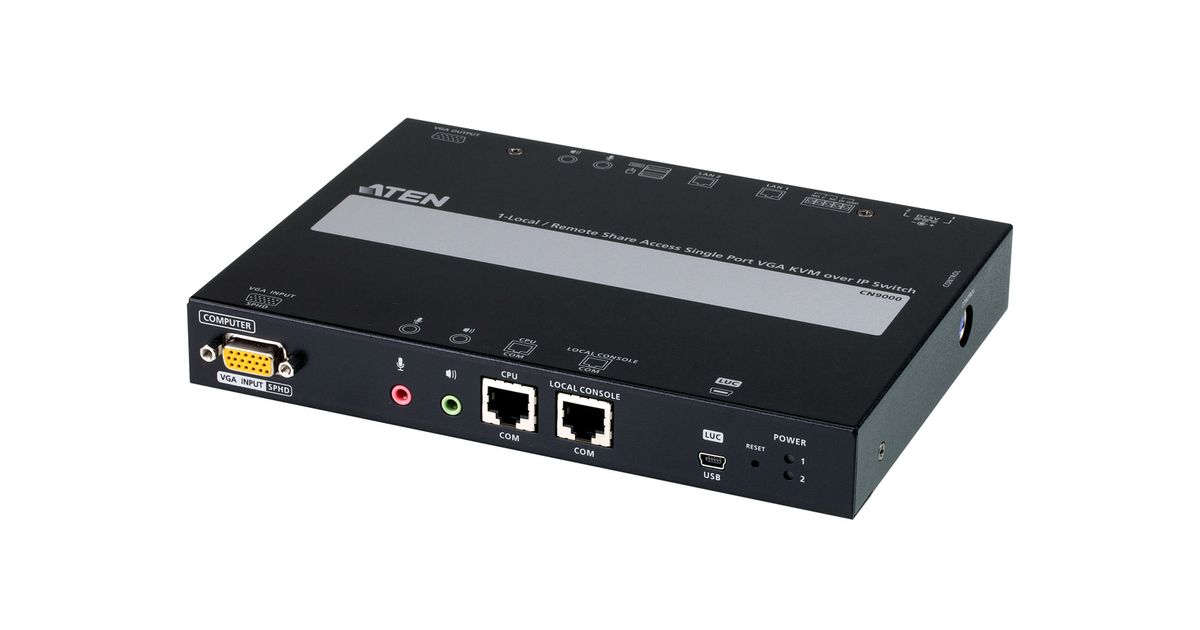

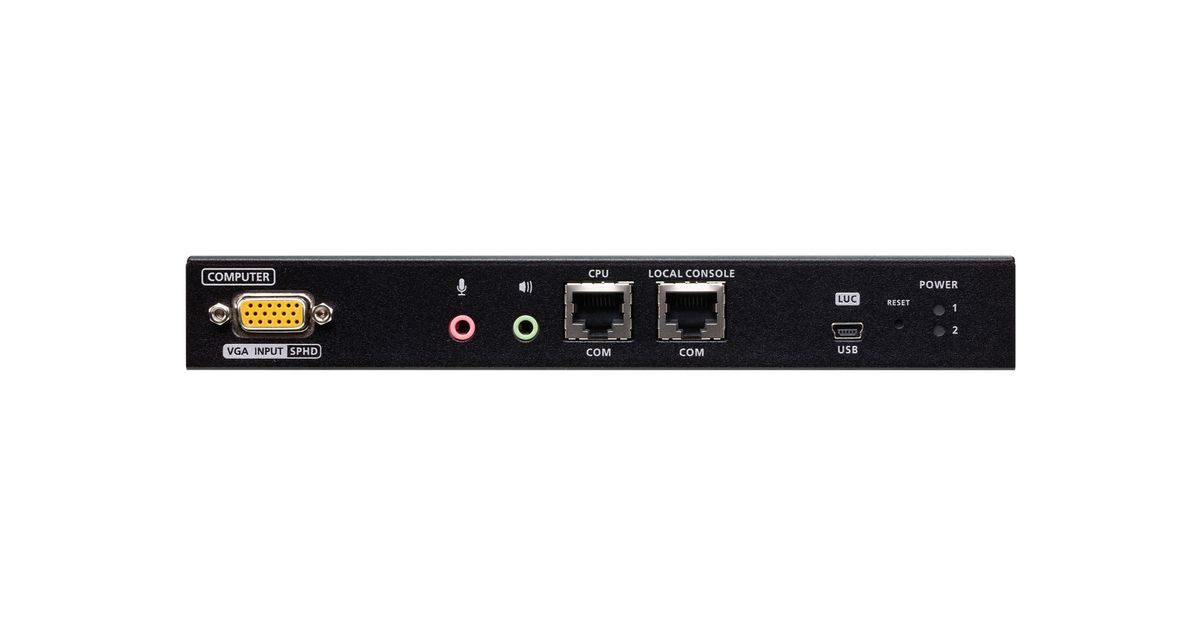

Aten 1-Local/Remote Share Access Single Port VGA KVM over IP Switch
Aten 1-Local/Remote Share Access Single Port VGA KVM over IP Switch, 1920 x 1200 pixels, Ethernet LAN, Full HD, 7.46 W, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 364876976 |
| EAN | 04710469340680 |
| Manufacturer part number | CN9000-AT-G |
| Category | VM switches and accessories |
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 1 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Console ports | 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity | 2 |
| Console USB ports quantity | 2 |
| Serial port type | RS-232 |
| Audio connections | Y |
| DC-in jack | Y |
| Ethernet LAN (RJ-45) ports | 2 |
| Features | |
|---|---|
| USB connector type | USB Type-A |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Display | |
|---|---|
| HD type | Full HD |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Design | |
|---|---|
| Rack mounting | N |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Y |
| Power | |
|---|---|
| Power source | AC |
| DC input voltage | 5 V |
| Power consumption (typical) | 7.46 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Width | 200 mm |
| Depth | 154.1 mm |
| Height | 28.5 mm |
| Weight | 1.26 kg |
| Package weight | 1.68 kg |
| Packaging data | |
|---|---|
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 6.3 kg |
| Master (outer) case width | 34.2 cm |
| Master (outer) case length | 51.2 cm |
| Master (outer) case height | 23.2 cm |
| Master (outer) case gross weight | 9.03 kg |
| Products per master (outer) case | 5 pc(s) |
Product Description
The CN9000 VGA KVM over IP Switch allows remote access and control of the video, audio and virtual media of a PC or workstation, featuring VGA high video resolution up to 1920 x 1200 @ 60Hz at both the local and remote consoles. Equipped with USB and PS/2 (keyboard and mouse) support, CN9000 is compatible not only with modern-day workstations, but also legacy systems and older generation servers.
1x CN9000 VGA KVM over IP Switch
1x KVM cable (VGA, PS/2, USB)
1x USB cable (USB Type-A to Mini-B)
1x power adapter
1x control terminal block
1x mounting kit
1x foot pad set
1x user instructions
1x CN9000 VGA KVM over IP Switch
1x KVM cable (VGA, PS/2, USB)
1x USB cable (USB Type-A to Mini-B)
1x power adapter
1x control terminal block
1x mounting kit
1x foot pad set
1x user instructions
