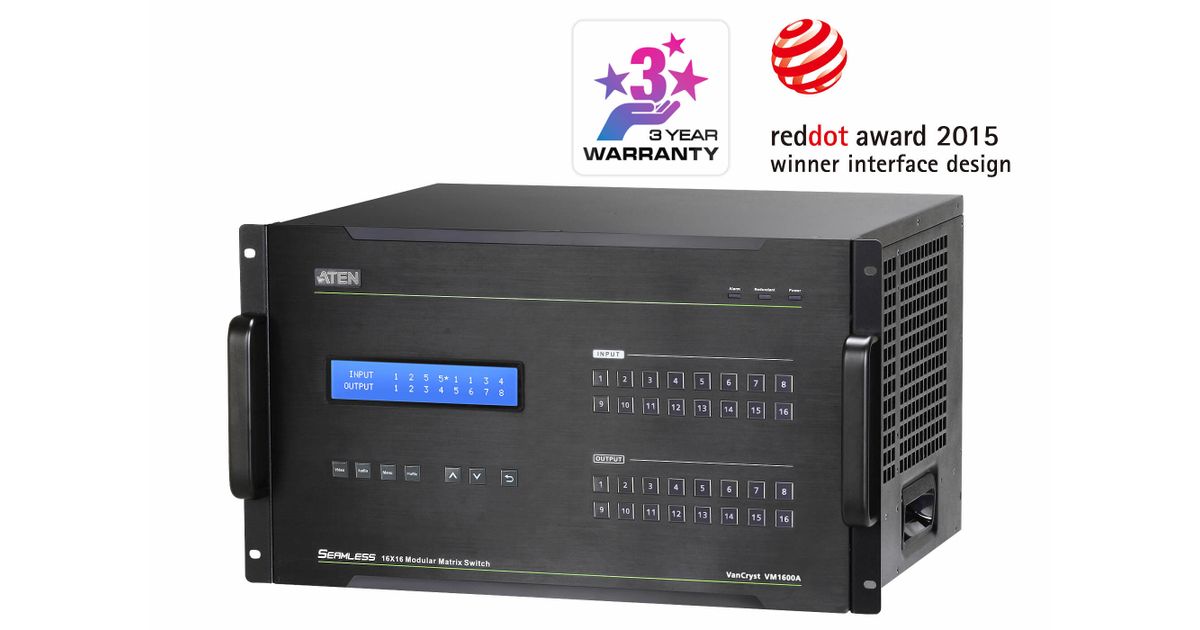

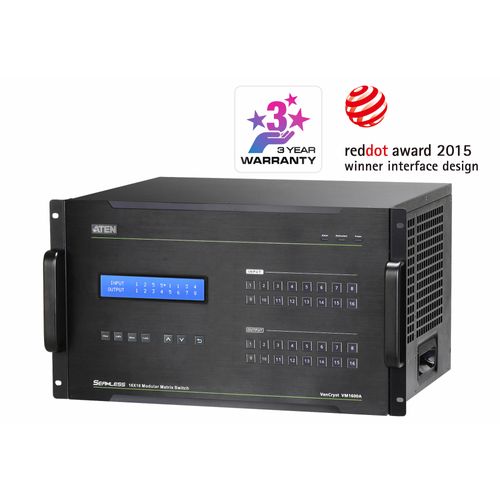

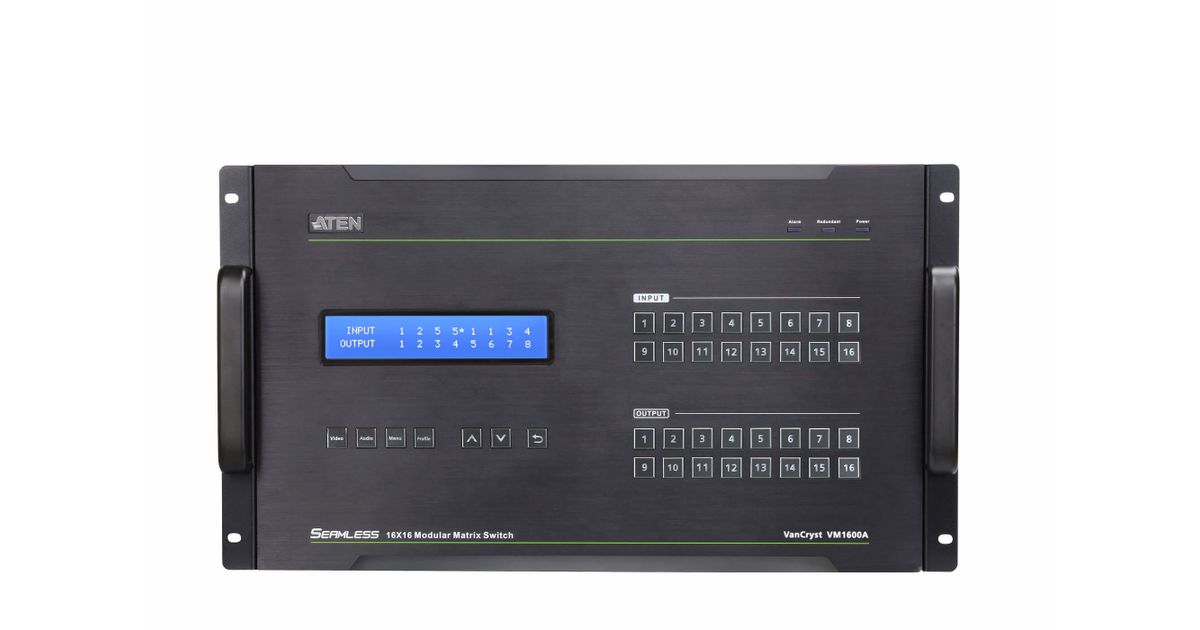

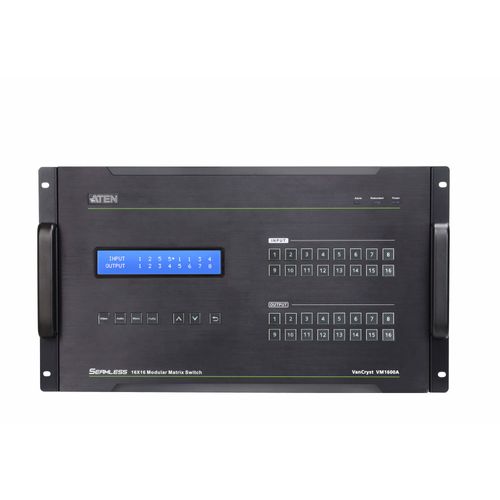

ATEN 16 x 16 Modular Matrix Switch
ATEN 16 x 16 Modular Matrix Switch, Modular AV matrix switchers, 15.2 Gbit/s, Black, Metal, 6U, 460 W
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 03118512 |
| EAN | 04719264646287 |
| Manufacturer part number | VM1600A-AT-G |
| Category | DJ and studio equipment |
| Design | |
|---|---|
| Product type | Modular AV matrix switchers |
| Housing material | Metal |
| Rack mounting | Y |
| Rack capacity | 6U |
| LED indicators | Y |
| Built-in display | Y |
| Features | |
|---|---|
| Data transfer rate | 15.2 Gbit/s |
| EDID management | Y |
| Housing colour | Black |
| Harmonized System (HS) code | 85299097 |
| Ports & interfaces | |
|---|---|
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
| Power | |
|---|---|
| Power consumption (max) | 460 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 6 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case gross weight | 18.3 kg |
| Master (outer) case length | 579 mm |
| Master (outer) case width | 518 mm |
| Master (outer) case height | 390 mm |
| Master (outer) case net weight | 17.6 kg |
| Weight & dimensions | |
|---|---|
| Width | 466.6 mm |
| Depth | 482 mm |
| Height | 265.9 mm |
| Weight | 17.6 kg |
| Package weight | 18.3 kg |
| Packaging data | |
|---|---|
| Package width | 518 mm |
| Package depth | 579 mm |
| Package height | 390 mm |
| Packaging content | |
|---|---|
| Cables included | AC |
Product Description

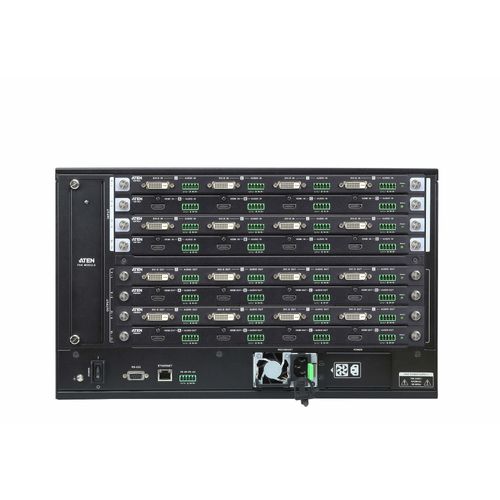

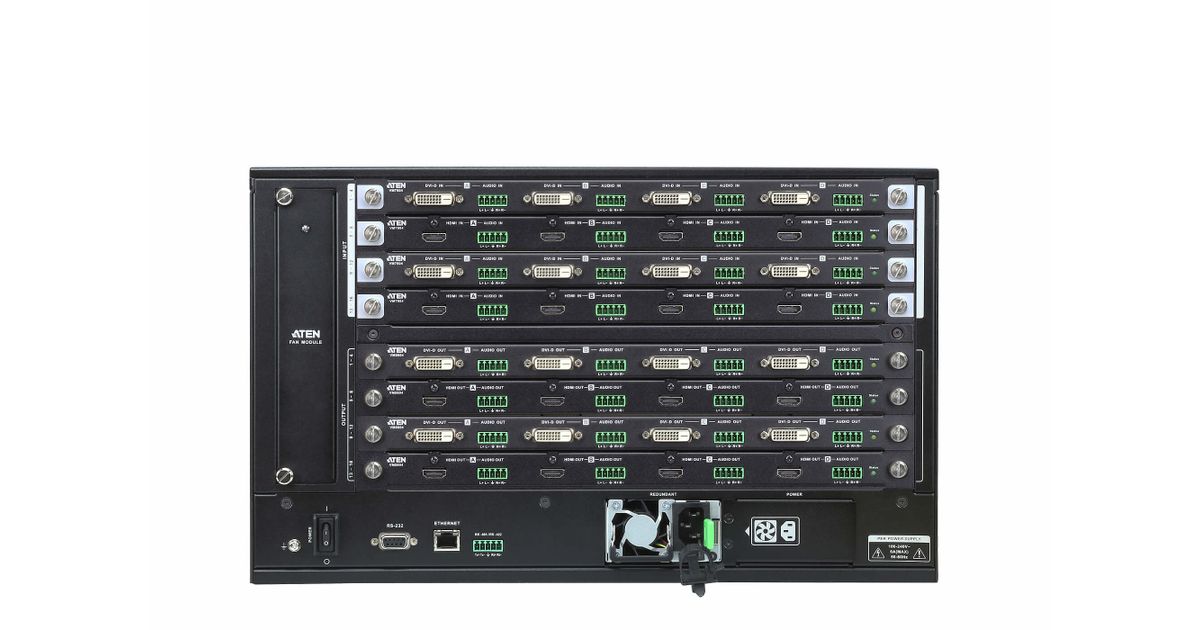

The ATEN Modular Matrix Solution Series comprises the VM1600A/VM3200 Modular Matrix Switch in tandem with a range of hot-swappable I/O boards. The solution offers real-time control and advanced access to manage 16/32 video sources and 16/32 displays simultaneously, through modular I/O boards in a single chassis. Empowered by ATEN Seamless Switch™ technology, the VM1600A/VM3200 video matrix switches incorporate a speed-progressive video switching function and a unique scaler that integrates seamlessly with video wall systems.
1x VM1600A Modular Matrix Switch
1x LIN2-418K-E12G Power Cord
1x Terminal Block connector
1x VM-FAN554 Fan Module (pluggable)
1x VM-PWR460 Power Module (pluggable)
1x User Instructions
1x VM1600A Modular Matrix Switch
1x LIN2-418K-E12G Power Cord
1x Terminal Block connector
1x VM-FAN554 Fan Module (pluggable)
1x VM-PWR460 Power Module (pluggable)
1x User Instructions
