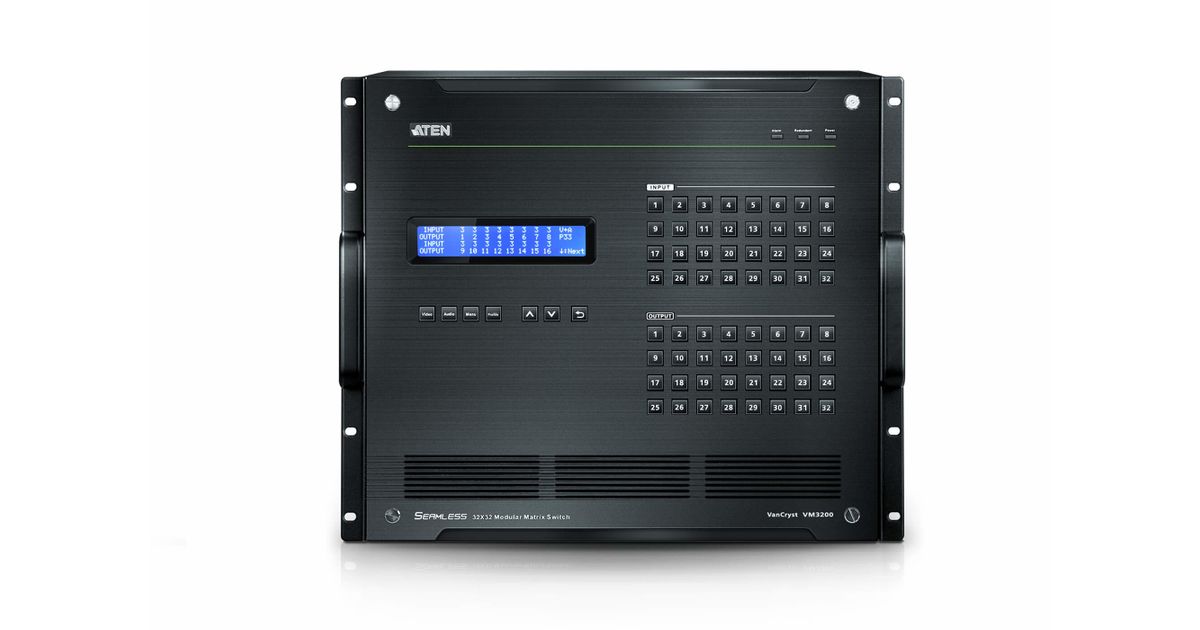

For illustrative purpose only
ATEN 32x32 Digital Modular Matrix – Chassis Only / 9U - High
ATEN 32x32 Digital Modular Matrix – Chassis Only / 9U - High, Scaling matrix switcher, 15.2 Gbit/s, 15.2 Gbit/s, Black, Metal, 9U
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 21823697 |
| EAN | 04719264644870 |
| Manufacturer part number | VM3200-AT-G |
| Category | VM switches and accessories |
| Design | |
|---|---|
| Product type | Scaling matrix switcher |
| Housing material | Metal |
| Rack mounting | Y |
| Rack capacity | 9U |
| Built-in display | Y |
| Features | |
|---|---|
| Data transfer rate | 15.2 Gbit/s |
| Bandwidth | 15.2 Gbit/s |
| Extended display identification data (EDID) | Y |
| EDID management | Y |
| Housing colour | Black |
| Ports & interfaces | |
|---|---|
| RJ-45 output ports | 1 |
| RS-232 ports | 1 |
| Power | |
|---|---|
| Power consumption (max) | 800 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case gross weight | 22.8 kg |
| Master (outer) case length | 57.9 cm |
| Master (outer) case width | 51.8 cm |
| Master (outer) case height | 52.6 cm |
| Master (outer) case net weight | 19.4 kg |
| Weight & dimensions | |
|---|---|
| Width | 471.9 mm |
| Depth | 482 mm |
| Height | 399 mm |
| Weight | 19.4 kg |
| Package weight | 22.8 kg |
| Packaging data | |
|---|---|
| Package width | 518 mm |
| Package depth | 579 mm |
| Package height | 526 mm |
| Packaging content | |
|---|---|
| Cables included | AC |
Product Description
The VM3200 Modular Matrix Switch offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3200 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers simply by pressing front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors.
1x VM3200 32 x 32 Modular Matrix Switch
1x Power Module
1x LIN2-418K-E12G Power Cord
1x JCNT-3301-105G Terminal Block connector
1x VM-FAN556 Fan Module (pluggable)
1x VM-PWR-800 Power Module (pluggable)
1x User Instructions
1x VM3200 32 x 32 Modular Matrix Switch
1x Power Module
1x LIN2-418K-E12G Power Cord
1x JCNT-3301-105G Terminal Block connector
1x VM-FAN556 Fan Module (pluggable)
1x VM-PWR-800 Power Module (pluggable)
1x User Instructions
