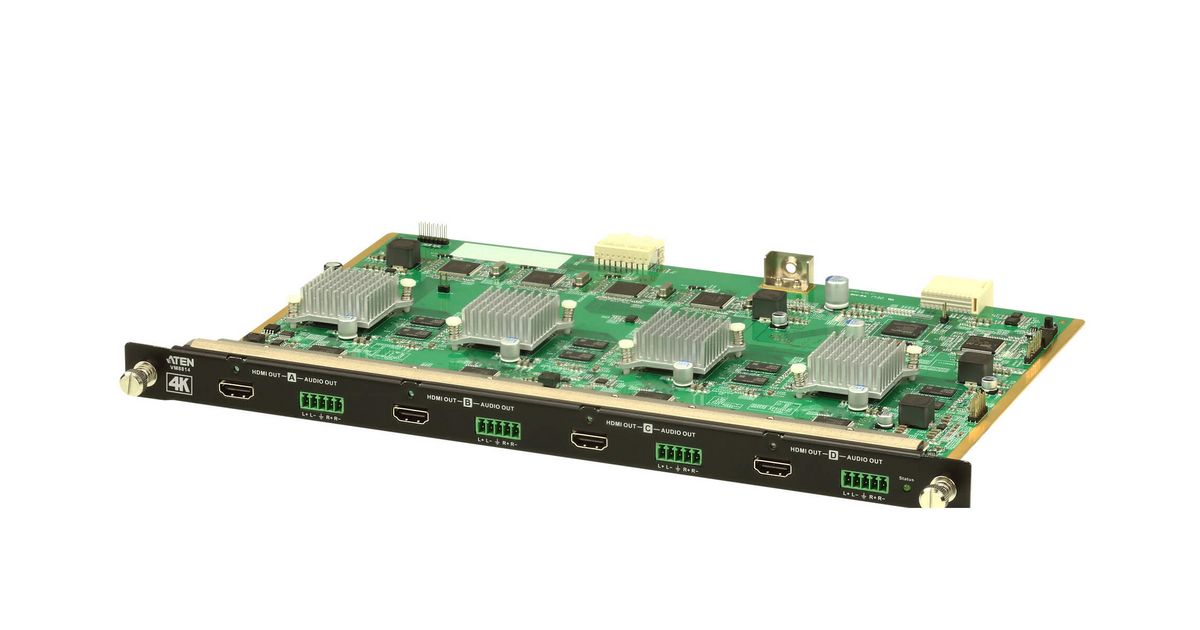

ATEN 4-Port 4K HDMI Output Board With Scaler
ATEN 4-Port 4K HDMI Output Board With Scaler, HDMI, Metal, Green, Grey, 15 m, 3840 x 2160, 4096 x 2160, 480p, 720p, 1080i, 1080p
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 03118516 |
| EAN | 00672792008153 |
| Manufacturer part number | VM8814-AT |
| Category | DJ and studio equipment |
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| Number of HDMI outputs | 4 |
| Features | |
|---|---|
| Material | Metal |
| HDCP | Y |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Supported video modes | 480p, 720p, 1080i, 1080p |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Output impedance | 100 Ω |
| HDCP version | 2.2 |
| Design | |
|---|---|
| Product colour | Green, Grey |
| LED indicators | Y |
| Network | |
|---|---|
| Maximum operating distance | 15 m |
| Graphics | |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Audio | |
|---|---|
| Built-in speaker(s) | N |
| Other features | |
|---|---|
| 3D | Y |
| Display | |
|---|---|
| HD type | 4K Ultra HD |
| Performance | |
|---|---|
| Heat dissipation | 94 BTU/h |
| Power | |
|---|---|
| Power consumption (typical) | 20 W |
| Weight & dimensions | |
|---|---|
| Width | 238 mm |
| Depth | 23.3 mm |
| Height | 352 mm |
| Weight | 1.02 kg |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
Product Description
The VM8814 is a 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI sources to 4 displays. In addition to the HDMI interface that carries digital A/V signals, the VM8814 is equipped with 4 stereo audio output ports that allow HDMI audio extraction.
Considering the need for fast video switching and resolution adaptation in video wall applications, the VM8814 supports Seamless Switch™ and EDID Expert™ that make real-time video switching possible, and contains a built-in 4K scaler that handles different video resolutions. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.
Considering the need for fast video switching and resolution adaptation in video wall applications, the VM8814 supports Seamless Switch™ and EDID Expert™ that make real-time video switching possible, and contains a built-in 4K scaler that handles different video resolutions. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.
