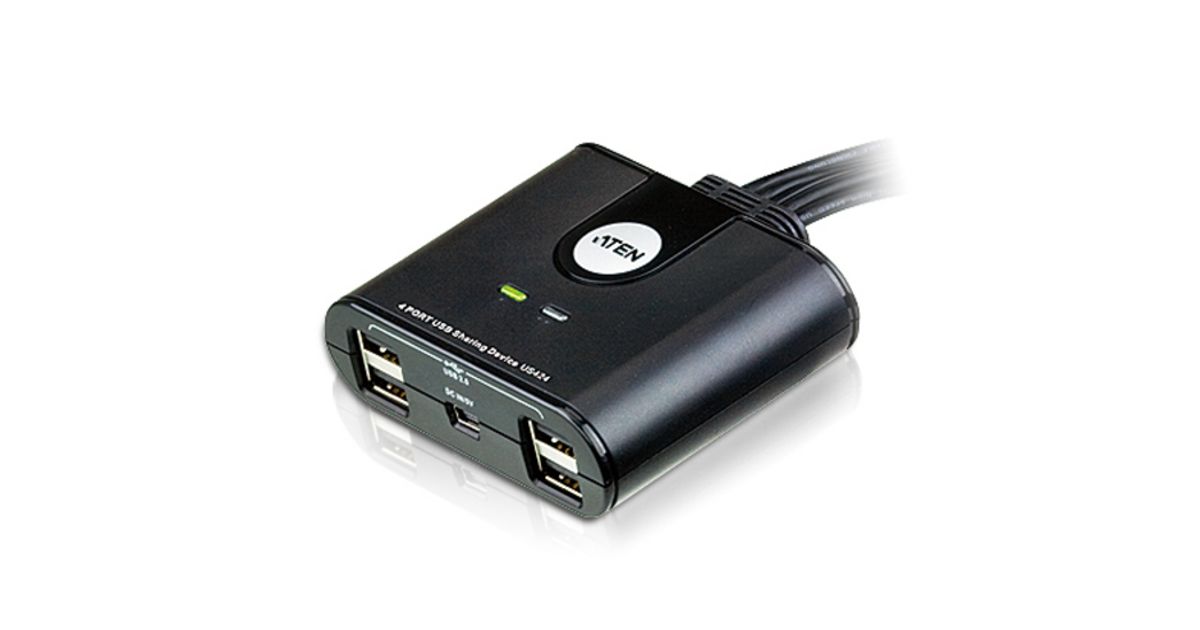

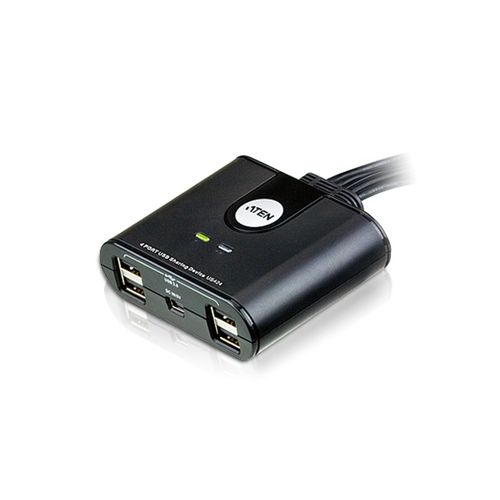

ATEN 4-Port USB 2.0 Peripheral Sharing Device
ATEN 4-Port USB 2.0 Peripheral Sharing Device, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 03118635 |
| EAN | 00672792003790 |
| Manufacturer part number | US424AT |
| Category | USB cables and adapters |
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| USB 2.0 Type-A hub ports quantity | 4 |
| Ports quantity | 4 |
| Keyboard | |
|---|---|
| USB hub | Y |
| Display | |
|---|---|
| HD type | Not supported |
| Design | |
|---|---|
| Product colour | Black |
| Built-in display | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Width | 66.5 mm |
| Depth | 82.4 mm |
| Height | 25.3 mm |
| Weight | 226 g |
| Package weight | 298 g |
| Packaging data | |
|---|---|
| Package width | 55 mm |
| Package depth | 155 mm |
| Package height | 223 mm |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 4.52 kg |
| Master (outer) case width | 328 mm |
| Master (outer) case length | 389 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 6.6 kg |
| Products per master (outer) case | 20 pc(s) |
| Features | |
|---|---|
| Harmonized System (HS) code | 85176200 |
Product Description
The US424 is a 4-port USB peripheral sharing device that enables 4 computers to share the use of 4 USB devices – a keyboard, mouse and up to two peripheral devices. It eliminates the added expense of having a separate USB keyboard, mouse and peripheral device(s) for each computer. The US424 all-in-one design allows for a neat and tidy installation – no need to connect 4 separate USB cables to the computer, thus eliminating cable clutter.
1x US424 4 x 4 USB 2.0 Peripheral Sharing Switch
1x US424 4 x 4 USB 2.0 Peripheral Sharing Switch
