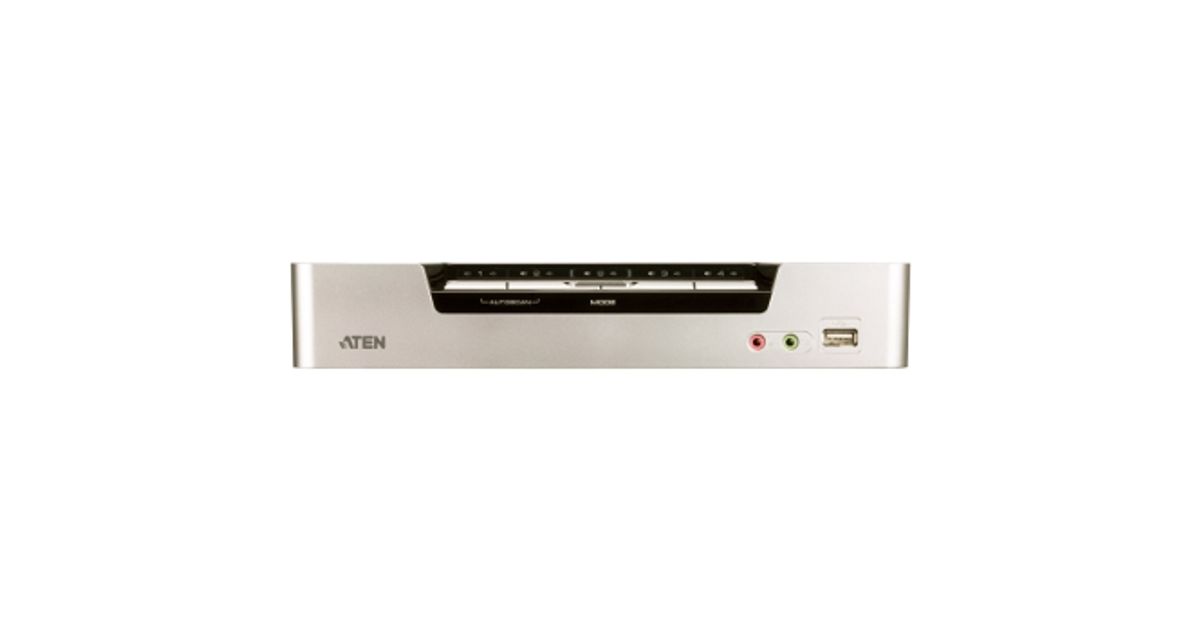

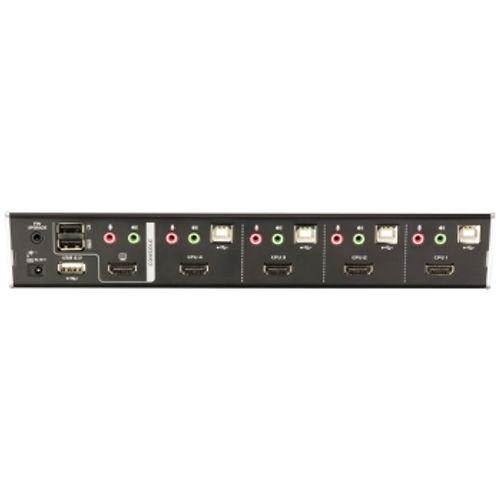

ATEN 4-Port USB HDMI KVM Switch with Audio & USB 2.0 Hub (KVM cables included)
Aten 4-Port USB HDMI KVM Switch with Audio & USB 2.0 Hub (KVM cables included), 1920 x 1200 pixels, WUXGA, 3.62 W, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 03118396 |
| EAN | 00672792100260 |
| Manufacturer part number | 14016327 |
| Category | VM switches and accessories |
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Console ports | 3.5mm headphone, HDMI, USB A |
| HDMI ports quantity | 4 |
| USB 2.0 Type-B ports quantity | 4 |
| Console USB ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 2 |
| Audio connections | Y |
| Headphone outputs | 6 |
| Number of microphone inputs | 6 |
| DC-in jack | Y |
| Keyboard | |
|---|---|
| USB hub | Y |
| Hot keys | Y |
| Features | |
|---|---|
| USB connector type | USB Type-A, USB Type-B |
| Linux operating systems supported | Y |
| Display | |
|---|---|
| HD type | WUXGA |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Performance | |
|---|---|
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,99 s |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | Y |
| Push button | Y |
| Built-in display | N |
| Power | |
|---|---|
| Power source | DC |
| DC input voltage | 5.3 V |
| Power consumption (typical) | 3.62 W |
| Software | |
|---|---|
| Windows operating systems supported | Y |
| Mac operating systems supported | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Width | 262.3 mm |
| Depth | 76.8 mm |
| Height | 44 mm |
| Weight | 1.76 kg |
| Package weight | 2 kg |
| Packaging data | |
|---|---|
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Quick installation guide | Y |
| Packaging content | |
|---|---|
| Manual | Y |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 8.8 kg |
| Master (outer) case width | 34.2 cm |
| Master (outer) case length | 51.2 cm |
| Master (outer) case height | 23.2 cm |
| Master (outer) case gross weight | 10.7 kg |
| Products per master (outer) case | 5 pc(s) |
Product Description

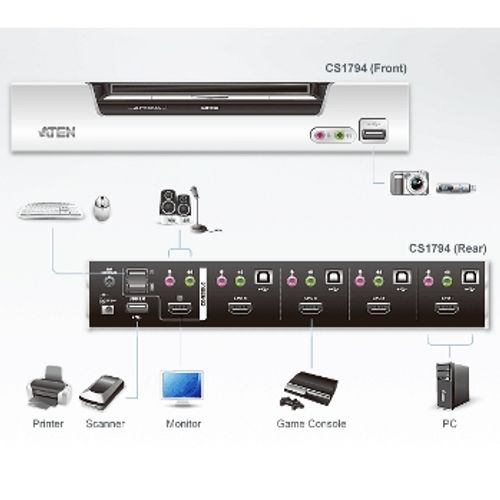

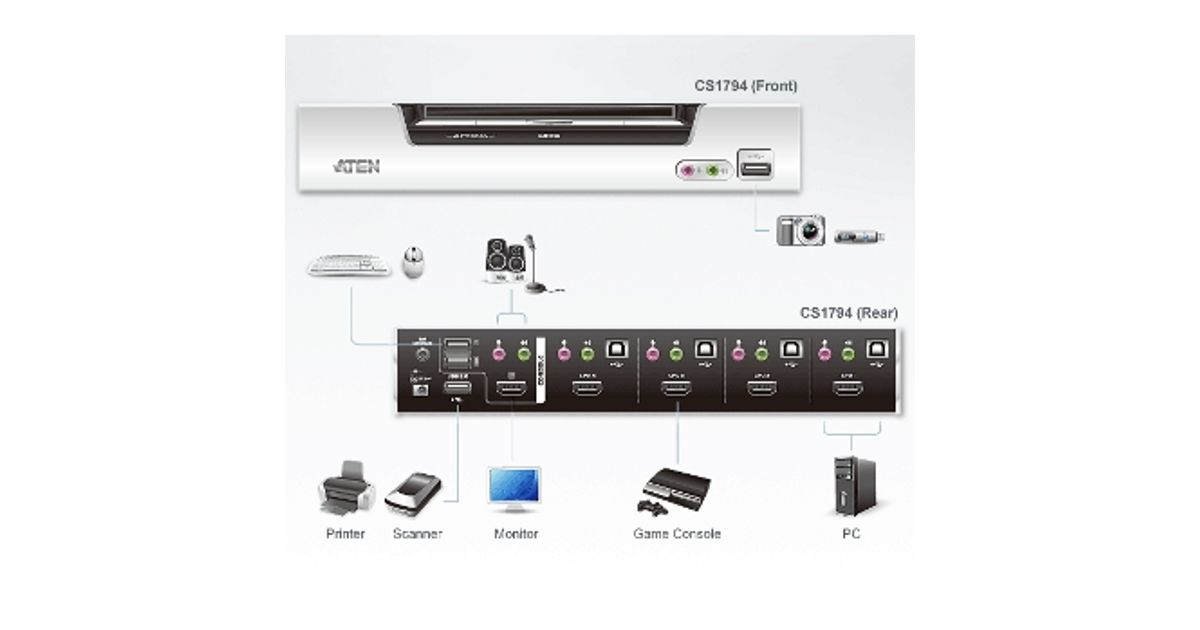

With its unique design and innovative features, the CubiQ™ CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
1x CS1794 USB 2.0 HDMI KVMP™ Switch
4x 2L-7D02UH HDMI KVM Cable Sets
1x LIN5-04A2-J13G Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
1x CS1794 USB 2.0 HDMI KVMP™ Switch
4x 2L-7D02UH HDMI KVM Cable Sets
1x LIN5-04A2-J13G Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
