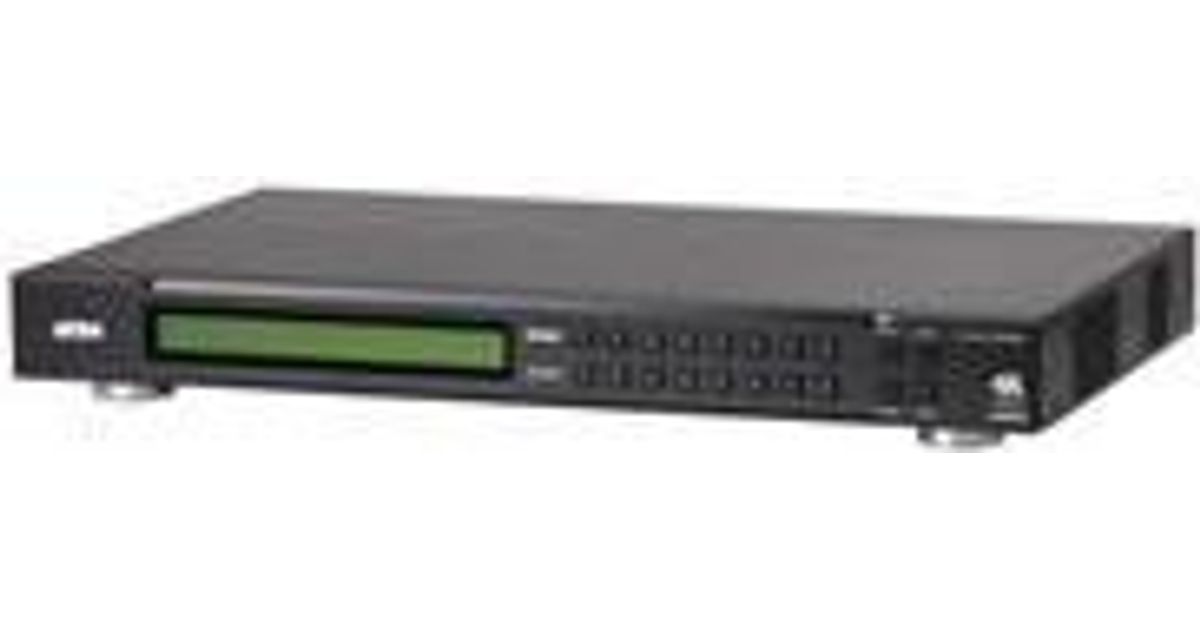

ATEN 8X8 True 4K HDMI Martrix Switch
ATEN 8X8 True 4K HDMI Martrix Switch, AV matrix switcher, 18 Gbit/s, 600 MHz, 4096 x 2160 pixels, 4096 x 2160, 3840 x 2160, 1920 x 1200, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 16507547 |
| EAN | 04719264646836 |
| Manufacturer part number | VM0808HB-AT-G |
| Category | Other AV & electronics |
| Design | |
|---|---|
| Product type | AV matrix switcher |
| Housing material | Metal |
| Rack mounting | Y |
| Rack capacity | 1U |
| On/off switch | Y |
| LED indicators | Y |
| Built-in display | Y |
| Features | |
|---|---|
| Data transfer rate | 18 Gbit/s |
| Maximum pixel clock | 600 MHz |
| HDCP | Y |
| HDCP version | 2.2 |
| Extended display identification data (EDID) | Y |
| Housing colour | Black |
| Control type | Buttons |
| Graphics | |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Other features | |
|---|---|
| 3D | Y |
| Supported resolutions | 4096 x 2160, 3840 x 2160, 1920 x 1200 |
| Remote control included | Y |
| Quick start guide | Y |
| Display | |
|---|---|
| High Dynamic Range (HDR) supported | Y |
| Ports & interfaces | |
|---|---|
| HDMI input ports quantity | 8 |
| HDMI output ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Remote (IR) input | 1 |
| Power | |
|---|---|
| Power consumption (max) | 38.1 W |
| Power consumption (typical) | 37.8 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Input current | 1 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Heat dissipation (max) | 179 BTU/h |
| Performance | |
|---|---|
| Heat dissipation | 177 BTU/h |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case gross weight | 5.63 kg |
| Master (outer) case length | 51.5 cm |
| Master (outer) case width | 33.8 cm |
| Master (outer) case height | 15.5 cm |
| Master (outer) case net weight | 4.15 kg |
| Weight & dimensions | |
|---|---|
| Width | 432.4 mm |
| Depth | 262.3 mm |
| Height | 44 mm |
| Weight | 4.15 kg |
| Package weight | 5.63 kg |
| Packaging data | |
|---|---|
| Package width | 338 mm |
| Package depth | 515 mm |
| Package height | 155 mm |
| Packaging content | |
|---|---|
| Cables included | AC |
| Rack mount kit | Y |
| IR receiver included | Y |
Product Description
ATEN's VM0808HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0808HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.
1x VM0808HB 8 x 8 True 4K HDMI Matrix Switch
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Rack Mounting Kit
1x User Instructions
1x VM0808HB 8 x 8 True 4K HDMI Matrix Switch
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Rack Mounting Kit
1x User Instructions
