ATEN CL5708M-ATA-AG KVM switch Rack mounting Black
Aten CL5708M-ATA-AG, 1280 x 1024 pixels, Rack mounting, 1U, 16 W, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 03118459 |
| EAN | 04719264642449 |
| Manufacturer part number | CL5708M-ATA-XG |
| Category | KVM switches |
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | PS/2 |
| Mouse port type | USB |
| Video port type | VGA |
| Features | |
|---|---|
| USB connector type | USB Type-A |
| Linux operating systems supported | Y |
| Graphics | |
|---|---|
| Maximum resolution | 1280 x 1024 pixels |
| Performance | |
|---|---|
| Scan interval | 1,255 s |
| DDC2B support | Y |
| Hot-swap | Y |
| Design | |
|---|---|
| Rack mounting | Y |
| Product colour | Black |
| Rack capacity | 1U |
| Housing material | Metal, Plastic |
| LED indicators | Y |
| Built-in display | Y |
| Other features | |
|---|---|
| Display | LCD |
| Display | |
|---|---|
| Display diagonal | 43.2 cm (17") |
| On Screen Display (OSD) | Y |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 16 W |
| Software | |
|---|---|
| Windows operating systems supported | Y |
| Mac operating systems supported | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Width | 642.7 mm |
| Depth | 480 mm |
| Height | 44 mm |
| Weight | 13.5 kg |
| Packaging content | |
|---|---|
| Manual | Y |
Product Description
The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

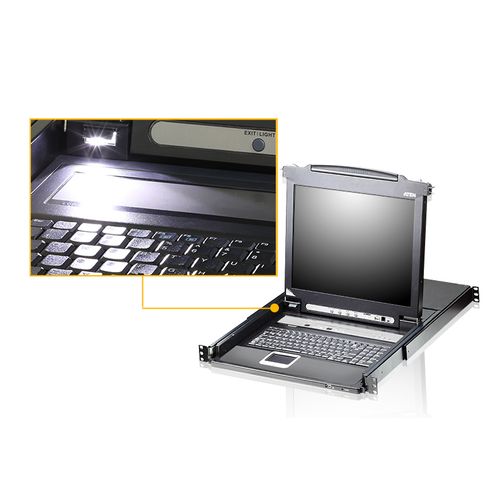

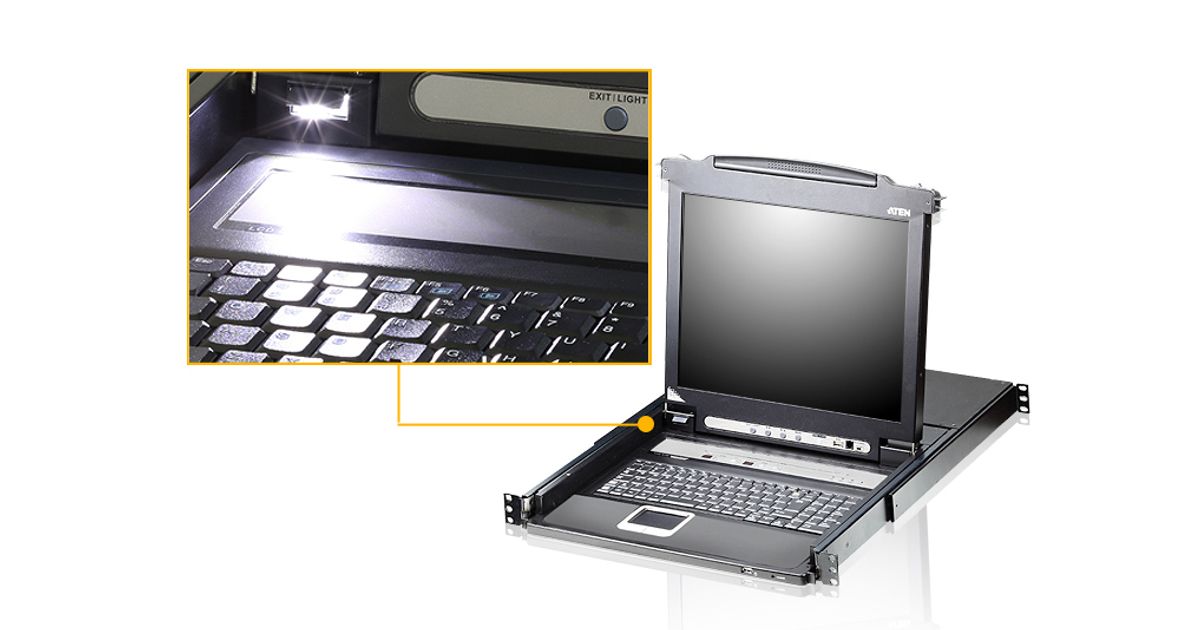

The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
