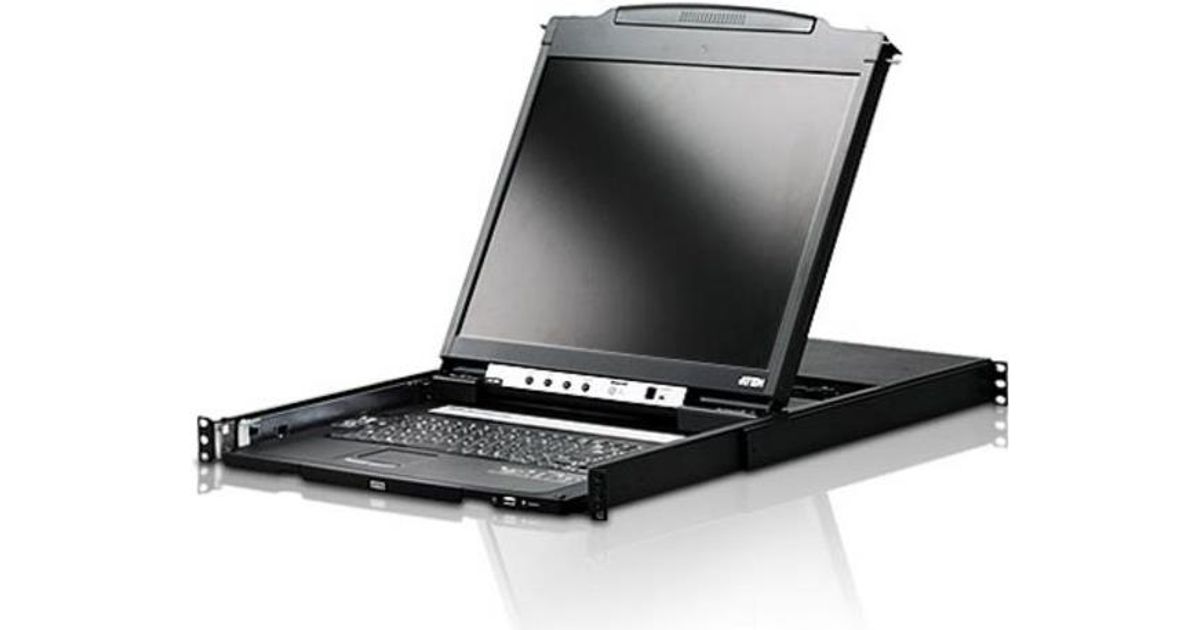

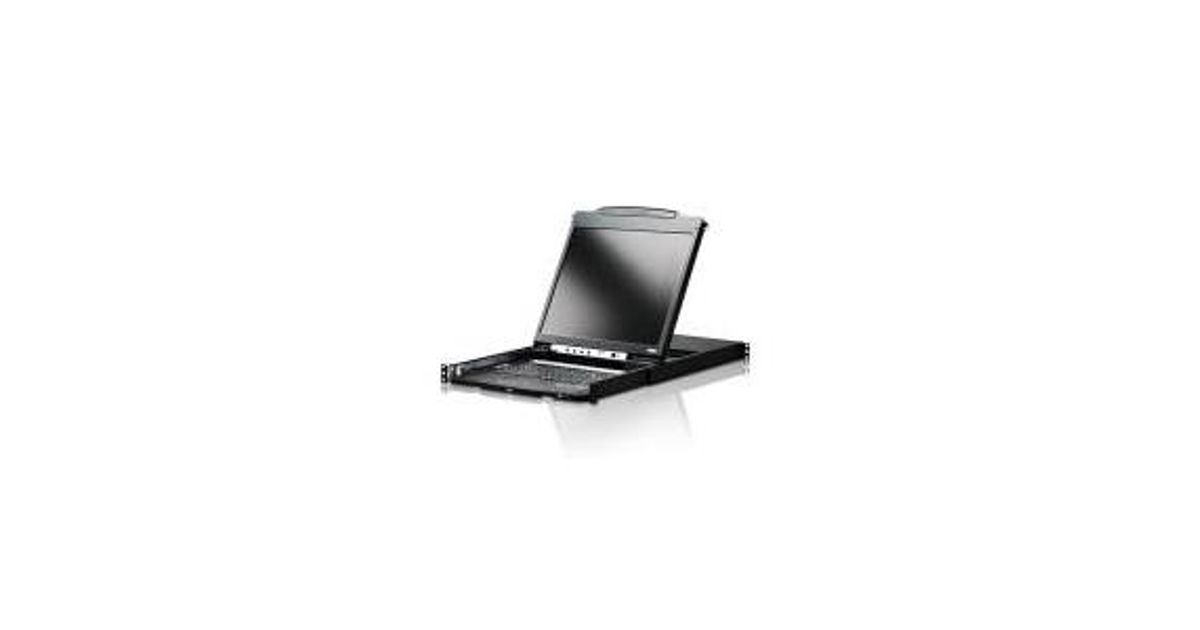

Aten CL5800N rack console 48.3 cm (19") 1280 x 1024 pixels Black
Aten CL5800N, 48.3 cm (19"), 1280 x 1024 pixels, LCD, VGA, USB, PS/2, 28 W, 100 - 240 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 165419626 |
| EAN | 00672792002106 |
| Manufacturer part number | DCP3021 |
| Display | |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Other features | |
|---|---|
| Display | LCD |
| Weight (imperial) | 14.7 kg (32.3 lbs) |
| Design | |
|---|---|
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Interface | VGA, USB, PS/2 |
| Power | |
|---|---|
| Power consumption (typical) | 28 W |
| AC adapter input voltage | 100 - 240 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Product Description
Features
- Integrated KVM console with a 19" LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Standard rack mount kit included - optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
- Supports an external console* with either PS/2 or USB connectors
- Dual interface - Supports computers and KVM switches with PS/2 or USB keyboards and mice
- Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
- Internal power supply
- High video resolution:
- Up to 1280 x 1024 @75Hz
- Supports DDC, DDC2, DDC2B
- DDC emulation of the LCD monitor
- Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
- Standard 105-key keyboard; Sun keyboard emulation
- Dual rail design allows LCD monitor and keyboard/touch pad modules to operate independently
- Compatible with all ATEN KVM Switches and most other KVM switches
- Adjustable depth to fit within the rack
- Firmware upgradeable
- Supports Microsoft Intellimouse (5 keys)
- Supports Logitech and Microsoft wireless mice
- Console lock - enables the console drawer to remain securely locked away in position when not in use
Package Contents
- 1x CL5800 Dual Rail LCD PS/2-USB Console with Standard Rack Mount Kit
- 1x 2L-5302UP PS/2 USB KVM cable
- 1x 1ADP-0007-001G Power Cord
- 1x Firmware Upgrade Cable
- 1x User Instructions
