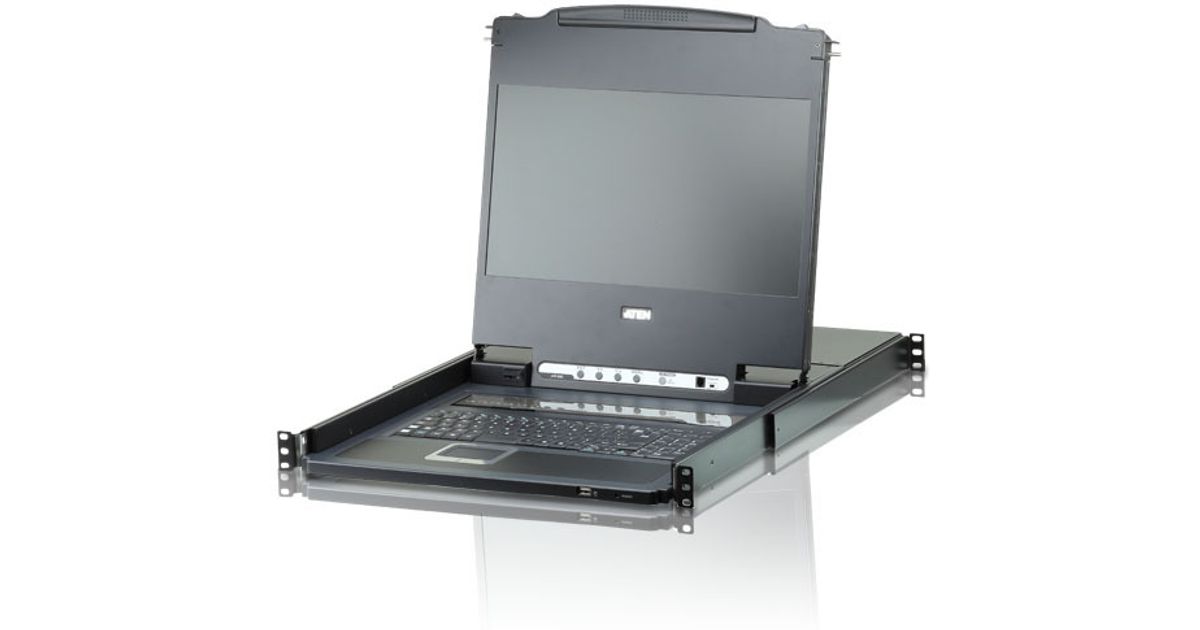

Aten CL6708MW KVM switch Rack mounting Black
Aten CL6708MW, 1920 x 1080 pixels, Rack mounting, 1U, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 221322592 |
| EAN | 04710469344510 |
| Manufacturer part number | CL6708MW-ATA-2XK06ITG |
| Category | VM switches and accessories |
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 64 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI/DisplayPort |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Performance | |
|---|---|
| Automatic switching | Y |
| Scan interval | 1,255 s |
| DDC2B support | Y |
| Design | |
|---|---|
| Rack mounting | Y |
| Product colour | Black |
| Rack capacity | 1U |
| LED indicators | Y |
| Built-in display | Y |
| Keyboard | |
|---|---|
| Keyboard language | Italian |
| Other features | |
|---|---|
| Display | LCD |
| Display | |
|---|---|
| Display diagonal | 43.9 cm (17.3") |
| Power | |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Width | 689.2 mm |
| Depth | 480 mm |
| Height | 44 mm |
| Weight | 12.7 kg |
| Packaging content | |
|---|---|
| Manual | Y |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
Product Description
The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches with its native DVI compatibility. Building on ATEN’s renowned, space-saving approach to KVM switches – which integrates an LCD panel, full keyboard, and touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches.
Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.
To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.
Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.
To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.
