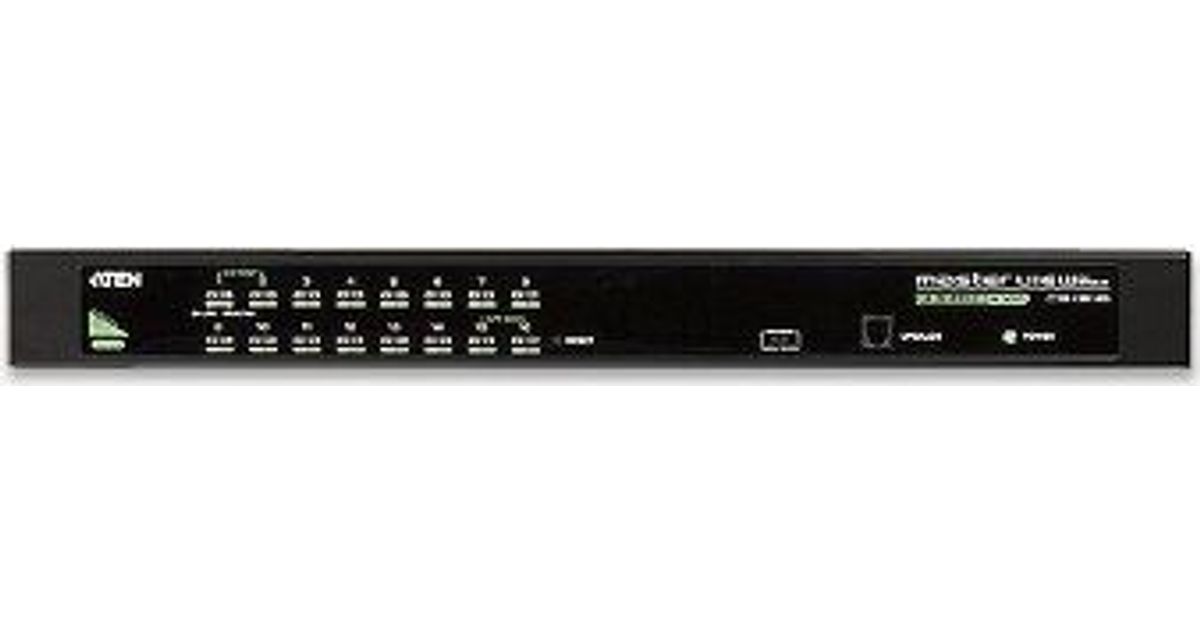

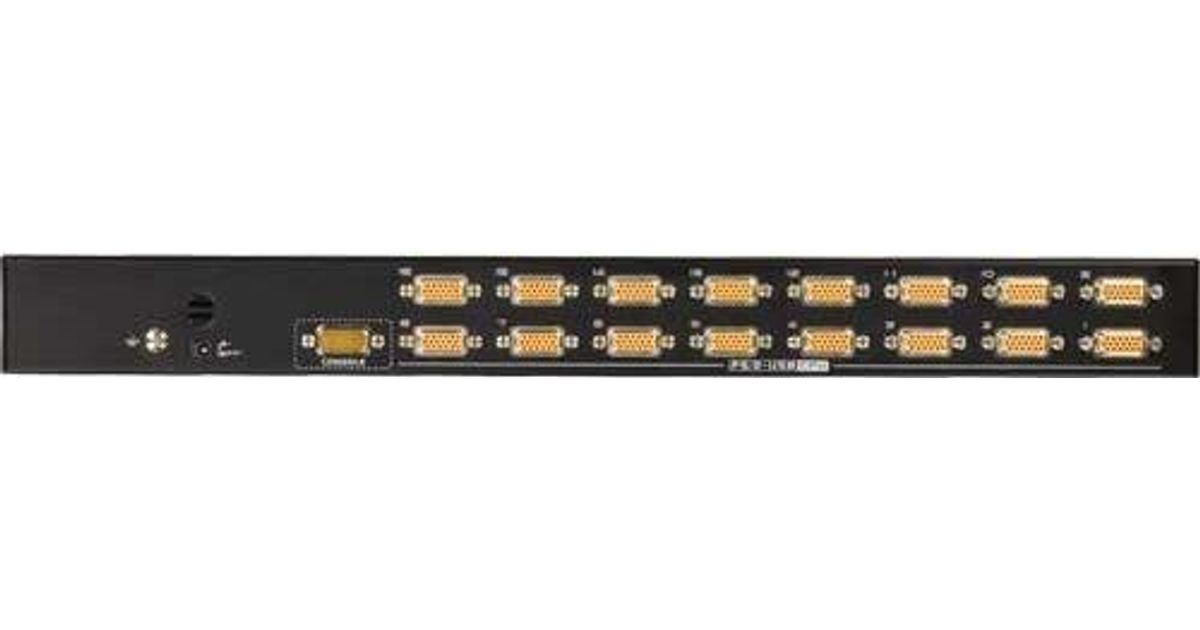

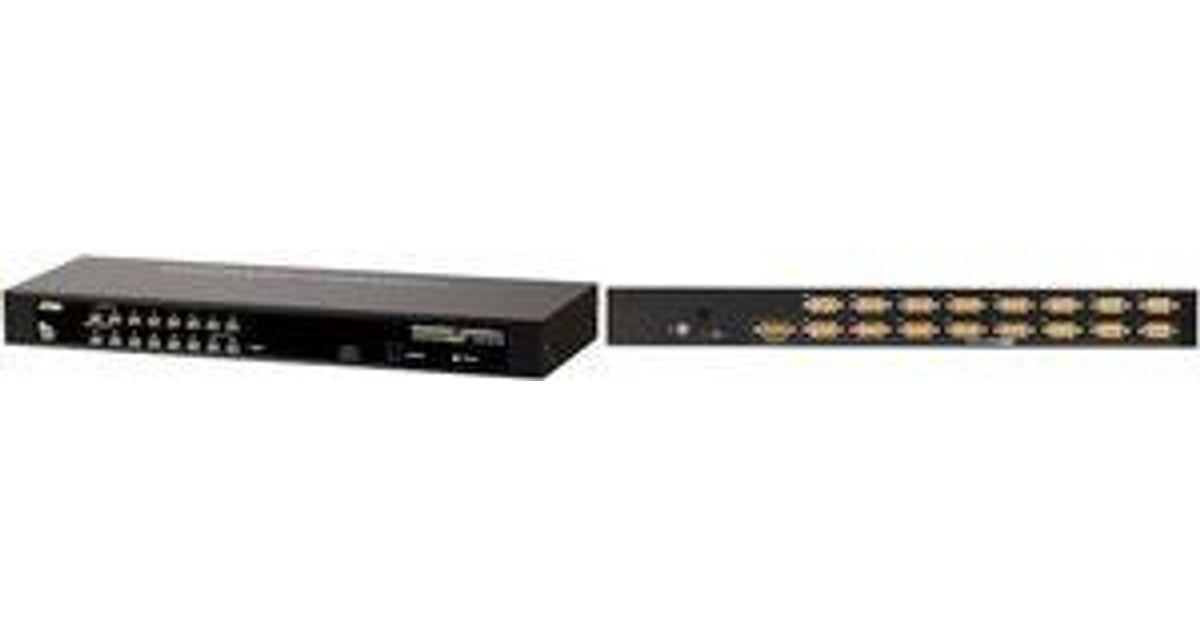

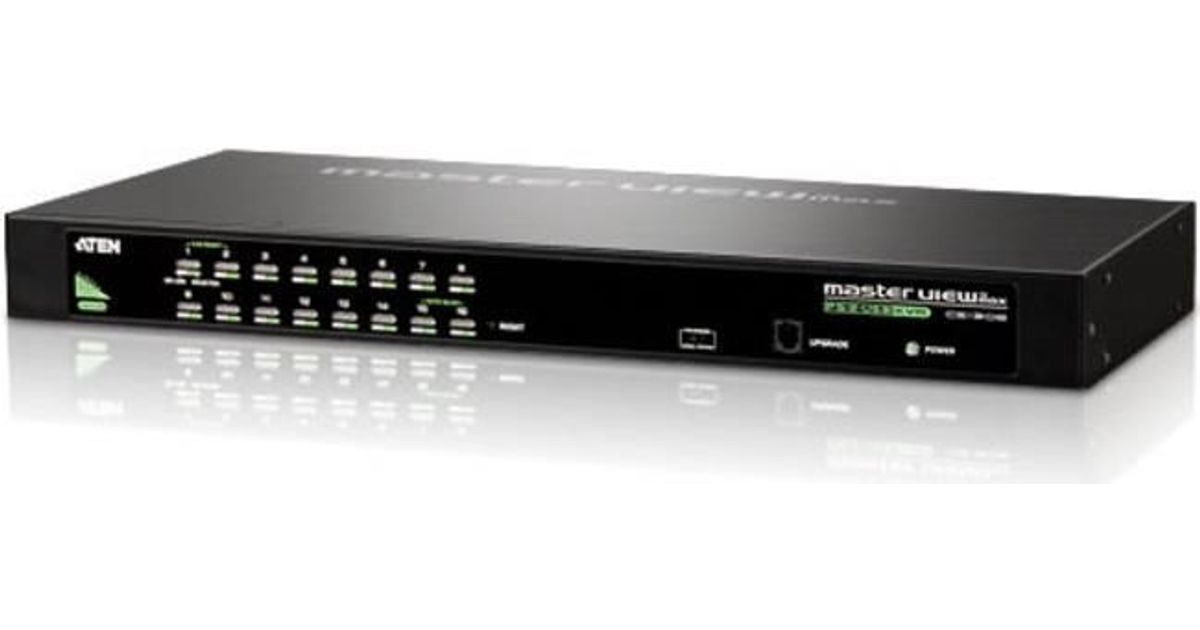

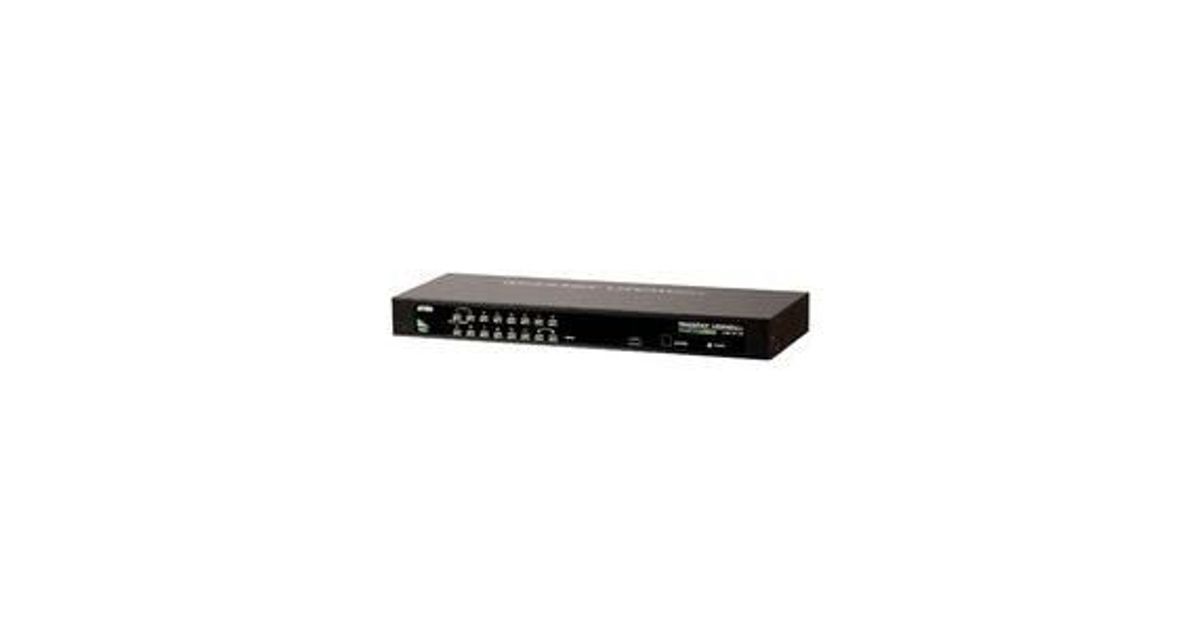

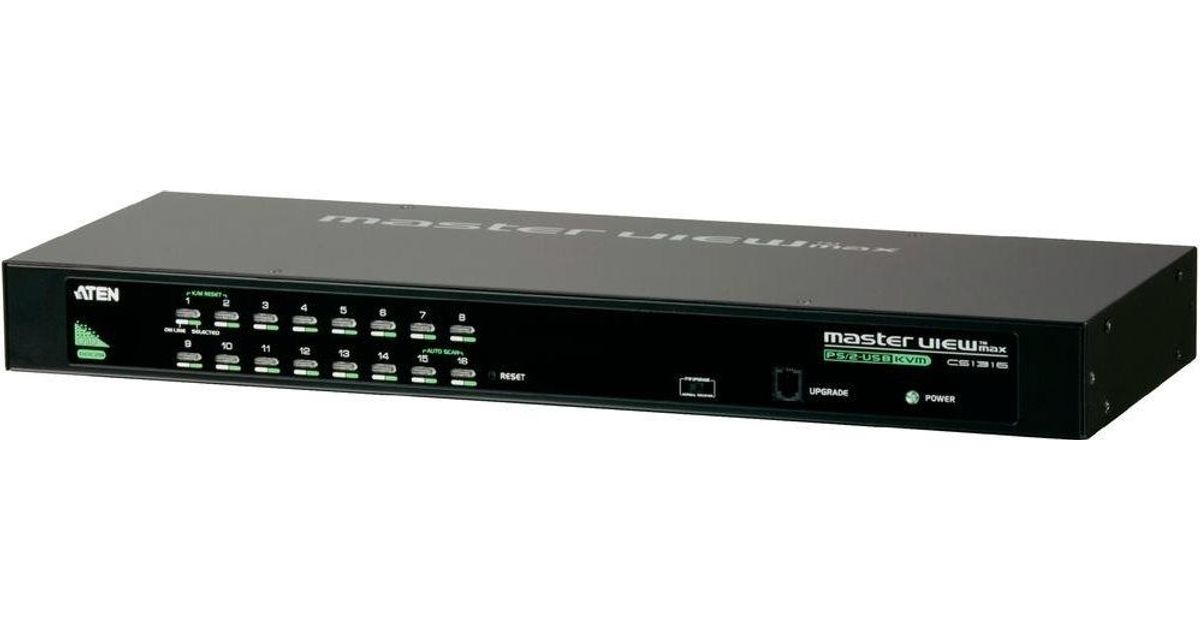

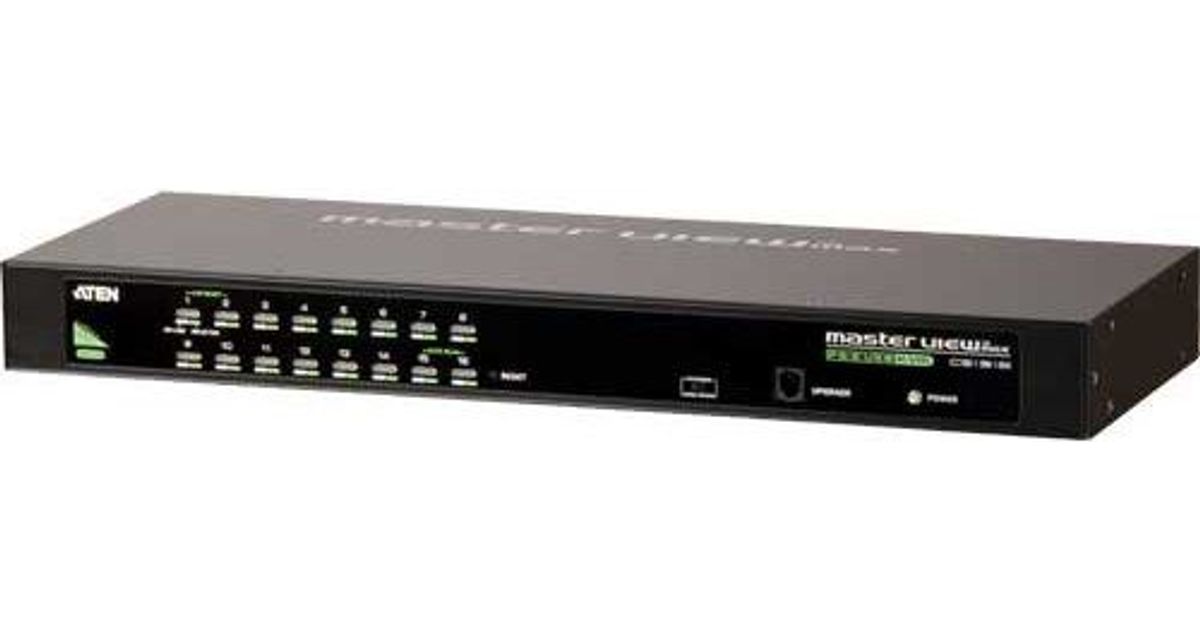

Aten CS1316 KVM switch Black
Aten CS1316, 2048 x 1536 pixels, 6.6 W, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 16504558 |
| EAN | 04719264643859 |
| Manufacturer part number | CS1316-AT-G |
| Category | KVM switches |
| Ports & interfaces | |
|---|---|
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| DC-in jack | Y |
| Ports quantity | 16 |
| Graphics | |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | Y |
| Built-in display | N |
| Power | |
|---|---|
| Power consumption (typical) | 6.6 W |
| Other features | |
|---|---|
| External power adapter | Y |
| Dimensions (WxDxH) | 160 x 433 x 44 mm |
| Compatible operating systems | Windows 2000/XP/Vista/7 Linux Mac Sun |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.1 kg |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Features | |
|---|---|
| Power supply type | DC |
Product Description
Features
- One USB-PS/2 console controls 16 computers
- Cascade up to 2 levels* - control up to 256 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)
*Cascade function only works with USB KVM cable set connections.
Package Contents
- 1x CS1316 KVM Switch with Rack Mount Kit
- 1x LIN5-27X6-U21G Console cable
- 1x Firmware Upgrade cable
- 1x Foot Pad set (4 pads)
- 1x 0AD6-1605-24EG Power Adapter
- 1x Mounting Kit
- 1x User Instructions
