ATEN DisplayPort HDBaseT-Lite Extender 4K/40m;1080p/70m
ATEN DisplayPort HDBaseT-Lite Extender 4K/40m;1080p/70m, 4096 x 2160 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 03118540 |
| EAN | 04719264645204 |
| Manufacturer part number | VE901-AT-G |
| Category | VM switches and accessories |
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Supported video modes | 1080p |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 297 MHz |
| HDCP | Y |
| Material | Metal |
| Plug and Play | Y |
| Impedance | 100 Ω |
| HDCP version | 1.4 |
| HDBaseT certified | Y |
| Graphics | |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Network | |
|---|---|
| Cable types supported | Cat5e, Cat6, Cat6a |
| Performance | |
|---|---|
| Maximum transfer distance | 70 m |
| Design | |
|---|---|
| LED indicators | Y |
| Rack mounting | Y |
| Product colour | Black |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Y |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| DC-in jack | Y |
| Power | |
|---|---|
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Power consumption (TX) | 2.84 W |
| Power consumption (RX) | 5.72 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Weight | 750 g |
| Receiver weight | 270 g |
| Transmitter dimensions (WxDxH) | 94.2 x 66 x 29 mm |
| Transmitter weight | 240 g |
| Package weight | 855 g |
| Packaging data | |
|---|---|
| Receiver dimensions (W x D x H) | 94.2 x 66 x 29 mm |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Manual | Y |
| Logistics data | |
|---|---|
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.85 kg |
| Master (outer) case net weight | 3.75 kg |
| Products per master (outer) case | 5 pc(s) |
Product Description

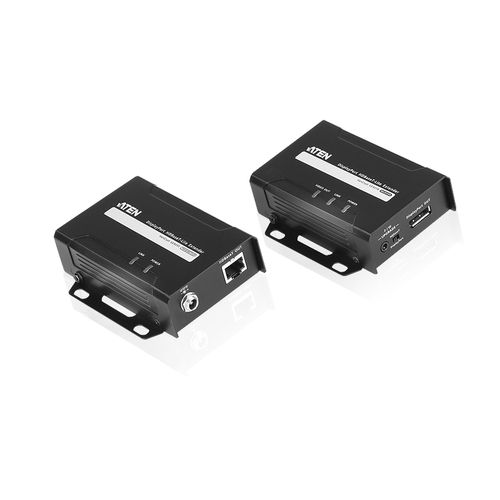

The VE901 DisplayPort HDBaseT-Lite Extender is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.

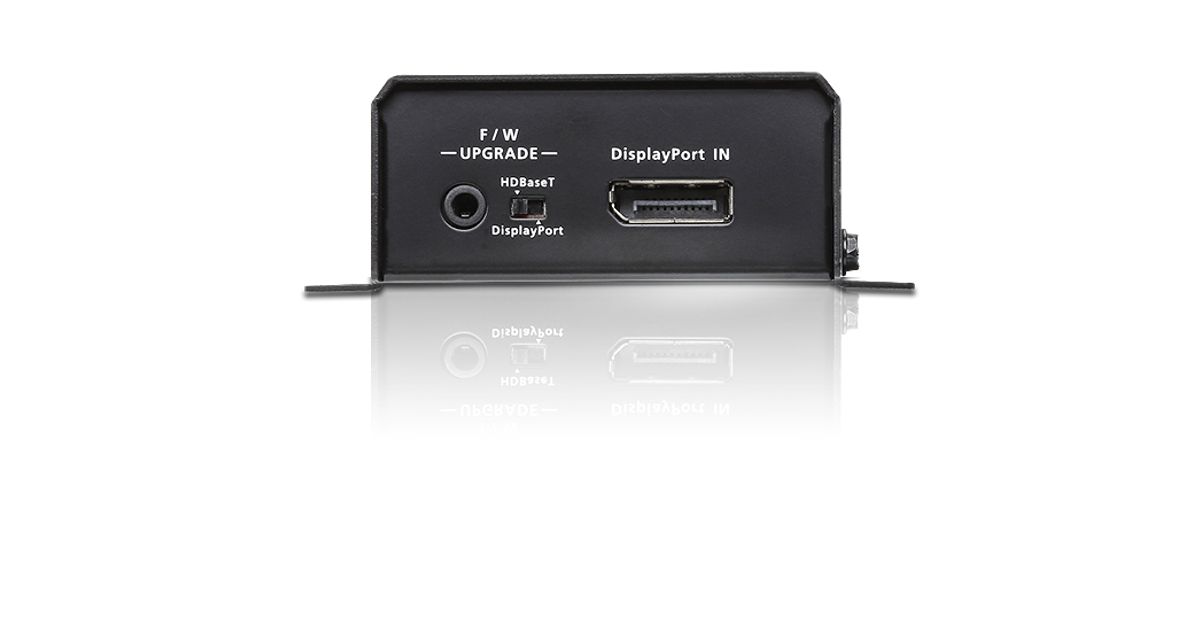

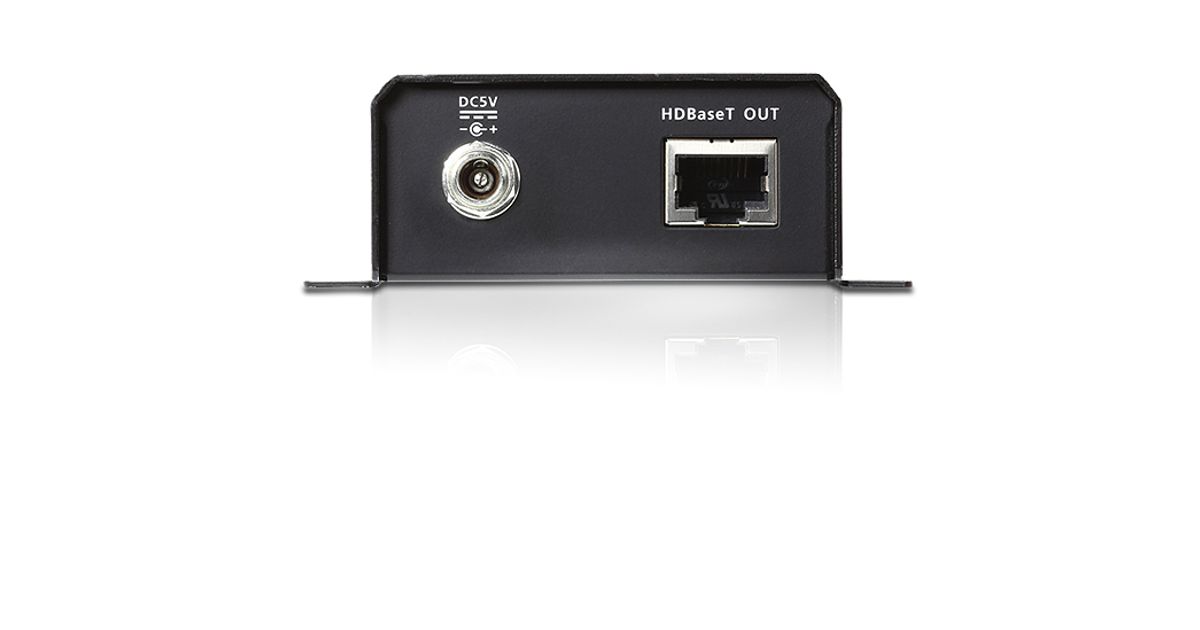

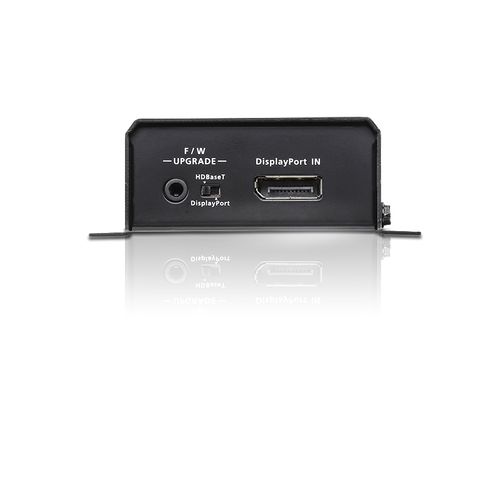

1x VE901T DisplayPort HDBaseT-Lite Transmitter

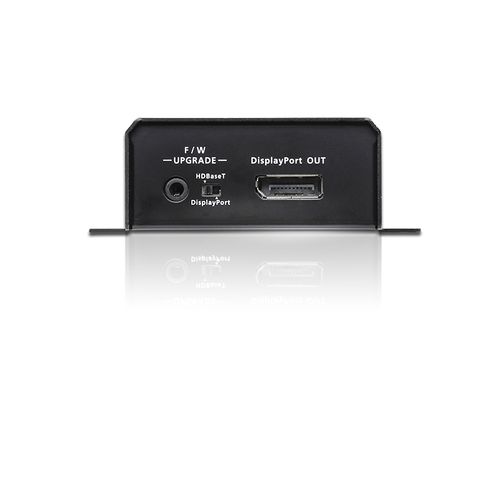

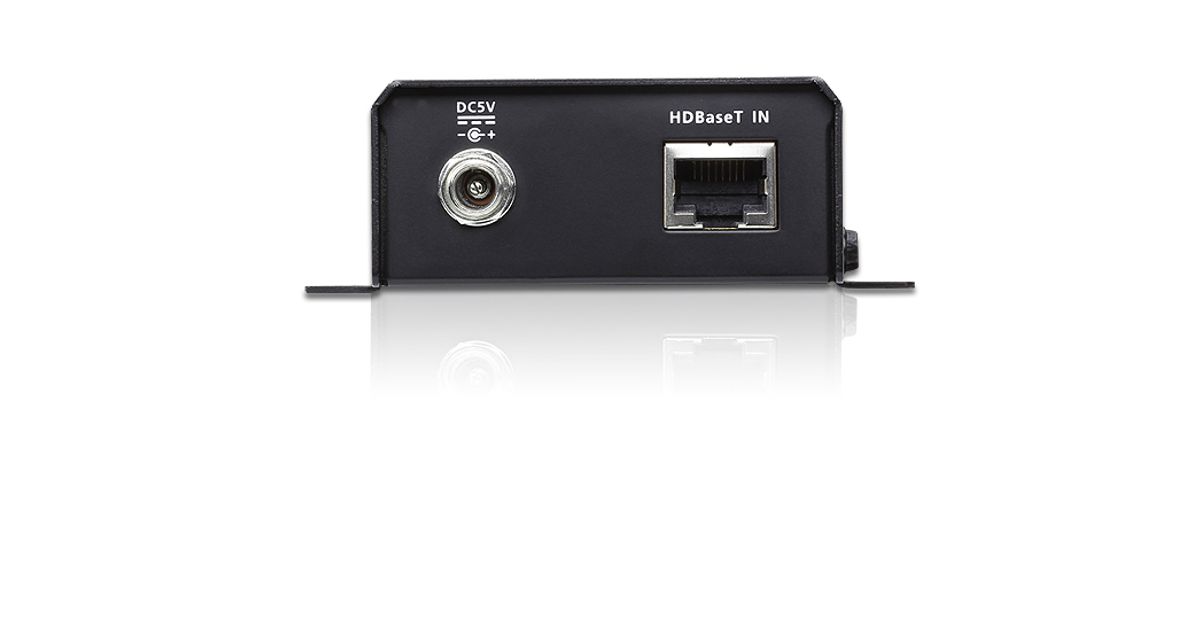

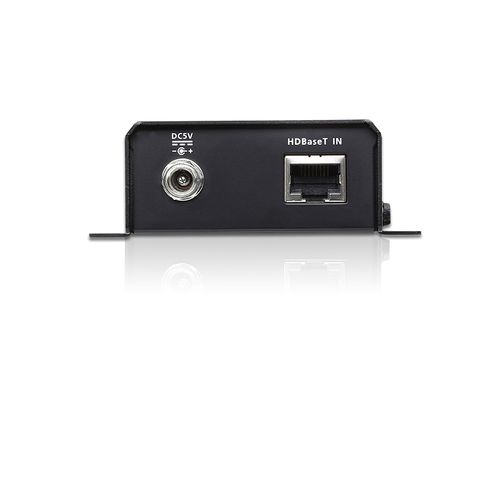

1x VE901R DisplayPort HDBaseT-Lite Receiver
2x 0AD8-1F05-26M1 Power Adapters
1x User Instructions
1x VE901T DisplayPort HDBaseT-Lite Transmitter
1x VE901R DisplayPort HDBaseT-Lite Receiver
2x 0AD8-1F05-26M1 Power Adapters
1x User Instructions
