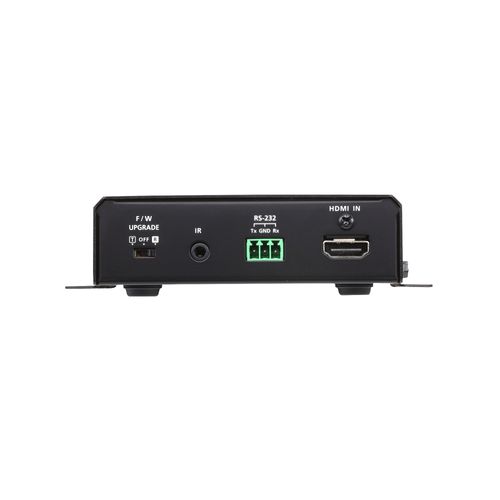

Aten HDMI HDBaseT Extender with POH
Aten HDMI HDBaseT Extender with POH, 4096 x 2160 pixels, AV transmitter & receiver, 150 m, Wired, 3D, HDCP
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 21823678 |
| EAN | 04719264645792 |
| Manufacturer part number | VE1812-AT-G |
| Category | VM switches and accessories |
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Supported video modes | 1080p |
| Supported graphics resolutions | 3840 x 2160,4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Y |
| Material | Metal |
| Consumer Electronics Control (CEC) support | Y |
| Impedance | 100 Ω |
| HDCP version | 2.2 |
| Graphics | |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Network | |
|---|---|
| Cable types supported | Cat5e,Cat6,Cat6a |
| Ethernet LAN | Y |
| Performance | |
|---|---|
| Maximum transfer distance | 150 m |
| Firmware upgradeable | Y |
| Design | |
|---|---|
| LED indicators | Y |
| Product colour | Black |
| Other features | |
|---|---|
| 3D | Y |
| External power adapter | Y |
| Quick start guide | Y |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Y |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Video in | 1 |
| Video out | 1 |
| 3.5 mm (1/8-inch) in | Y |
| 3.5 mm (1/8-inch) out | Y |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Y |
| Power | |
|---|---|
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Power consumption (transmitter) (max) | 3.2 W |
| Power consumption (receiver) (max) | 5.33 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Weight | 1.3 kg |
| Receiver weight | 450 g |
| Transmitter dimensions (WxDxH) | 123 x 140.4 x 30 mm |
| Transmitter weight | 470 g |
| Package weight | 1.4 kg |
| Packaging data | |
|---|---|
| Receiver dimensions (W x D x H) | 123 x 140.4 x 30 mm |
| Quantity per pack | 1 pc(s) |
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Logistics data | |
|---|---|
| Master (outer) case width | 29.2 cm |
| Master (outer) case length | 51.7 cm |
| Master (outer) case height | 19.4 cm |
| Master (outer) case gross weight | 6.98 kg |
| Master (outer) case net weight | 6.5 kg |
| Products per master (outer) case | 5 pc(s) |
Product Description
The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled, the VE1812 can extend HDMI signal up to 150m @1080p.
1x VE1812 HDMI HDBaseT Transmitter with POH
1x VE1812 HDMI HDBaseT Receiver with POH
1x 0AD8-1F05-30M1 Power Adapter
1x 2XRT-0004G IR Transmitter
1x 2XRT-0003G-1 IR Receiver
2x RS-232 Terminal Blocks
1x User Instructions
1x VE1812 HDMI HDBaseT Transmitter with POH
1x VE1812 HDMI HDBaseT Receiver with POH
1x 0AD8-1F05-30M1 Power Adapter
1x 2XRT-0004G IR Transmitter
1x 2XRT-0003G-1 IR Receiver
2x RS-232 Terminal Blocks
1x User Instructions
