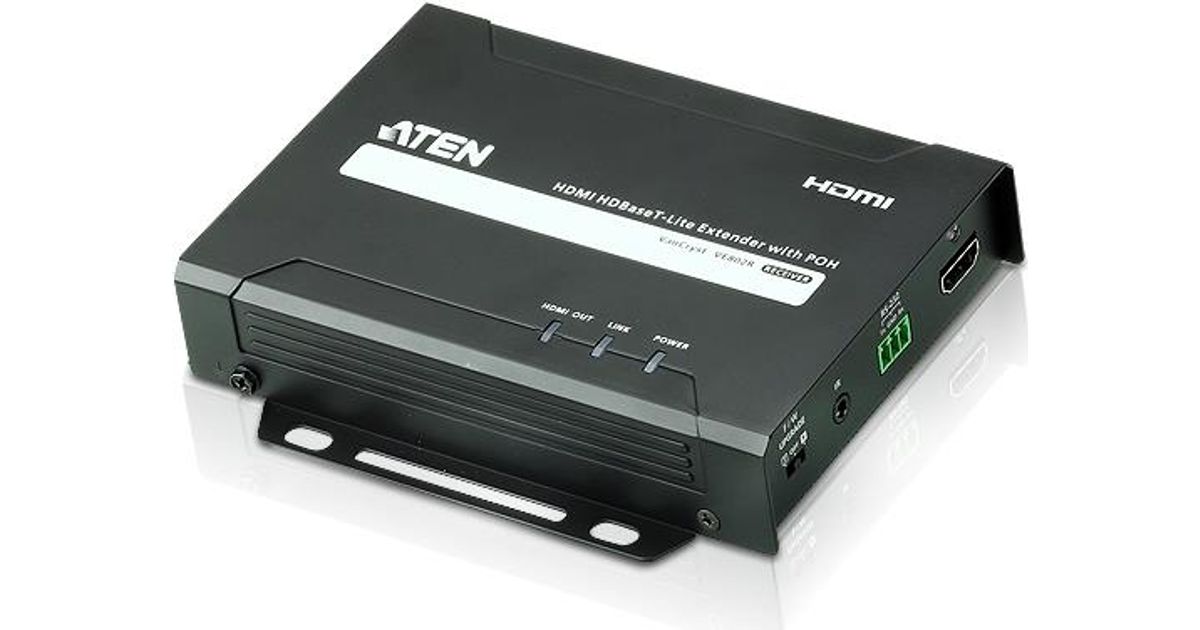

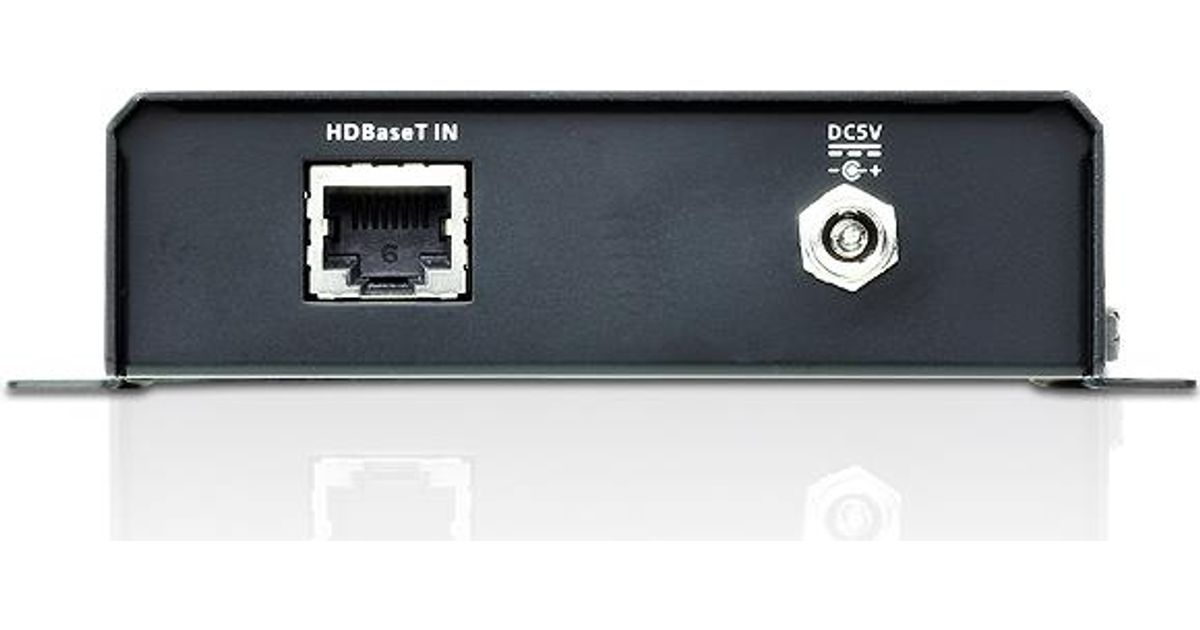

Aten HDMI HDBaseT-Lite/Class B Receiver with POH (70m)
Aten HDMI HDBaseT-Lite/Class B Receiver with POH (70m), 4096 x 2160 pixels, AV receiver, 70 m, Wired, Black, HDCP
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 16507311 |
| EAN | 04719264642838 |
| Manufacturer part number | VE802R-AT-G |
| Category | VM switches and accessories |
| Features | |
|---|---|
| Type | AV receiver |
| Supported video modes | 2160p |
| Supported graphics resolutions | 4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Y |
| Material | Metal |
| Consumer Electronics Control (CEC) support | Y |
| Impedance | 100 Ω |
| HDCP version | 2.2 |
| Graphics | |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Network | |
|---|---|
| Cable types supported | Cat5,Cat6,Cat6a |
| Performance | |
|---|---|
| Maximum transfer distance | 70 m |
| Design | |
|---|---|
| Product colour | Black |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Number of HDMI outputs | 1 |
| RS-232 output ports | 1 |
| Audio output | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Y |
| Power | |
|---|---|
| AC input frequency | 60 Hz |
| Operating voltage | 5 V |
| Power consumption (receiver) (max) | 4.37 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Weight | 654 g |
| Receiver weight | 460 g |
| Package weight | 768 g |
| Packaging data | |
|---|---|
| Receiver dimensions (W x D x H) | 123 x 140.4 x 30 mm |
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Packaging content | |
|---|---|
| Manual | Y |
| IR receiver included | Y |
| Logistics data | |
|---|---|
| Master (outer) case width | 25 cm |
| Master (outer) case length | 32.5 cm |
| Master (outer) case height | 17.5 cm |
| Master (outer) case gross weight | 4.32 kg |
| Master (outer) case net weight | 3.27 kg |
| Products per master (outer) case | 5 pc(s) |
Product Description
The VE802R HDMI HDBaseT-Lite Receiver connects with HDBaseT transmitters* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802R is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802R is perfect for a digital entertainment center or any installation that requires superior video quality.
* Compatible HDBaseT Transmitter Units: VE802T
1x VE802R HDMI HDBaseT-Lite Receiver with POH
1x 0AD6-1F05-26EG Power Adapter
1x 2XRT-0003G IR Receiver
1x JCTN-3401-103G Terminal Block
1x User Instructions
