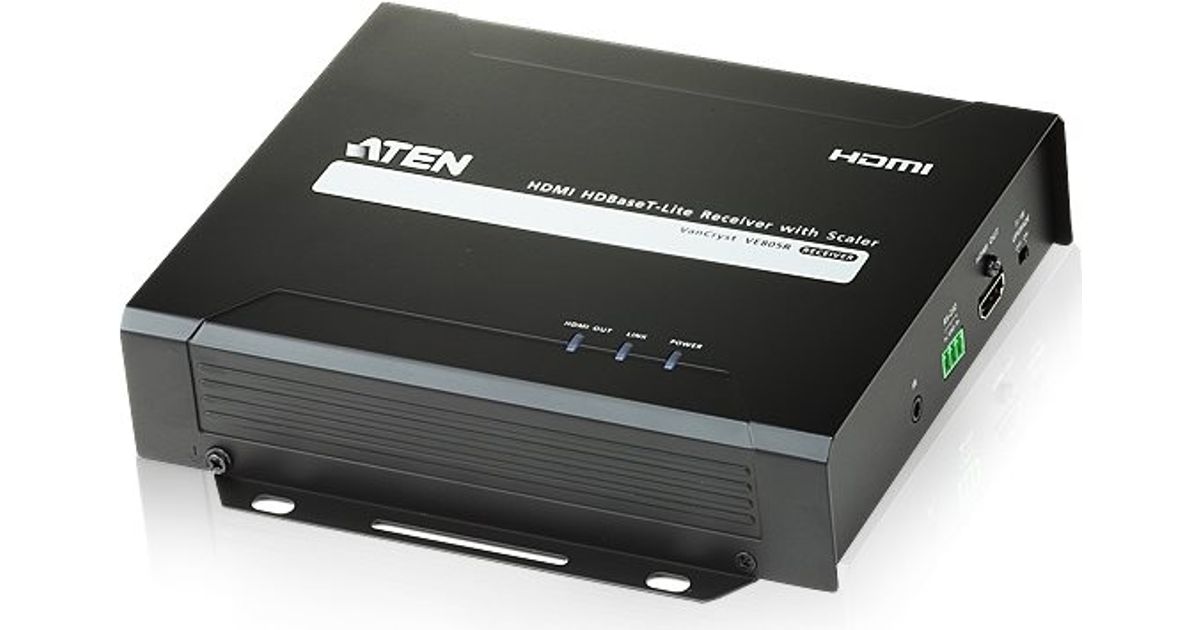

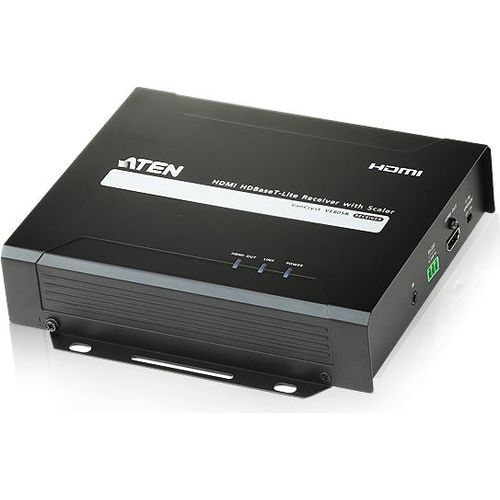

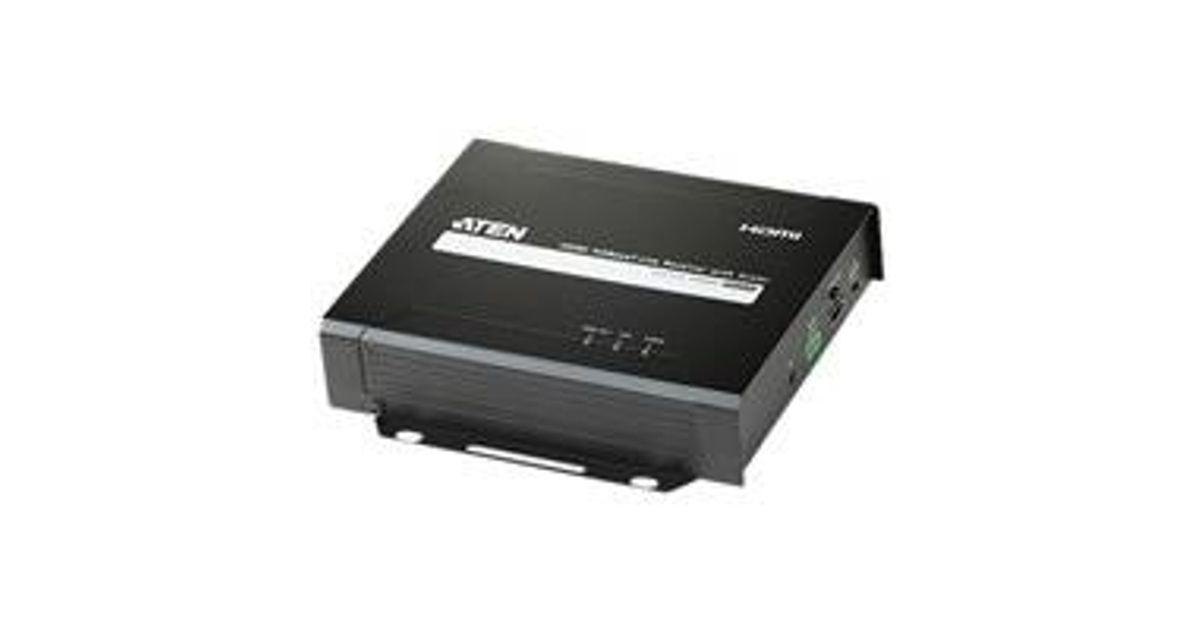

Aten HDMI HDBaseT-Lite/Class B Receiver with Scaler function (70m)
Aten HDMI HDBaseT-Lite/Class B Receiver with Scaler function (70m), 1920 x 1080 pixels, AV receiver, 60 m, Black, HDCP
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 16507313 |
| EAN | 04719264642944 |
| Manufacturer part number | VE805R-AT-G |
| Category | Other AV & electronics |
| Features | |
|---|---|
| Type | AV receiver |
| Supported video modes | 1080p |
| Class | B |
| HDCP | Y |
| Material | Metal |
| Wall mountable | Y |
| Impedance | 100 Ω |
| HDCP version | 1.4 |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Network | |
|---|---|
| Cable types supported | Cat5e,Cat6,Cat6a |
| Performance | |
|---|---|
| Maximum transfer distance | 60 m |
| Design | |
|---|---|
| On/off switch | Y |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| RJ-45 input ports | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| RS-232 input ports | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Y |
| Power | |
|---|---|
| Operating voltage | 5 V |
| Power consumption (typical) | 9.5 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Width | 169.2 mm |
| Depth | 177.4 mm |
| Height | 42 mm |
| Weight | 1.05 kg |
| Package weight | 1.24 kg |
| Packaging data | |
|---|---|
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Logistics data | |
|---|---|
| Master (outer) case width | 34.2 cm |
| Master (outer) case length | 51.2 cm |
| Master (outer) case height | 23.2 cm |
| Master (outer) case gross weight | 6.85 kg |
| Master (outer) case net weight | 5.25 kg |
| Products per master (outer) case | 5 pc(s) |
Product Description
The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.
1x VE805R HDMI HDBaseT-Lite Receiver with Scaler
1x 0AD6-1F05-26EG Power Adapter
1x 2XRT-0003G IR Transmitter
1x 2XRT-0004G IR Receiver
1x Terminal Block
1x User Instructions
1x VE805R HDMI HDBaseT-Lite Receiver with Scaler
1x 0AD6-1F05-26EG Power Adapter
1x 2XRT-0003G IR Transmitter
1x 2XRT-0004G IR Receiver
1x Terminal Block
1x User Instructions
