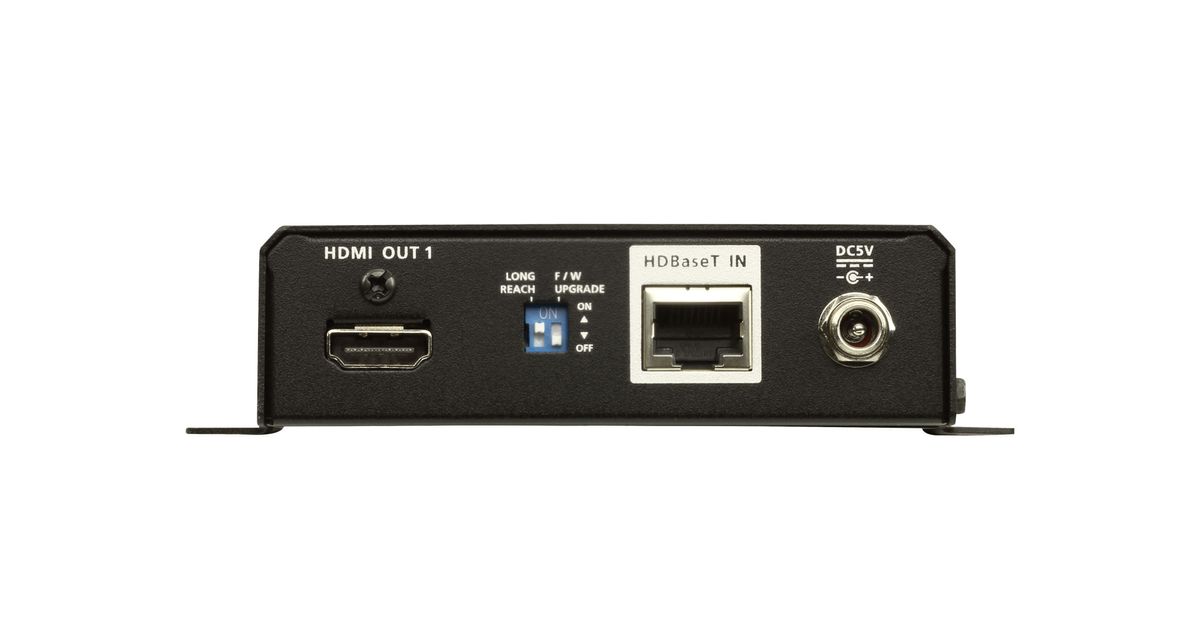

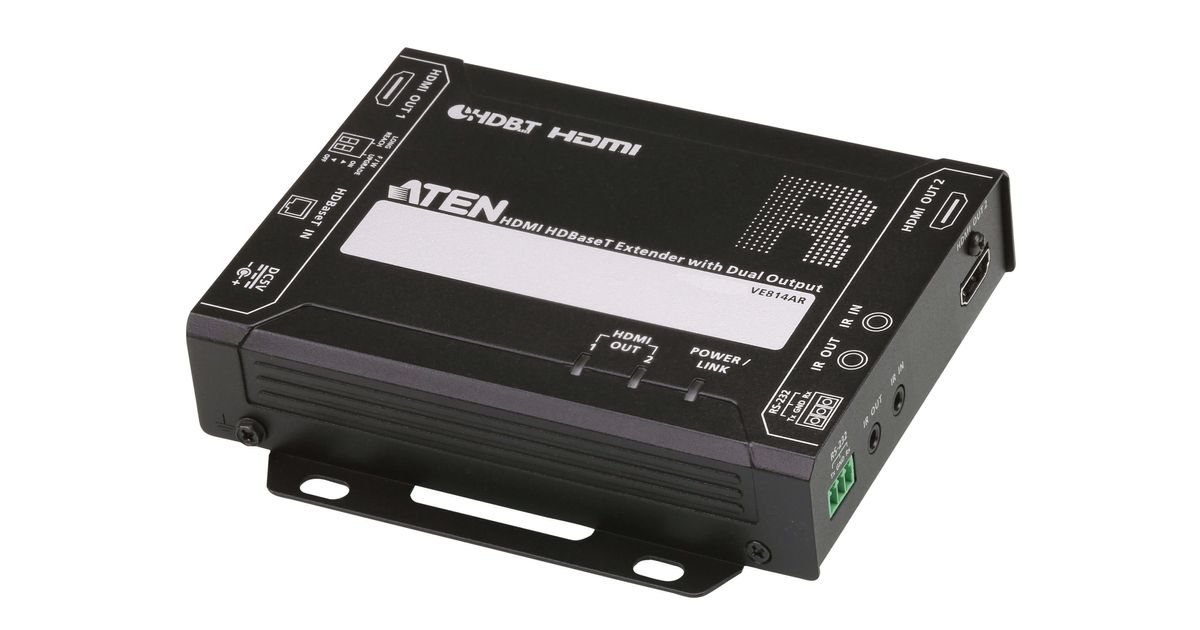

ATEN HDMI HDBaseT Receiver with Dual Output (4K@100m) (HDBaseT Class A)
ATEN HDMI HDBaseT Receiver with Dual Output (4K@100m) (HDBaseT Class A), 4096 x 2160 pixels, AV receiver, 150 m, Wired, 3D, HDCP
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 229601665 |
| EAN | 04710469342332 |
| Manufacturer part number | VE814AR-ATA-G |
| Features | |
|---|---|
| Type | AV receiver |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Y |
| Material | Metal |
| Consumer Electronics Control (CEC) support | Y |
| Baud rate | 57.6 Kbit/s |
| Impedance | 100 Ω |
| HDCP version | 2.2 |
| Graphics | |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Network | |
|---|---|
| Cable types supported | Cat5e, Cat6, Cat6a |
| Ethernet LAN | N |
| Performance | |
|---|---|
| Maximum transfer distance | 150 m |
| Infrared (IR) frequency range | 30 - 56 kHz |
| Firmware upgradeable | Y |
| Display | |
|---|---|
| Maximum refresh rate | 60 Hz |
| Other features | |
|---|---|
| 3D | Y |
| Design | |
|---|---|
| Product colour | Black |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| RJ-45 input ports | 1 |
| HDBaseT port | Y |
| Number of HDMI outputs | 2 |
| Serial interface type | RS-232 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Y |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| Power | |
|---|---|
| Operating voltage | 5 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Width | 123 mm |
| Depth | 140.2 mm |
| Height | 30 mm |
| Weight | 470 g |
| Package weight | 760 g |
| Packaging data | |
|---|---|
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package volume | 2265.35 cm³ |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Manual | Y |
| Logistics data | |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.15 kg |
| Master (outer) case volume | 14158.42 cm³ |
| Master (outer) case net weight | 3.05 kg |
Product Description
ATEN VE814AR is an HDBaseT Video Receiver that is capable of receiving HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable.This HDCP 2.2-compliant receiver meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.
The VE814AR supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814AR is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
The VE814AR supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814AR is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
