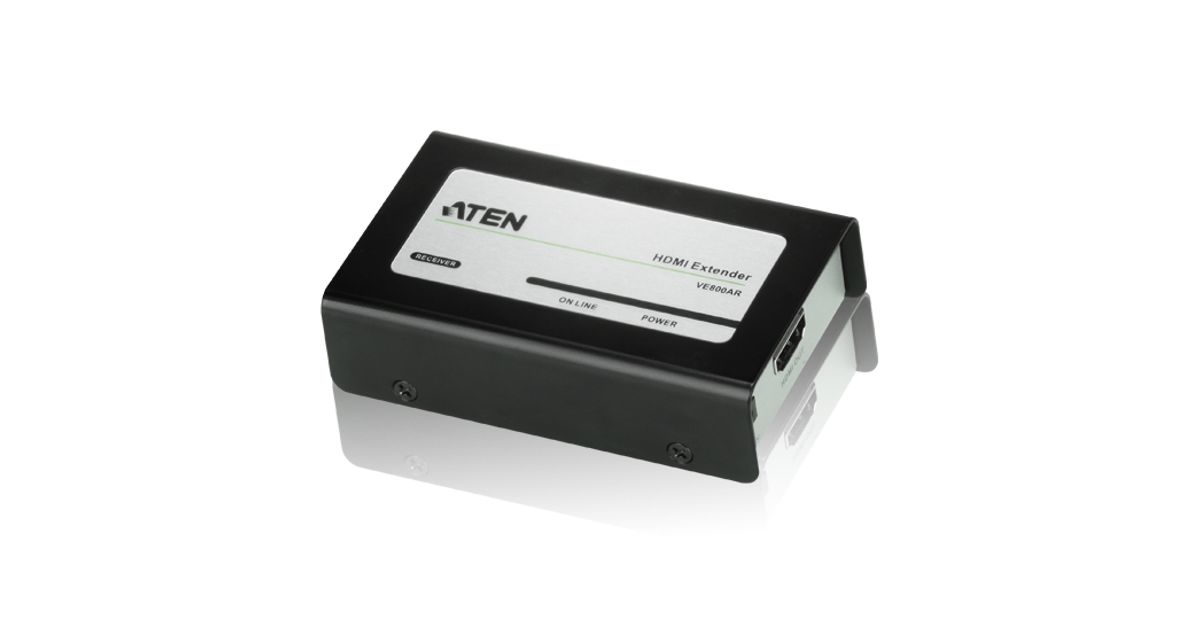

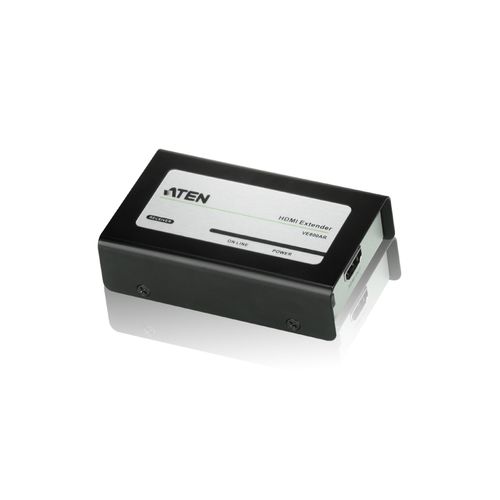

ATEN HDMI receiver (60m)
ATEN HDMI receiver (60m), 1920 x 1200 pixels, AV receiver, 60 m, Wired, Black, HDCP
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 03118544 |
| EAN | 04719264642272 |
| Manufacturer part number | VE800AR-AT-G |
| Category | VM switches and accessories |
| Features | |
|---|---|
| Type | AV receiver |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Bandwidth | 6.75 Gbit/s |
| Bandwidth | 225 MHz |
| HDCP | Y |
| Material | Metal |
| Impedance | 100 Ω |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Network | |
|---|---|
| Cable types supported | Cat5e |
| Ethernet LAN | Y |
| Performance | |
|---|---|
| Maximum transfer distance | 60 m |
| Design | |
|---|---|
| LED indicators | Y |
| Product colour | Black |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Number of HDMI outputs | 1 |

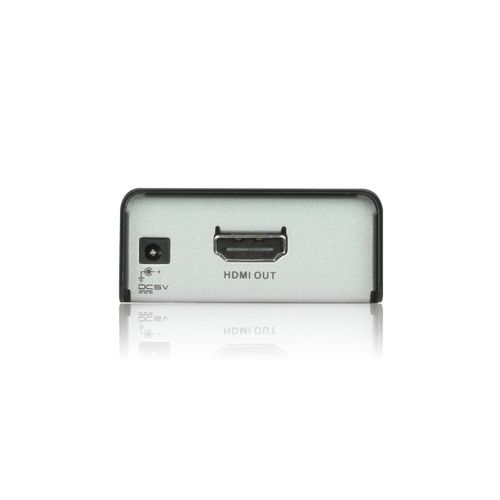

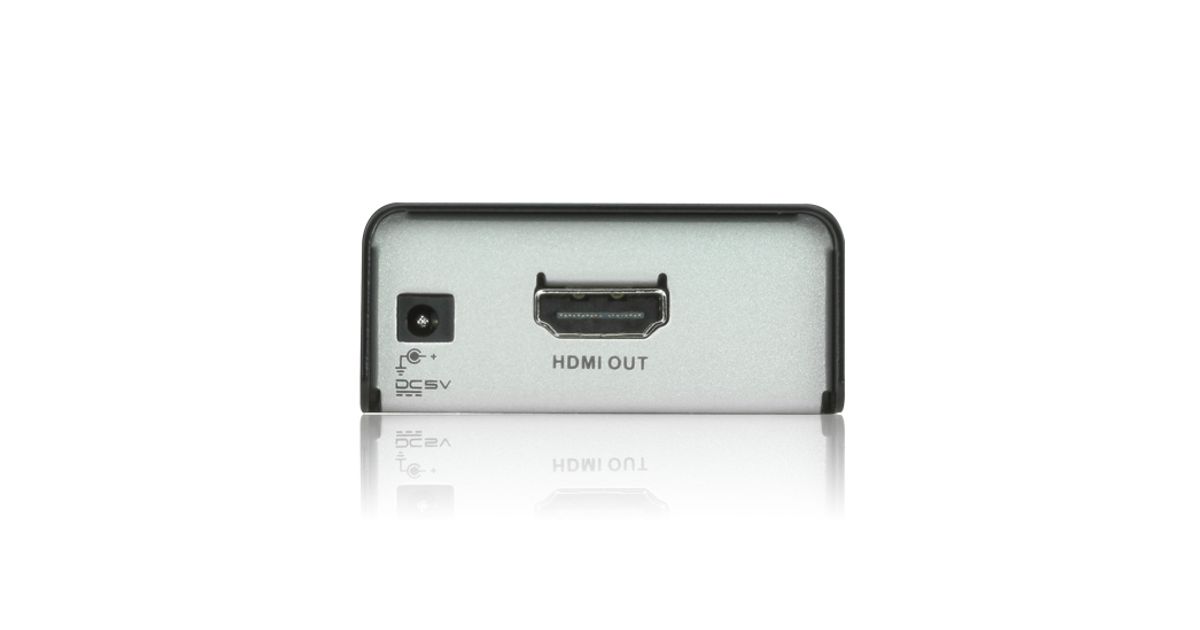

| Video out | HDMI Type A F |
| DC-in jack | Y |
| Power | |
|---|---|
| Operating voltage | 5 V |
| Power consumption (typical) | 0.75 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Weight | 315 g |
| Receiver weight | 160 g |
| Package weight | 322 g |
| Packaging data | |
|---|---|
| Receiver dimensions (W x D x H) | 550 x 90 x 23 mm |
| Package width | 59 mm |
| Package depth | 119 mm |
| Package height | 160 mm |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Manual | Y |
| Mounting kit | Y |
| Logistics data | |
|---|---|
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 178 mm |
| Master (outer) case gross weight | 6.91 kg |
| Master (outer) case net weight | 6.3 kg |
| Products per master (outer) case | 20 pc(s) |
Product Description

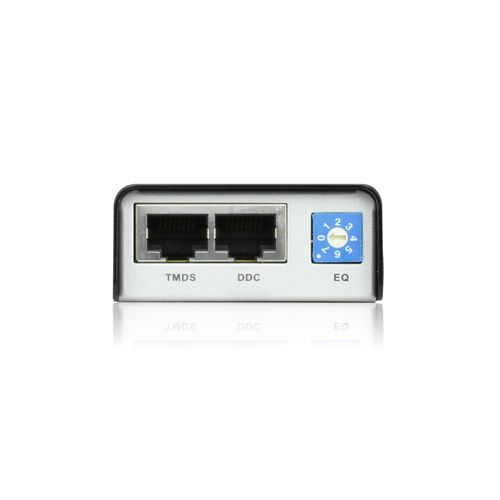

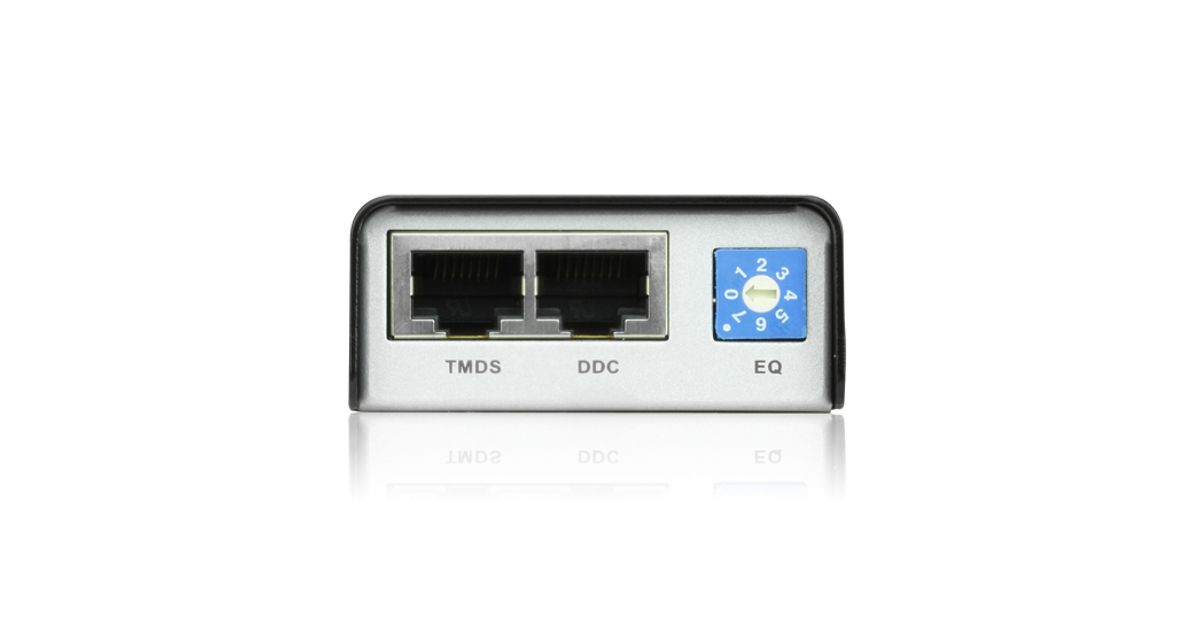

The VE800AR HDMI Receiver connects to a transmitter* to extend signals up to 60m from the source using a Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
Compatible Transmitter Units: VS1804T 4-Port HDMI Over Cat 5 Splitter
VS1808T 8-Port HDMI Over Cat 5 Splitter
1x VE800AR HDMI Receiver
1x 0AD6-1705-10EG Power Adapter
1x Mounting Kit
1x User Instructions
