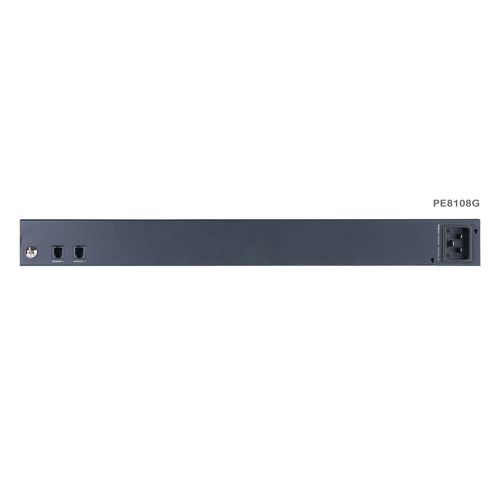

ATEN PE8108G power distribution unit (PDU) 8 AC outlet(s) 1U Black
ATEN PE8108G, Monitored, 1U, Horizontal, Metal, Black, 8 AC outlet(s)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 03118612 |
| EAN | 00672792401046 |
| Manufacturer part number | PE8108 |
| Category | VM switches and accessories |
| Design | |
|---|---|
| PDU types | Monitored |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Metal |
| Product colour | Black |
| LED indicators | LAN, Link, Power, Status |
| Ports & interfaces | |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C20 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| Management features | |
|---|---|
| Monitoring | Current |
| Power | |
|---|---|
| Nominal input voltage | 100-240 V |
| Maximum current | 10 A |
| AC input frequency | 50 - 60 Hz |
| Maximum input current per phase | 10 A |
| Other features | |
|---|---|
| Nominal output voltage | 100-240 V |
| Dimensions (WxDxH) | 219.3 x 432.4 x 44 mm |
| Weight & dimensions | |
|---|---|
| Weight | 2.87 kg |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
Product Description
Features
Power Distribution
- Space saving 1U rack mount design with rear mounting
- IEC or NEMA outlet models
- 3 digit 7-segment front panel LED shows Current / IP Address
- Remote users can monitor outlet status via web pages on their browsers
- Safe shutdown support
- Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices' circuit breaker
Remote Access
- Remote power control via TCP/IP and a built in 10/100 Ethernet port
- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
- eco PDU Power Management software – eco Sensors
- Supports SNMP Manager V3
Operation
- Local and Remote power outlet control (On, Off, Power Cycle) by individual outlets
- Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
- Easy setup and operation via a browser-based user interface
- Multibrowser support (IE, Firefox, Chrome, Safari)
- RTC support to keep the timer running during times of no power.
- Supports up to 8 user and 1 administrator accounts
Management
- Power status measurement at the PDU or Outlet level
- LED indicators for current and IP address at Outlet levels
- Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the outlet level (PE8108 / PE8208)
- Current and voltage threshold setting
- Naming support for outlets
- User outlet access assignment on an outlet-by-outlet basis.
- Event logging and syslog support
- Upgradeable firmware
- Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian
Security
- Two-level password security
- Strong security features include password protection and advanced encryption technologies – 128 bit SSL
- Remote authentication support: RADIUS
eco Sensors Energy Management Software
- Automatic discovery of all PE devices within the same intranet
- Remote real-time power measurement and monitoring
- Remote real-time power outlet management
- Remote real-time environment sensor monitoring
- Plotting/Monitoring of all PE devices
- Exceed threshold alert through SMTP and Syslog
- Power Analysis Report
Package Contents
- 1x PE8108 Power Distribution Unit
- 1x Power Cord
- 1x Rack Mount Kit
- 1x Software CD
- 1x User Instructions
