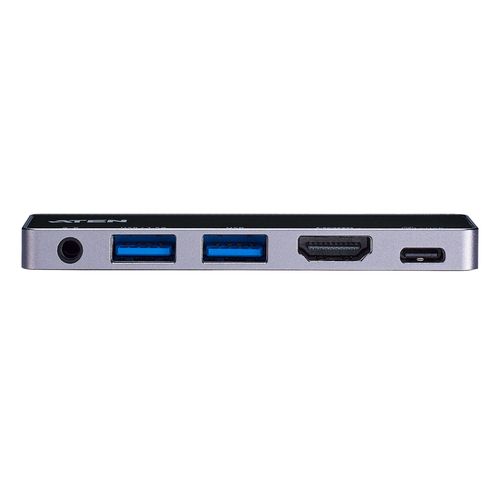

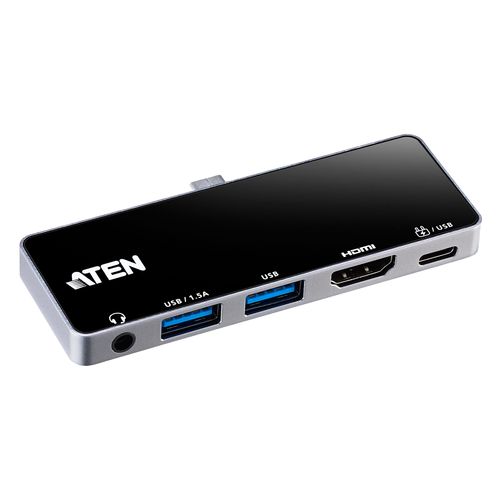

ATEN USB-C Travel Dock with Power Pass-Through
ATEN USB-C Travel Dock with Power Pass-Through, Universal, USB Type-C, Black, Silver
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 166212072 |
| EAN | 00672792012440 |
| Manufacturer part number | UH3238-AT |
| Category | Dockingstations |
| Performance | |
|---|---|
| Basic device type | Tablet/Smartphone |
| USB Type-C ports quantity | 1 |
| Power source type | USB |
| Features | |
|---|---|
| Brand compatibility | Universal |
| Material | Aluminium |
| HDCP | Y |
| Plug and Play | Y |
| HDCP version | 2.2 |
| USB Power Delivery | Y |
| USB Power Delivery revision | 3.0 |
| Harmonized System (HS) code | 84719000 |
| Design | |
|---|---|
| Product colour | Black, Silver |
| Display | |
|---|---|
| Maximum refresh rate | 60 Hz |
| Graphics | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Video | |
|---|---|
| Deep colour support | Y |
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Y |
| Docking connector type | USB Type-C |
| Audio output | 3.5 mm |
| HDMI | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Power Delivery up to | 92 W |
| Combo headphone/mic port | Y |
| HDMI connector type | Full-size |
| HDMI ports quantity | 1 |
| Other features | |
|---|---|
| 3D | Y |
| System requirements | |
|---|---|
| Mobile operating systems supported | Android 10, Android 10.0, Android 8.0, Android 9.0, iPadOS |
| Software | |
|---|---|
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
| Network | |
|---|---|
| Bluetooth | N |
| Power | |
|---|---|
| DC input voltage | 5 V |
| Weight & dimensions | |
|---|---|
| Width | 32 mm |
| Depth | 90 mm |
| Height | 8.2 mm |
| Weight | 50 g |
| Package weight | 110 g |
| Packaging data | |
|---|---|
| Quantity | 1 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 1 kg |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 240 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 170 mm |
| Master (outer) case gross weight | 2.5 kg |
| Country of origin | China |
Product Description
Designed and made to be a portable and versatile connectivity solution, the UH3238 USB-C Travel Dock with Power Pass-Through contains 5 essential ports – one audio port, two USB Type-A ports, one HDMI port, and one USB-C DC in port – to provide connectivity and power supply for users that travel and require mobile office scenarios. The Thunderbolt™ 3 and USB 3.2 Gen 1- compatible interface guarantees superior data transmission speed up to 5 Gbps. With the support for up to 4K HDMI (3840 x 2160 @ 60Hz), the device allows users to multitask at stunningly realistic UHD resolution. The UH3238 boasts a plug-and-play design and is compatible with all major operating systems (Windows®, macOS X, iPadOS, and Android). Weighing at just 44g, it is a compact, yet competent, and ideal data and power transmission solution for every mobile workstation ecosystem.
