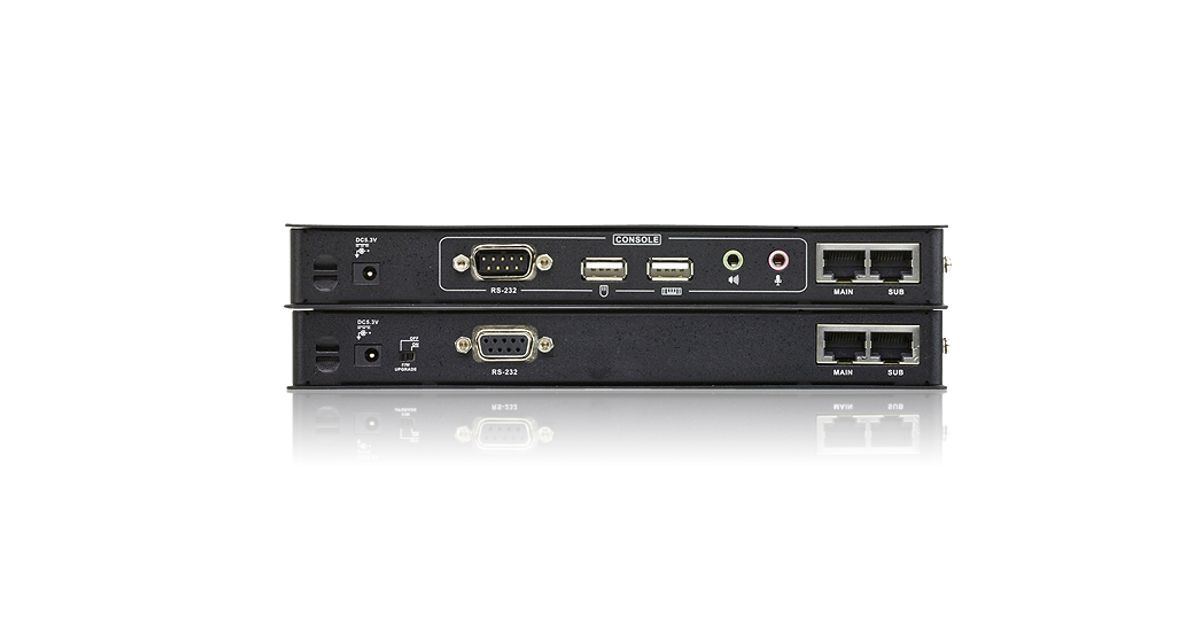

For illustrative purpose only
ATEN USB Dual View DVI KVM Extender with Audio and RS-232 (60m)
ATEN USB Dual View DVI KVM Extender with Audio and RS-232 (60m), Transmitter & receiver, Wired, 60 m, Cat5, Cat5e, 1920 x 1200 pixels, 1920 x 1200, 1024 x 768
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 03118499 |
| EAN | 04719264640025 |
| Manufacturer part number | CE604-AT-G |
| Category | KVM switches |
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Material | Metal |
| Harmonized System (HS) code | 84733080 |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Maximum transfer distance | 60 m |
| Maximum digital resolution | 1920 x 1200 pixels |
| Network | |
|---|---|
| Cable types supported | Cat5, Cat5e |
| Design | |
|---|---|
| Rack mounting | Y |
| Product colour | Black |
| LED indicators | Link, Power |
| Other features | |
|---|---|
| Supported resolutions | 1920 x 1200, 1024 x 768 |
| Transmitter | |
|---|---|
| Transmitter video port type | DVI-D |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 2 |
| Receiver | |
|---|---|
| Receiver local video port type | DVI-D |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 2 |
| Power | |
|---|---|
| AC adapter output voltage | 5.3 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Transmitter width | 20.2 cm |
| Transmitter depth | 8.53 cm |
| Transmitter height | 2.5 cm |
| Transmitter weight | 490 g |
| Receiver width | 20.2 cm |
| Receiver depth | 8.67 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 490 g |
| Package weight | 2.06 kg |
| Weight | 1.99 kg |
| Packaging data | |
|---|---|
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Quick installation guide | Y |
| Packaging content | |
|---|---|
| Manual | Y |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 9.95 kg |
| Master (outer) case width | 342 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 11 kg |
| Products per master (outer) case | 5 pc(s) |
Product Description
The CE604 is a DVI Dual View USB based KVM Extender that features Dual View functionality, which enables the video output to seamlessly display on two monitors. With RS-232 serial functionality, it allows access to a computer system from a remote console up to 60 m away. The CE604 is built for control and security purposes, and is targeted towards financial and industrial markets.
1x CE604L (Local Unit)
1x CE604R (Remote Unit)
1x 2L-7D02U USB DVI KVM Cable Set (1.8m)
1x LIN5-26W-W11G DVI Cable (1.8m)
2x 0AD8-1605-24M1 Power Adapters
1x Mounting Kit
1x User Instructions
1x CE604L (Local Unit)
1x CE604R (Remote Unit)
1x 2L-7D02U USB DVI KVM Cable Set (1.8m)
1x LIN5-26W-W11G DVI Cable (1.8m)
2x 0AD8-1605-24M1 Power Adapters
1x Mounting Kit
1x User Instructions
