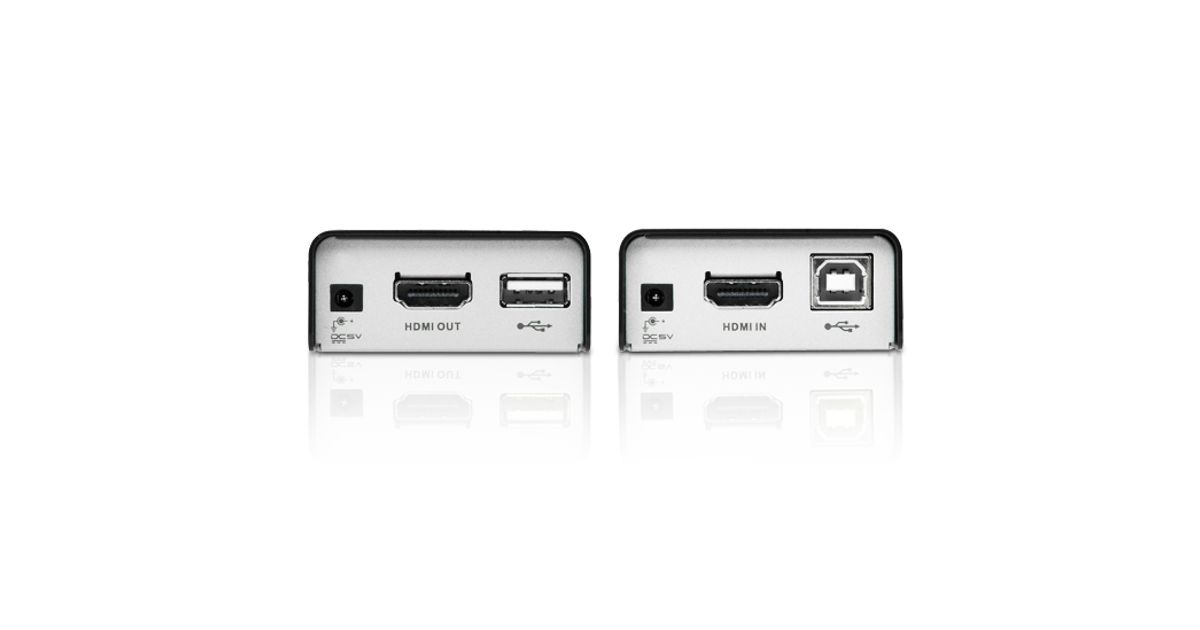

For illustrative purpose only
Aten USB & HDMI Extender CAT5e/6, USB2.0 Full Speed (12Mbit/s) 1080P (40m) / 1080i (60m)
Aten USB & HDMI Extender CAT5e/6, USB2.0 Full Speed (12Mbit/s) 1080P (40m) / 1080i (60m), 1920 x 1200 pixels, AV transmitter & receiver, 60 m, Wired, 3D, HDCP
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 03118552 |
| EAN | 00672792004285 |
| Manufacturer part number | 14016715 |
| Category | VM switches and accessories |
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Extended display identification data (EDID) | Y |
| Electrostatic Discharge (ESD) protection | Y |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Supported video modes | 1080i,1080p |
| Supported graphics resolutions | 640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1600 x 1200 (UXGA),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA) |
| Bandwidth | 6.75 Gbit/s |
| Bandwidth | 225 MHz |
| HDCP | Y |
| Material | Metal |
| USB connector type | USB Type-A, USB Type-B |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Network | |
|---|---|
| Cable types supported | Cat5e |
| Performance | |
|---|---|
| Maximum transfer distance | 60 m |
| Other features | |
|---|---|
| 3D | Y |
| Design | |
|---|---|
| Product colour | Black |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Y |
| Power | |
|---|---|
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Power consumption (TX) | 1.04 W |
| Power consumption (RX) | 0.75 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Weight | 495 g |
| Receiver weight | 160 g |
| Transmitter dimensions (WxDxH) | 90 x 57.4 x 24 mm |
| Transmitter weight | 160 g |
| Package weight | 652 g |
| Packaging data | |
|---|---|
| Receiver dimensions (W x D x H) | 90 x 57.4 x 24 mm |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Cables included | USB |
| Manual | Y |
| Mounting kit | Y |
| Logistics data | |
|---|---|
| Master (outer) case width | 31.5 cm |
| Master (outer) case length | 49 cm |
| Master (outer) case height | 33.8 cm |
| Master (outer) case gross weight | 13.5 kg |
| Master (outer) case net weight | 9.9 kg |
| Products per master (outer) case | 20 pc(s) |
Product Description
The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters.
The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.
1x VE803T HDMI USB Extender
1x VE803R HDMI USB Extender
1x 0AD6-1705-10EG Power Adapter
1x USB Cable (1.8 m)
1x Mounting Kit
1x User Instructions
The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.
1x VE803T HDMI USB Extender
1x VE803R HDMI USB Extender
1x 0AD6-1705-10EG Power Adapter
1x USB Cable (1.8 m)
1x Mounting Kit
1x User Instructions
