For illustrative purpose only

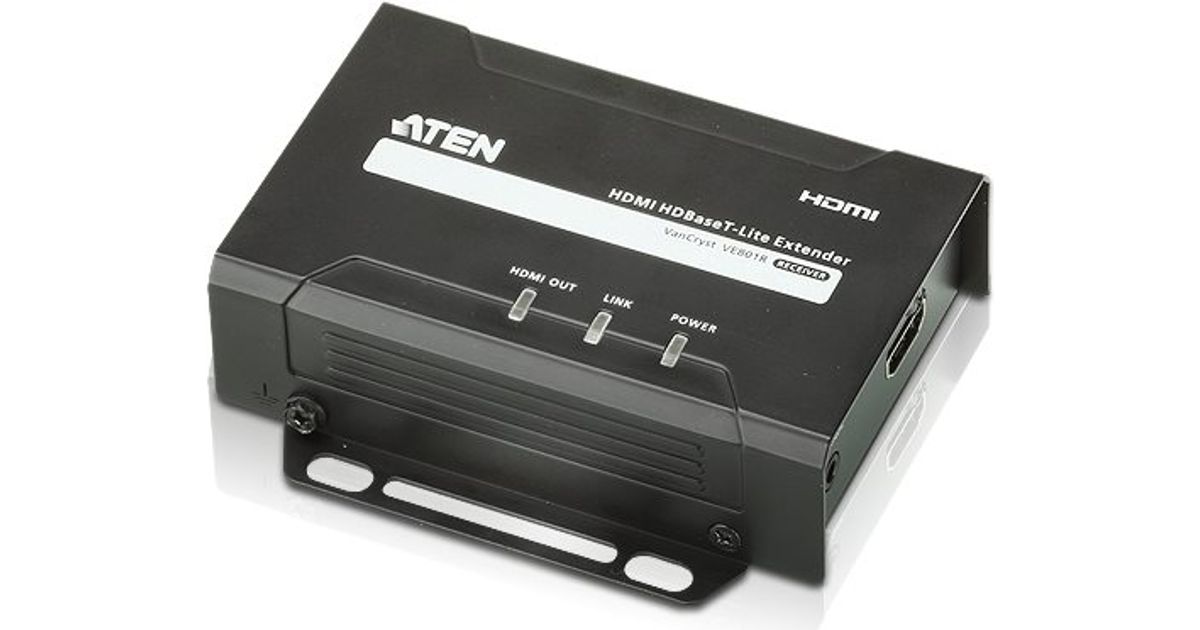

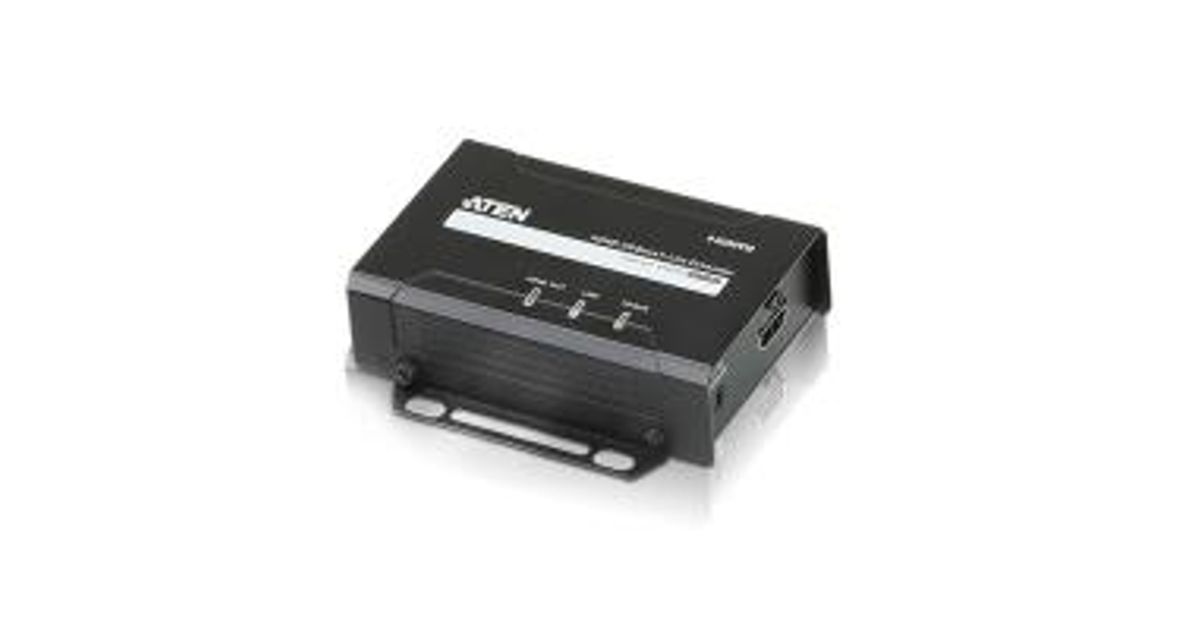

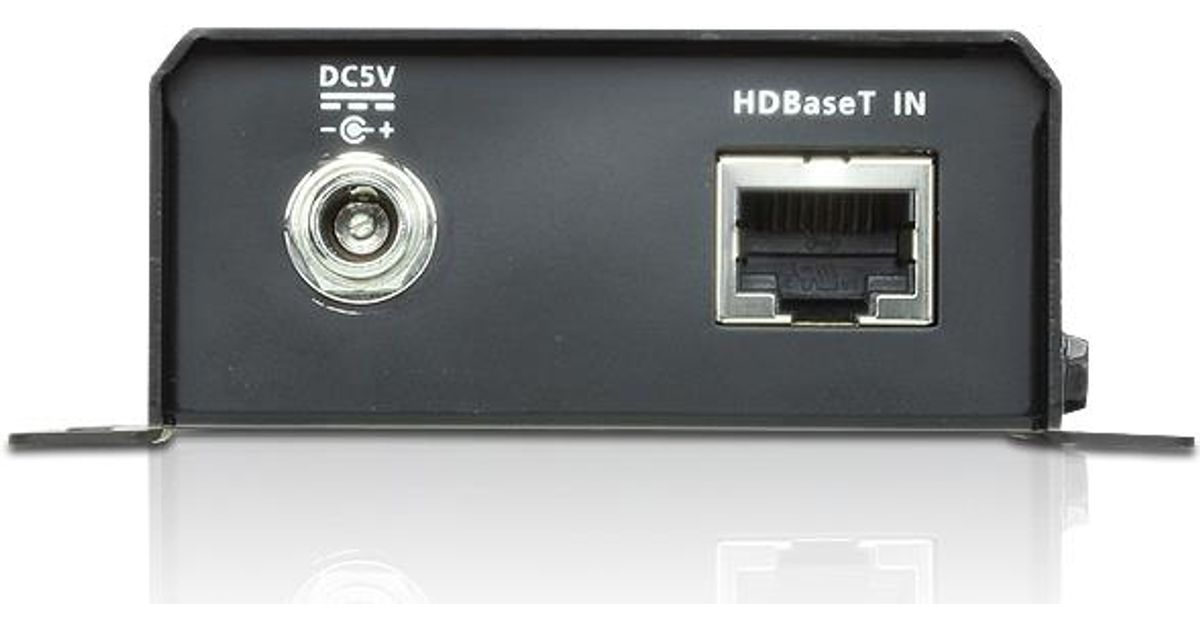

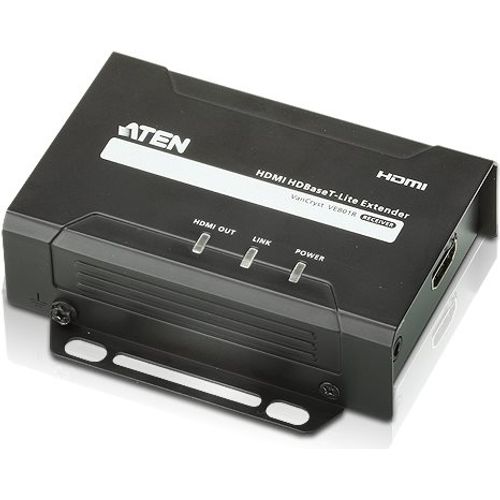

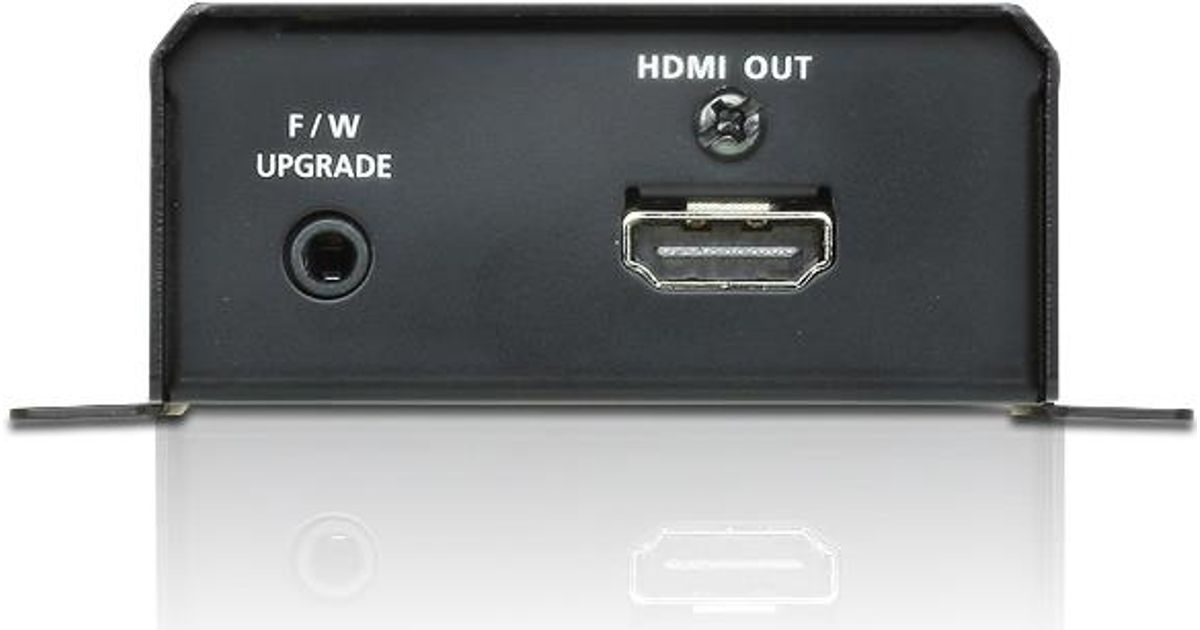

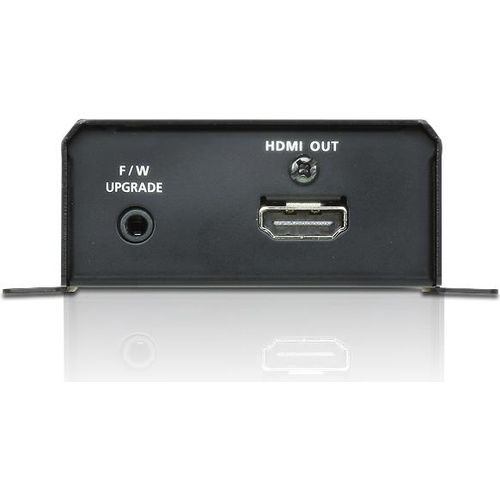

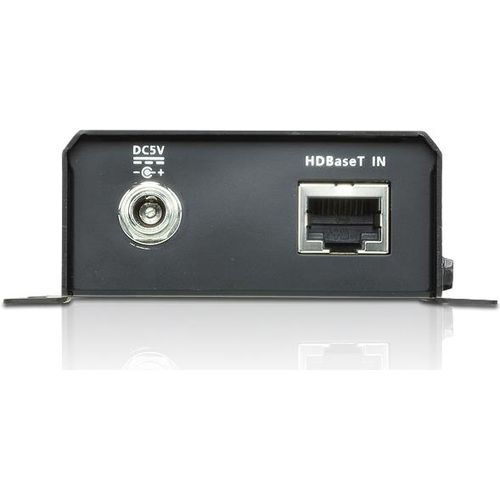

Aten VE801R-AT-G AV extender AV receiver Black
Aten VE801R-AT-G, 4096 x 2160 pixels, AV receiver, 70 m, Wired, 3D, HDCP
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 03118510 |
| EAN | 00672792006173 |
| Manufacturer part number | VE801R |
| Category | VM switches and accessories |
| Features | |
|---|---|
| Type | AV receiver |
| Supported graphics resolutions | 3840 x 2160,4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Y |
| Material | Metal |
| Consumer Electronics Control (CEC) support | Y |
| Plug and Play | Y |
| Impedance | 100 Ω |
| HDCP version | 2.2 |
| HDBaseT certified | Y |
| Graphics | |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Network | |
|---|---|
| Cable types supported | Cat5e,Cat6,Cat6a |
| Performance | |
|---|---|
| Maximum transfer distance | 70 m |
| Firmware upgradeable | Y |
| Display | |
|---|---|
| Maximum refresh rate | 60 Hz |
| Other features | |
|---|---|
| 3D | Y |
| External power adapter | Y |
| Design | |
|---|---|
| Rack mounting | Y |
| Product colour | Black |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| RJ-45 input ports | 1 |
| HDBaseT port | Y |
| Number of HDMI outputs | 1 |
| DC-in jack | Y |
| Power | |
|---|---|
| Operating voltage (receiver) | 5 V |
| Power consumption (RX) | 4.24 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Width | 94.2 mm |
| Depth | 66 mm |
| Height | 29 mm |
| Weight | 347 g |
| Package weight | 441 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 119 mm |
| Package height | 160 mm |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Manual | Y |
| Logistics data | |
|---|---|
| Master (outer) case width | 25 cm |
| Master (outer) case length | 32.5 cm |
| Master (outer) case height | 17.5 cm |
| Master (outer) case gross weight | 4.73 kg |
| Master (outer) case net weight | 3.47 kg |
| Products per master (outer) case | 10 pc(s) |
