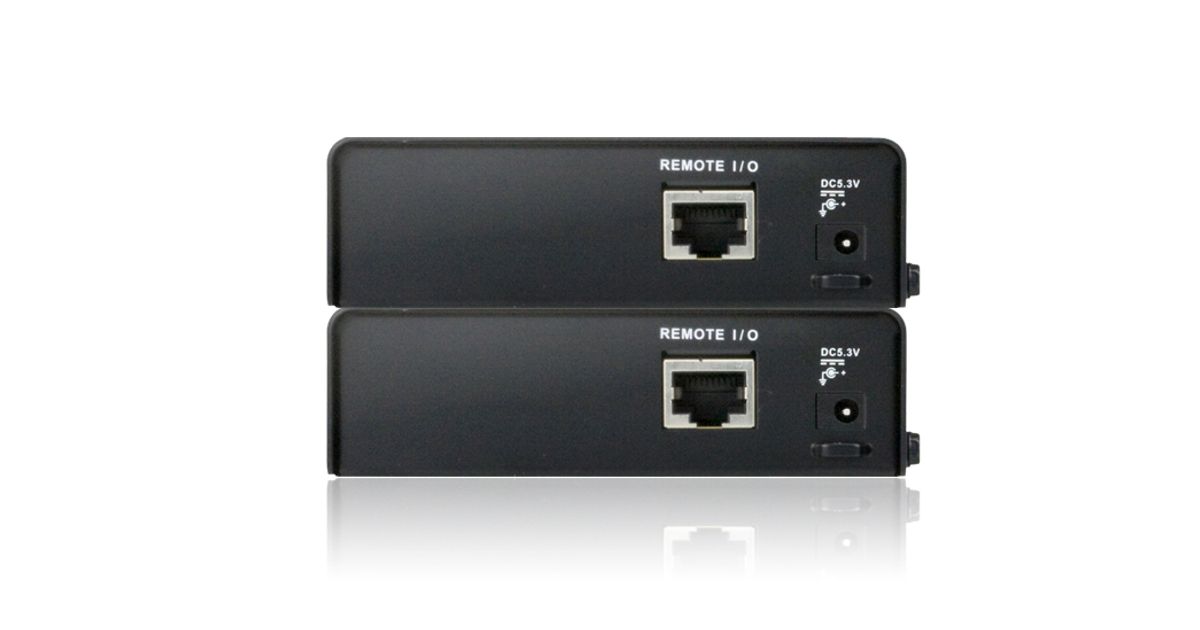

Aten VE812-AT-G AV extender AV transmitter & receiver Black
Aten VE812-AT-G, 4096 x 2160 pixels, AV transmitter & receiver, 100 m, Wired, 3D, HDCP
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 03118563 |
| EAN | 06727920044382 |
| Manufacturer part number | VE812-AT-G |
| Category | VM switches and accessories |
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Electrostatic Discharge (ESD) protection | Y |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Supported video modes | 1080p |
| Supported graphics resolutions | 3840 x 2160,4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Y |
| Material | Metal |
| Consumer Electronics Control (CEC) support | Y |
| Impedance | 100 Ω |
| HDCP version | 2.2 |
| Graphics | |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Network | |
|---|---|
| Cable types supported | Cat5,Cat5e,Cat6 |
| Performance | |
|---|---|
| Maximum transfer distance | 100 m |
| Display | |
|---|---|
| Maximum refresh rate | 60 Hz |
| Other features | |
|---|---|
| 3D | Y |
| Design | |
|---|---|
| Product colour | Black |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Y |
| Power | |
|---|---|
| Operating voltage (transmitter) | 5.3 V |
| Operating voltage (receiver) | 5.3 V |
| Power consumption (TX) | 2.22 W |
| Power consumption (RX) | 5.06 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Weight | 1.16 kg |
| Receiver weight | 410 g |
| Transmitter dimensions (WxDxH) | 141.7 x 103 x 30 mm |
| Transmitter weight | 400 g |
| Package weight | 1.47 kg |
| Packaging data | |
|---|---|
| Receiver dimensions (W x D x H) | 141.7 x 103 x 30 mm |
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Manual | Y |
| Mounting kit | Y |
| Logistics data | |
|---|---|
| Master (outer) case width | 29.2 cm |
| Master (outer) case length | 51.7 cm |
| Master (outer) case height | 19.4 cm |
| Master (outer) case gross weight | 7.87 kg |
| Master (outer) case net weight | 5.8 kg |
| Products per master (outer) case | 5 pc(s) |
