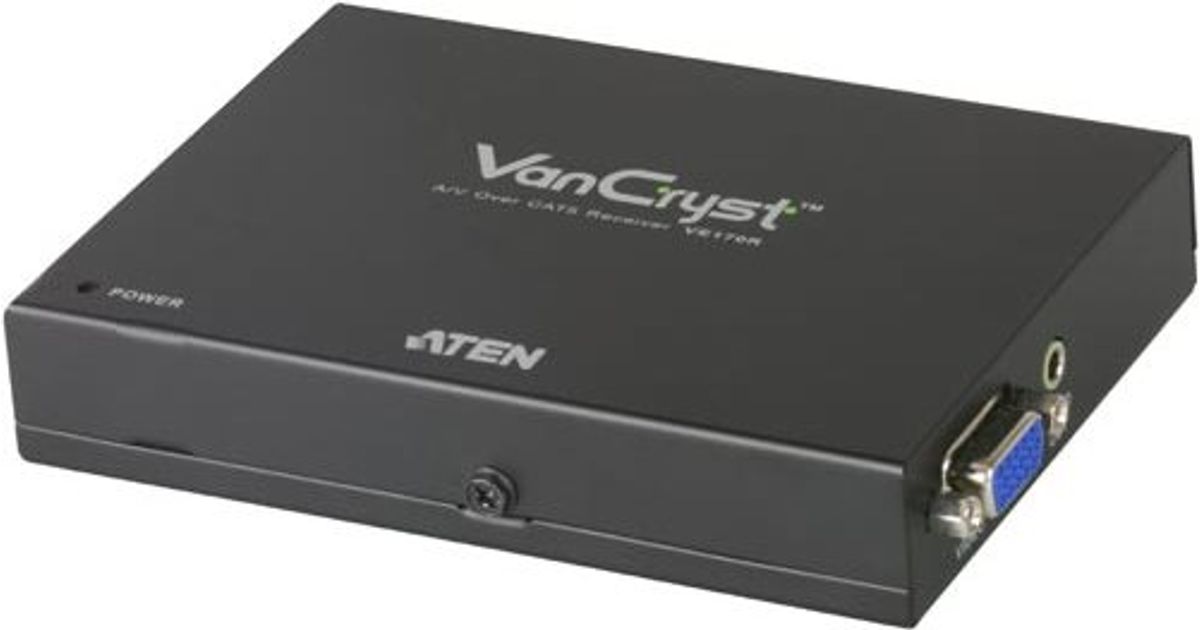

Aten VGA Over Cat5e/6 Audio/Video Receiver (300m)
Aten VGA Over Cat5e/6 Audio/Video Receiver (300m), 1920 x 1200 pixels, AV receiver, 300 m, Wired, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 03118550 |
| EAN | 00672792002625 |
| Manufacturer part number | VE170R-AT-G |
| Category | Wall, ceiling and other mounts |
| Features | |
|---|---|
| Type | AV receiver |
| Electrostatic Discharge (ESD) protection | Y |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Supported graphics resolutions | 1024 x 768 (XGA),1600 x 1200 (UXGA),1920 x 1200 (WUXGA) |
| Bandwidth | 300 MHz |
| Material | Metal |
| Impedance | 75 Ω |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Network | |
|---|---|
| Cable types supported | Cat5 |
| Performance | |
|---|---|
| Maximum transfer distance | 300 m |
| Display | |
|---|---|
| Maximum refresh rate | 60 Hz |
| Design | |
|---|---|
| Rack mounting | Y |
| Product colour | Black |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) output ports | 1 |
| Audio output | 1 |
| DC-in jack | Y |
| Power | |
|---|---|
| Operating voltage (receiver) | 5.3 V |
| Power consumption (RX) | 3.32 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Width | 127.7 mm |
| Depth | 90.4 mm |
| Height | 22.6 mm |
| Weight | 460 g |
| Package weight | 560 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Manual | Y |
| Mounting kit | Y |
| Logistics data | |
|---|---|
| Master (outer) case width | 25 cm |
| Master (outer) case length | 32.5 cm |
| Master (outer) case height | 17.5 cm |
| Master (outer) case gross weight | 3.2 kg |
| Master (outer) case net weight | 2.3 kg |
| Products per master (outer) case | 5 pc(s) |
Product Description
The VE170R A/V Over Cat 5 Receiver connects to a transmitter* to extend signals up to 300m from the source using a Cat 5e cable. It is a cost-effective and efficient solution for sending and receiving high quality audio and video content.
1x VE170R A/V Over Cat 5 Receiver
1x Power Adapter
1x Mounting Kit (1 pc)
1x User Instructions
1x VE170R A/V Over Cat 5 Receiver
1x Power Adapter
1x Mounting Kit (1 pc)
1x User Instructions
