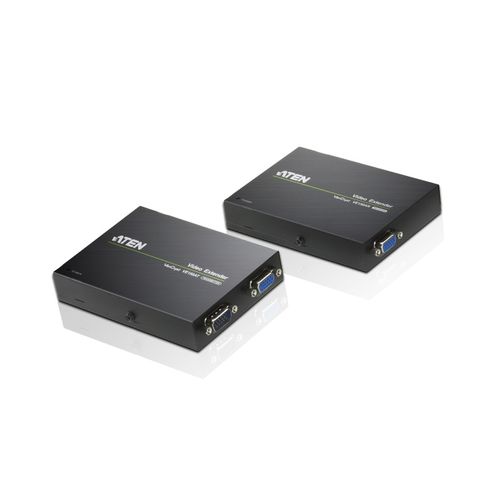

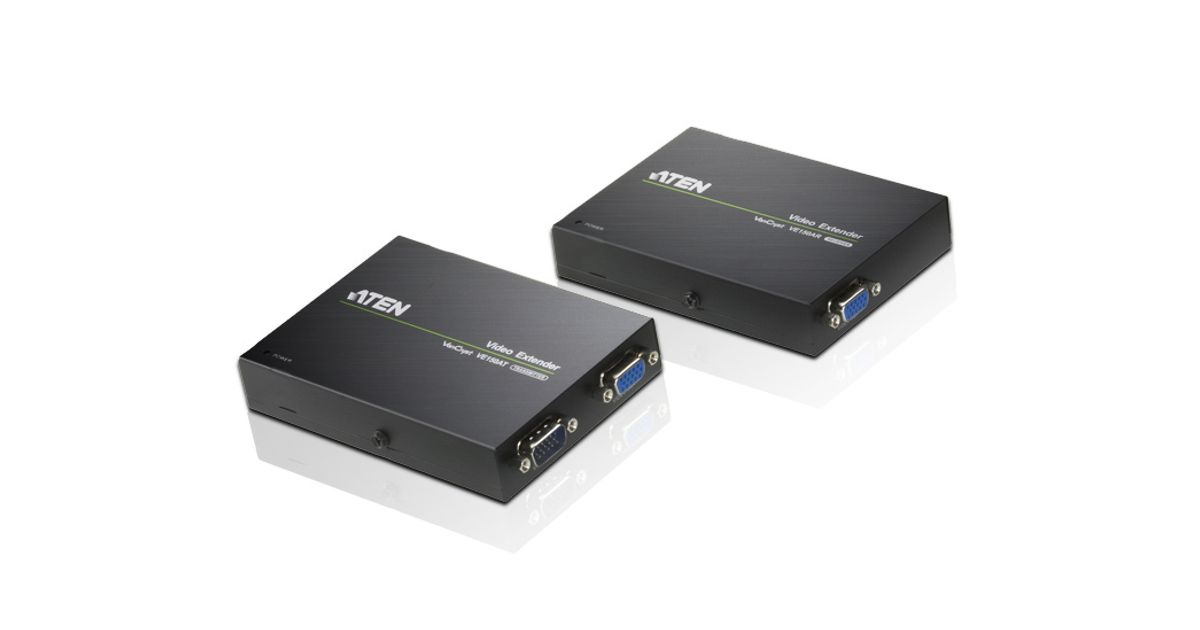

ATEN VGA Over Cat5e/6 Video Extender 150meter
ATEN VGA Over Cat5e/6 Video Extender 150meter, 1920 x 1200 pixels, AV transmitter & receiver, 150 m, Wired, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 03118562 |
| EAN | 04710423778894 |
| Manufacturer part number | VE150-AT-G |
| Category | KVM switches |
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1920 x 1200 (WUXGA) |
| Material | Metal |
| Plug and Play | Y |
| Impedance | 75 Ω |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Network | |
|---|---|
| Cable types supported | Cat5 |
| Performance | |
|---|---|
| Maximum transfer distance | 150 m |
| Design | |
|---|---|
| Rack mounting | Y |
| Product colour | Black |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| HDBaseT port | Y |
| VGA (D-Sub) input ports | 1 |
| Video in | 1 x HDB-15 |
| Video out | 1 x HDB-15 |
| Power | |
|---|---|
| Power consumption (transmitter) (max) | 1 W |
| Power consumption (receiver) (max) | 1.2 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Weight | 970 g |
| Receiver weight | 240 g |
| Transmitter dimensions (WxDxH) | 127.7 x 90.4 x 22.6 mm |
| Transmitter weight | 240 g |
| Package weight | 1.11 kg |
| Packaging data | |
|---|---|
| Receiver dimensions (W x D x H) | 127.7 x 90.4 x 22.6 mm |
| Quantity per pack | 2 pc(s) |
| Package width | 62 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Cables included | VGA |
| Manual | Y |
| Mounting kit | Y |
| Logistics data | |
|---|---|
| Master (outer) case width | 300 mm |
| Master (outer) case length | 336 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 5.92 kg |
| Master (outer) case net weight | 4.85 kg |
| Products per master (outer) case | 5 pc(s) |
Product Description
VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.
1x VE150AT Video Extender (Local unit)
1x VE150AR Video Extender (Remote unit)
2x Power Adapters
1x VGA Cable
1x Mounting Kit
1x User Instructions
1x VE150AT Video Extender (Local unit)
1x VE150AR Video Extender (Remote unit)
2x Power Adapters
1x VGA Cable
1x Mounting Kit
1x User Instructions
