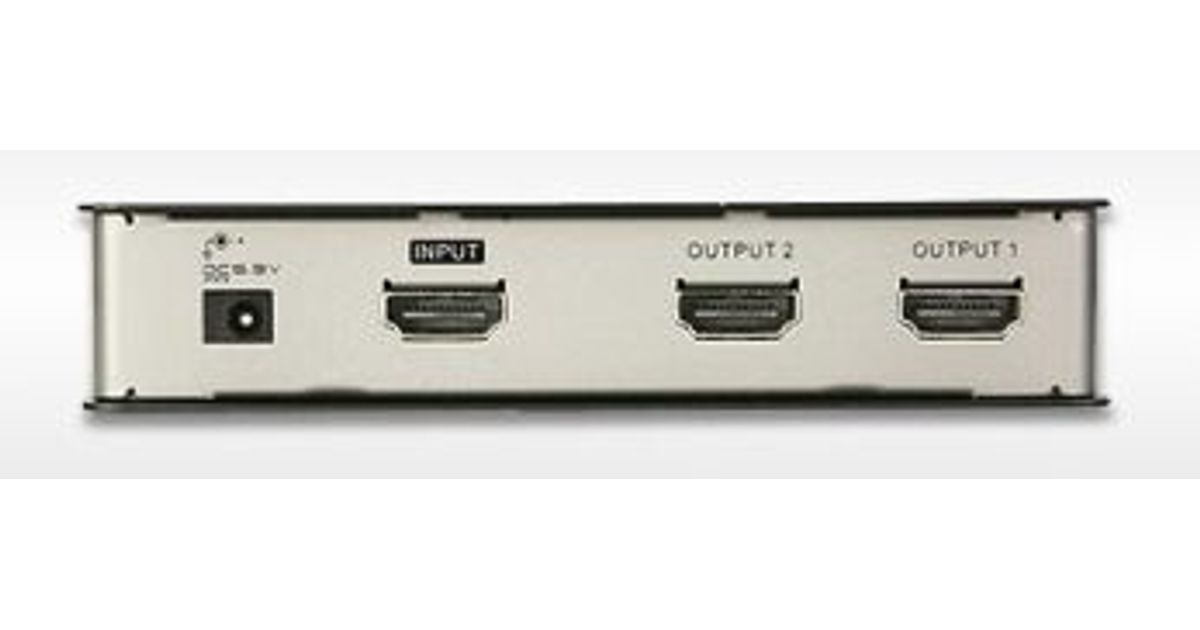

ATEN VS182 video splitter HDMI 2x HDMI
ATEN VS182, HDMI, 2x HDMI, 1920 x 1200 pixels, Black, 20 m, 1600 x 1200 (UXGA),1920 x 1200 (WUXGA)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 322929615 |
| EAN | 04710423779921 |
| Manufacturer part number | VS182 |
| Category | Other AV & electronics |
| Ports & interfaces | |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Video out | 2x HDMI |
| DC-in jack | Y |
| Network | |
|---|---|
| Ethernet LAN | N |
| Maximum operating distance | 20 m |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Design | |
|---|---|
| Product colour | Black |
| Performance | |
|---|---|
| Full HD | N |
| Other features | |
|---|---|
| Remote control included | N |
| Dimensions (WxDxH) | 125 x 81.5 x 25 mm |
| Features | |
|---|---|
| Supported graphics resolutions | 1600 x 1200 (UXGA),1920 x 1200 (WUXGA) |
| Power LED | Y |
| Supported video modes | 1080i,1080p,480p,720p |
| Power | |
|---|---|
| Power consumption (typical) | 2 W |
| USB powered | N |
| Packaging content | |
|---|---|
| Manual | Y |
| Cables included | HDMI |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Product Description
Features
- Connects one HDMI A/V source to two HDMI displays at the same time
- Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), WUXGA (1920x1200)
- Cascade distance: Source to Device -1.8m, Device to Device-15m,Device to Display-20m
- HDMI (Deep color)
- Cascadable to 3 levels - provides up to 8 HDMI signals
- Long distance transmission - 20 m (24 AWG)
- DDC compatible
- HDCP 1.1 compatible
- Signaling rates up to 2.25Gbits in support of 1080p display
- All-metal casing
- LED indication of display devices
- Plug-and-play - no software installation required
- Easy and affordable way to take your home theater system to the next level, or upgrade presentations, training, and video broadcasts in a corporate, educational, or commercial setting
Package Contents
- 1x HDMI Splitter
- 1x Standard HDMI cable
- 1x 0AD6-1605-09EG Power Adapter
- 1x User Instructions
