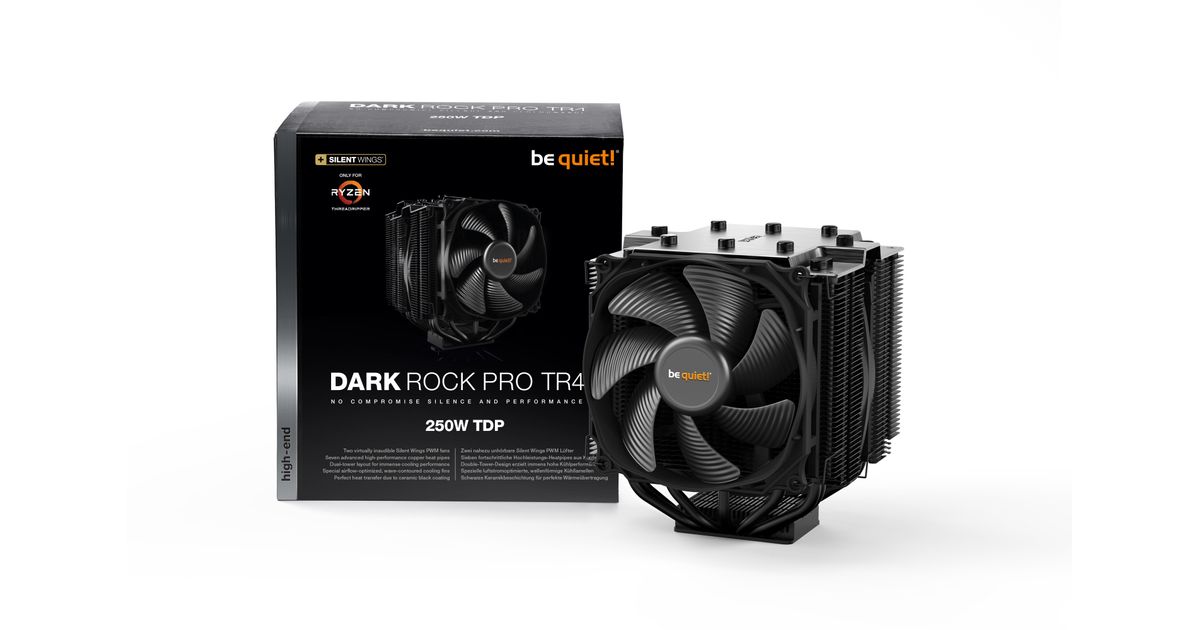

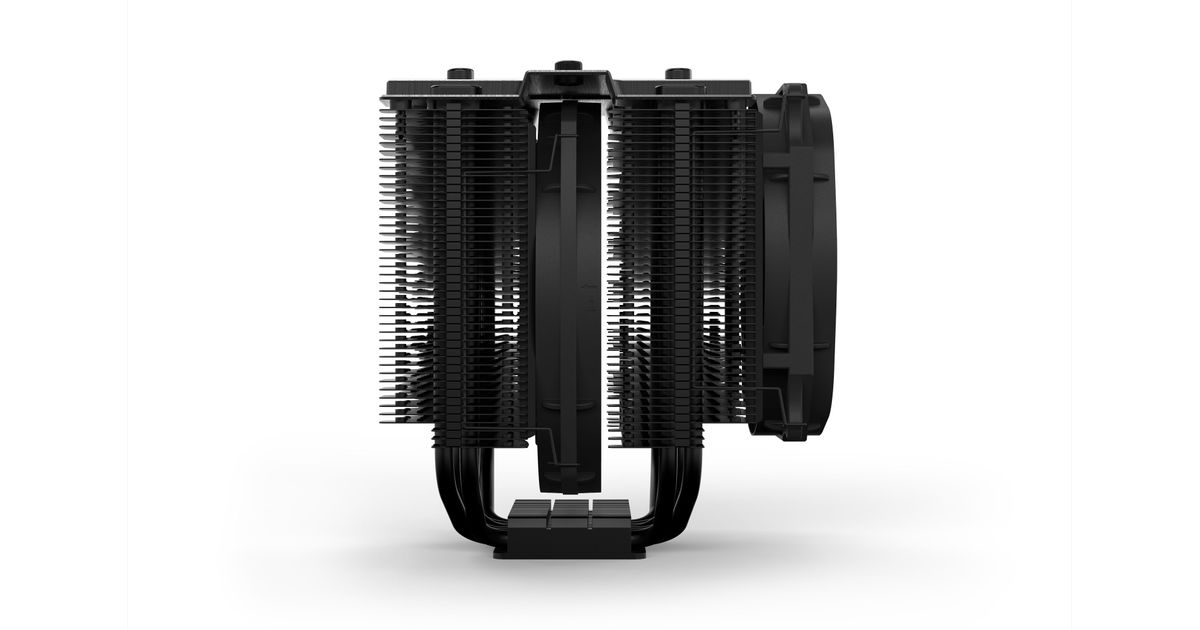

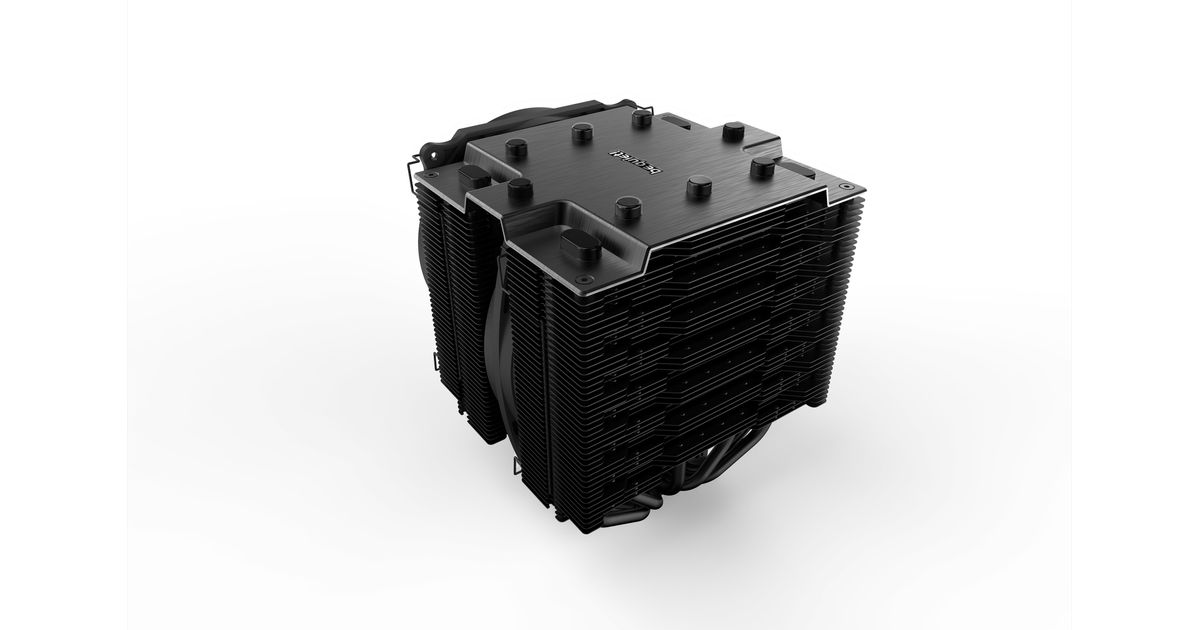

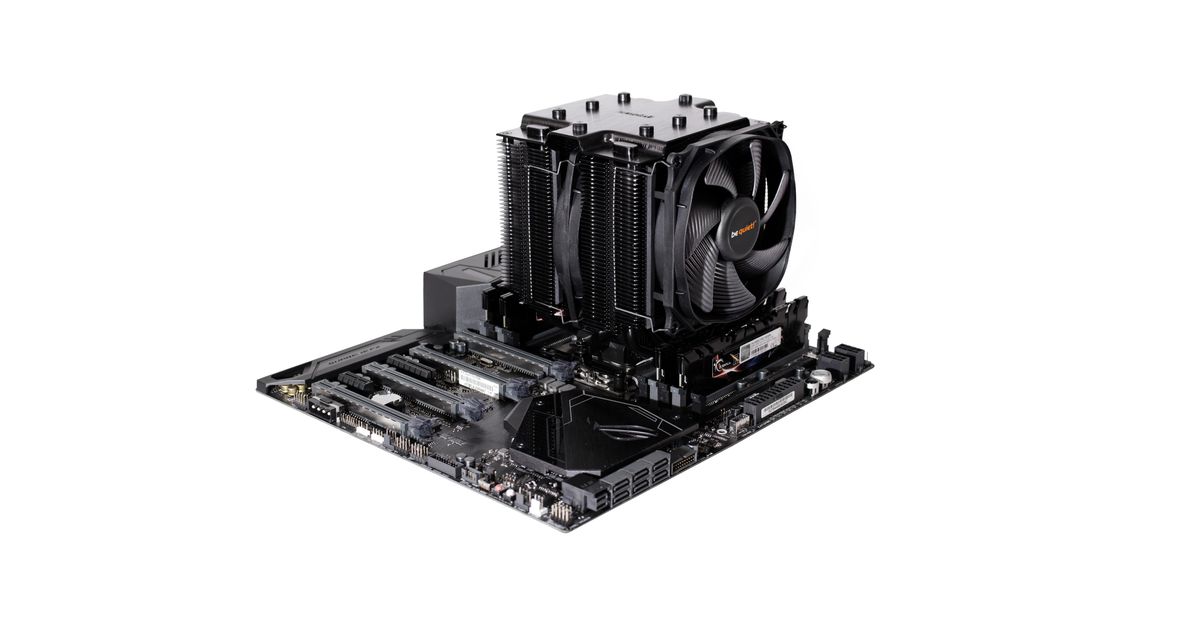

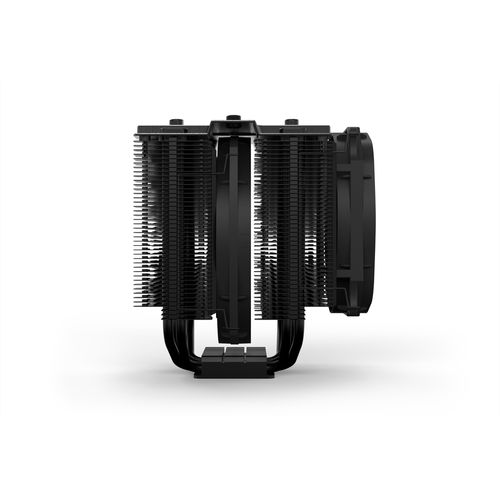

be quiet! Dark Rock Pro TR4 Processor Cooler 120/135 mm
be quiet! Dark Rock Pro TR4, Cooler, 120/135 mm, 1500 RPM, 12.8 dB, 24.3 dB
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | be quiet! |
| Product code | 03118945 |
| EAN | 04260052186985 |
| Manufacturer part number | BK023 |
| Category | Cooling |
| Features | |
|---|---|
| Suitable location | Processor |
| Type | Cooler |
| Material | Aluminium |
| Harmonized System (HS) code | 84733080 |
| Performance | |
|---|---|
| Fan diameter | 120/135 mm |
| Supported processor sockets | Socket TR4, Socket sTRX4 |
| Compatible processor series | AMD Ryzen |
| Rotational speed (max) | 1500 RPM |
| Noise level (low speed) | 12.8 dB |
| Noise level (high speed) | 24.3 dB |
| Pulse-width modulation (PWM) support | Y |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Design | |
|---|---|
| Number of fans | 2 fan(s) |
| Number of heat pipes | 7 |
| Fan connector | 4-pin |
| Power | |
|---|---|
| Rated current | 0.08 A |
| Processor | |
|---|---|
| Thermal Design Power (TDP) | 250 W |
| Weight & dimensions | |
|---|---|
| Weight | 1.18 kg |
| Fan dimensions (W x D x H) | 135 x 135 x 22 mm |
| Heat pipes diameter | 6 mm |
| Package weight | 1.58 kg |
| Packaging data | |
|---|---|
| Package width | 205 mm |
| Package depth | 181 mm |
| Package height | 212 mm |
| Package type | Box |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Packaging content | |
|---|---|
| Cables included | Fan |
| Mounting kit | Y |
| Other features | |
|---|---|
| Thermal grease | Y |
| Mean time to failure (MTTF) | 300000 h |
| Logistics data | |
|---|---|
| Master (outer) case width | 561 mm |
| Master (outer) case length | 427 mm |
| Master (outer) case height | 459 mm |
| Master (outer) case gross weight | 20.8 kg |
| Products per master (outer) case | 12 pc(s) |
Product Description
Dark Rock Pro TR4 offers immense cooling performance of 250W TDP and virtually inaudible operation. Excellent for high-end systems and demanding workstations.
