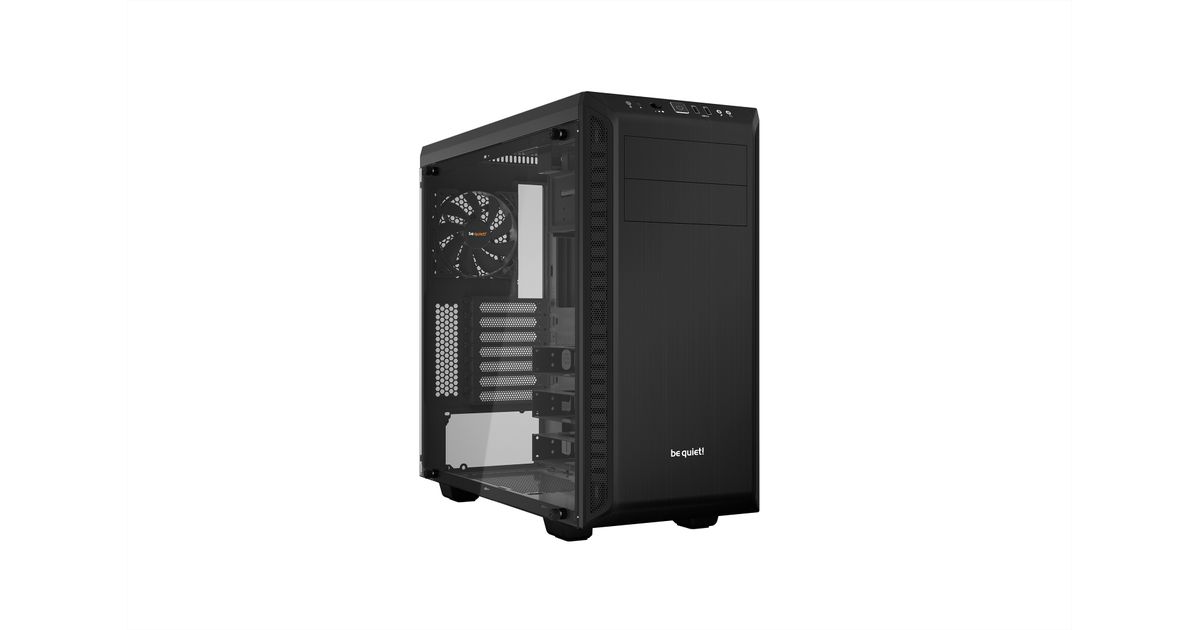

be quiet! Pure Base 600 Window Midi Tower Black
be quiet! Pure Base 600 Window, Midi Tower, PC, Black, ATX, micro ATX, Mini-ITX, ABS synthetics, Plastic, Steel, Tempered glass, Gaming
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | be quiet! |
| Product code | 03118905 |
| EAN | 04260052185445 |
| Manufacturer part number | KZBQTI000BGW021 |
| Category | Desktop cases |
| Design | |
|---|---|
| Form factor | Midi Tower |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 3 |
| Number of 5.25" bays | 2 |
| Number of 2.5" bays | 8 |
| Number of internal 3.5" bays | 3 |
| Number of external 5.25" bays | 2 |
| Number of expansion slots | 7 |
| Side window | Y |
| Anti-dust filter | Y |
| Cable management | Y |
| LED indicators | Y |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 42.5 cm |
| Maximum PSU length | 21 cm |
| Fan connector | 3-pin |
| Features | |
|---|---|
| Type | PC |
| Material | ABS synthetics, Plastic, Steel, Tempered glass |
| Certification | CE, RoHS |
| Harmonized System (HS) code | 84733080 |
| Performance | |
|---|---|
| Suitable for | Gaming |
| Maximum airflow | 55.8 cfm |
| Noise level (high speed) | 17.1 dB |
| Mean time between failures (MTBF) | 80000 h |
| Power supply | |
|---|---|
| Power supply included | N |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Y |
| Audio output | Y |
| Cooling | |
|---|---|
| Front fans installed | 1x 140 mm |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Fan rated current | 0.09 A |
| Front radiator fan sizes supported | 120,140,240,280,360 mm |
| Rear radiator fan sizes supported | 120 mm |
| Top radiator fan sizes supported | 120,240,360 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Width | 220 mm |
| Depth | 492 mm |
| Height | 470 mm |
| Weight | 8.45 kg |
| Material thickness | 1 mm |
| Package weight | 9.84 kg |
| Packaging data | |
|---|---|
| Package width | 280 mm |
| Package depth | 515 mm |
| Package height | 565 mm |
Product Description
Exceptionally silent and functional
Pure Base 600 Window offers a great deal of functionality and features for an attractive price.
HIGHLY VERSATILE CONSTRUCTION
Maximum of possibilities for your desired system
Pure Base 600 offers many possibilities for system component selection. The 3 HDD slots can be repositioned to allow installation of the largest of graphics cards and the ODD cage is removable for maximum flexibility of water cooling and drives.
OPTIMIZED FOR RADIATORS
Full choice for water cooling
Pure Base 600 was optimized to be the perfect case for liquid cooling. 3 areas are specially designed to allow them to be added: front, top and rear. All sizes of radiator up to 360mm are possible.

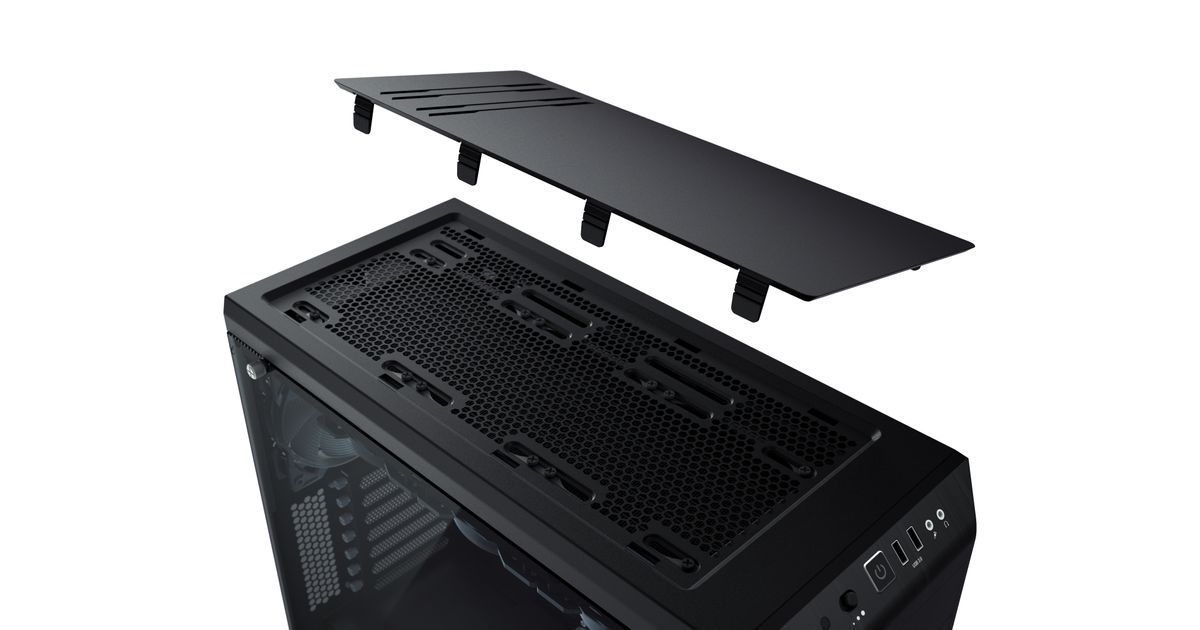

ADJUSTABLE TOP COVER VENT
Ingenious concept for water cooling and silence
The Pure Base 600 top cover is adjustable allowing choice between boosting your system’s cooling or silence. You can close it for more silence, open it partially for more exhaust or leave it open to mount a water cooling radiator.
PRE-INSTALLED PURE WINGS 2 FANS
Whisper-quiet operation – typical for be quiet!
2 pre-installed Pure Wings 2 fans with 9 airflow-optimized fan blades reduce turbulence and increase air pressure: 120mm at the rear, 140mm at the front. Permits up to four additional cooling fans.
KEEP THE SYSTEM SUPER SILENT
Equipped with smart and effective silence features
Integrated 3-step fan controller supports 3 fans. Sound insulating material on top, side and front that dampens vibration. Filters at front and bottom prevent the dust to come into the case.

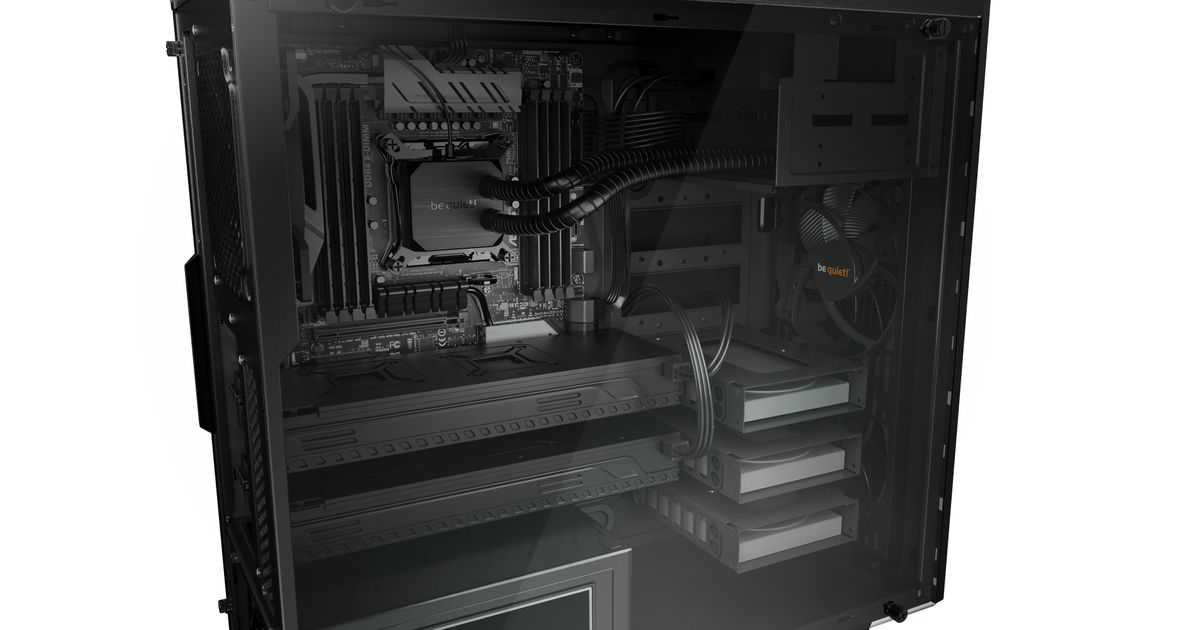

TEMPERED GLASS WINDOW
See your valuable components
The high-quality and fully-windowed side panel offers a perfect view of components inside your chassis. The window is made of 4mm tinted and tempered glass, and is decoupled from the case with rubber elements to inhibit the transfer of vibrations
Pure Base 600 Window offers a great deal of functionality and features for an attractive price.
HIGHLY VERSATILE CONSTRUCTION
Maximum of possibilities for your desired system
Pure Base 600 offers many possibilities for system component selection. The 3 HDD slots can be repositioned to allow installation of the largest of graphics cards and the ODD cage is removable for maximum flexibility of water cooling and drives.
OPTIMIZED FOR RADIATORS
Full choice for water cooling
Pure Base 600 was optimized to be the perfect case for liquid cooling. 3 areas are specially designed to allow them to be added: front, top and rear. All sizes of radiator up to 360mm are possible.
ADJUSTABLE TOP COVER VENT
Ingenious concept for water cooling and silence
The Pure Base 600 top cover is adjustable allowing choice between boosting your system’s cooling or silence. You can close it for more silence, open it partially for more exhaust or leave it open to mount a water cooling radiator.
PRE-INSTALLED PURE WINGS 2 FANS
Whisper-quiet operation – typical for be quiet!
2 pre-installed Pure Wings 2 fans with 9 airflow-optimized fan blades reduce turbulence and increase air pressure: 120mm at the rear, 140mm at the front. Permits up to four additional cooling fans.
KEEP THE SYSTEM SUPER SILENT
Equipped with smart and effective silence features
Integrated 3-step fan controller supports 3 fans. Sound insulating material on top, side and front that dampens vibration. Filters at front and bottom prevent the dust to come into the case.
TEMPERED GLASS WINDOW
See your valuable components
The high-quality and fully-windowed side panel offers a perfect view of components inside your chassis. The window is made of 4mm tinted and tempered glass, and is decoupled from the case with rubber elements to inhibit the transfer of vibrations
