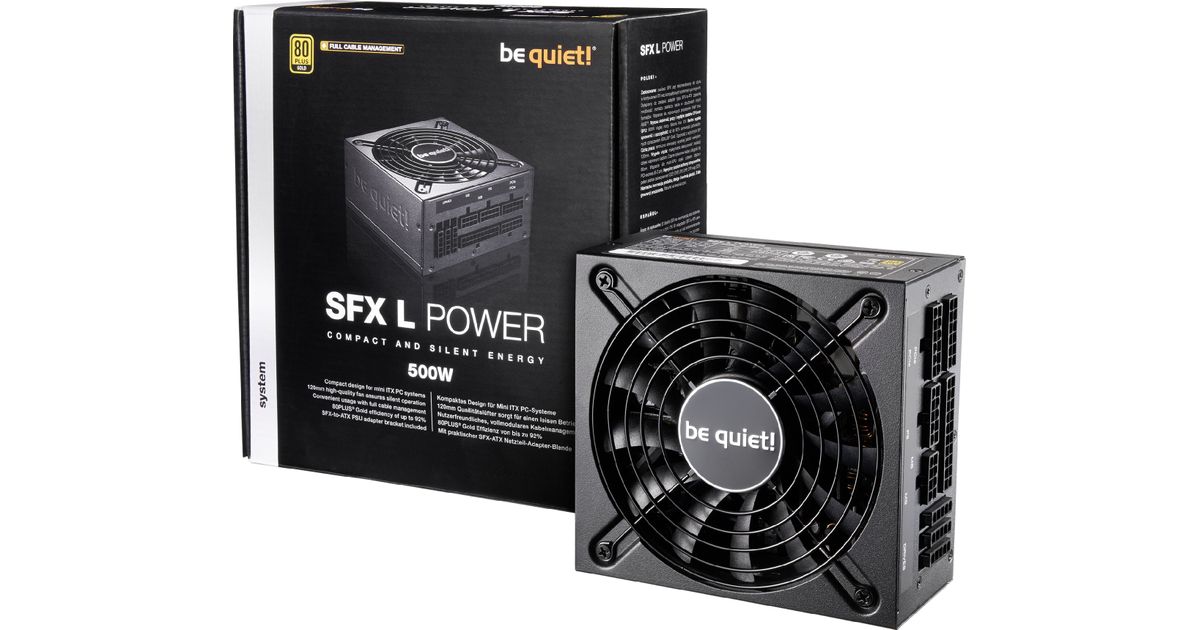

be quiet! SFX L Power power supply unit 500 W 20+4 pin ATX Black
be quiet! SFX L Power, 500 W, 100 - 240 V, 550 W, 50 - 60 Hz, 10 A, Active
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | be quiet! |
| Product code | 186027736 |
| EAN | 04260052187128 |
| Manufacturer part number | BN238 |
| Category | Toiteplokid |
| Power | |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| Peak power | 550 W |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 A |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 500 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 41.7 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16.7 ms |
| Efficiency | 92% |
| Features | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Certification | CE, CB, TÜV, FCC, cTUVus, RCM |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 30 cm |
| Number of SATA power connectors | 6 |
| Number of PATA power connectors | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 40 cm |
| CPU power connector (4+4 pin) | Y |
| CPU power cable length | 40 cm |
| Cabling type | Modular |
| Mouse | |
|---|---|
| Purpose | PC |
| Performance | |
|---|---|
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.4 |
| Silent mode | Y |
| Bearing technology | Sleeve |
| Fan diameter | 12 cm |
| Design | |
|---|---|
| Supported motherboard form factors | Mini-ITX |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| On/off switch | Y |
| Weight & dimensions | |
|---|---|
| Width | 125 mm |
| Depth | 130 mm |
| Height | 64 mm |
| Weight | 1.14 kg |
| Package weight | 2.02 kg |
| Packaging data | |
|---|---|
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 80 mm |
| Package type | Box |
| Screws included | Y |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS, ENERGY STAR |
| Logistics data | |
|---|---|
| Master (outer) case width | 430 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 240 mm |
| Master (outer) case gross weight | 21.4 kg |
| Products per master (outer) case | 10 pc(s) |
| Other features | |
|---|---|
| Cable ties included | Y |
| Noise level (silent mode, <30%) | 9.9 dB |
| Noise level (quiet mode, 50%) | 14 dB |
| Noise level (full-load mode, 100%) | 28.5 dB |
| Packaging content | |
|---|---|
| Manual | Y |
Product Description
Compact and Silent Energy
be quiet! SFX L Power 500W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.
be quiet! SFX L Power 500W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.
