be quiet! SILENT WINGS 4 | 140mm PWM Computer case Fan 14 cm Black 1 pc(s)
be quiet! SILENT WINGS 4 | 140mm PWM, Fan, 14 cm, 1100 RPM, 13.6 dB, 51.3 cfm, 87.16 m³/h
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | be quiet! |
| Product code | 157186870 |
| EAN | 04260052188880 |
| Manufacturer part number | KZBQTI0000BL096 |
| Category | Cooling & other accessories |
| Features | |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Certification | CE / ROHS / RU / UKCA / TÜV / WEEE |
| Cable length | 0.5 m |
| Harmonized System (HS) code | 84733080 |
| Performance | |
|---|---|
| Fan diameter | 14 cm |
| Rotational speed (max) | 1100 RPM |
| Noise level (high speed) | 13.6 dB |
| Maximum airflow | 51.3 cfm |
| Airflow | 87.16 m³/h |
| Maximum air pressure | 0.92 mmH2O |
| Pulse-width modulation (PWM) support | Y |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Mean time between failures (MTBF) | 300000 h |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 156 mm |
| Package depth | 206.5 mm |
| Package height | 31 mm |
| Screws included | Y |
| Design | |
|---|---|
| Product colour | Black |
| Fan connector | 4-pin |
| Power | |
|---|---|
| Power consumption (typical) | 3.6 W |
| Voltage | 5 - 13.2 V |
| Rated voltage | 12 V |
| Rated current | 0.3 A |
| Maximum current | 0.33 A |
| Weight & dimensions | |
|---|---|

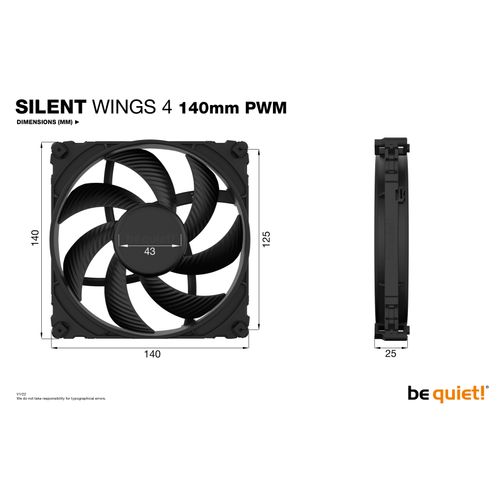

| Width | 140 mm |
| Depth | 140 mm |
| Height | 25 mm |
| Weight | 220 g |
| Package weight | 387 g |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Number of clips | 4 |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 32 pc(s) |
| Shipping (inner) case width | 31.7 cm |
| Shipping (inner) case length | 46.3 cm |
| Shipping (inner) case height | 38.8 cm |
| Shipping (inner) case gross weight | 13.6 kg |
Product Description
No compromise silence and performance

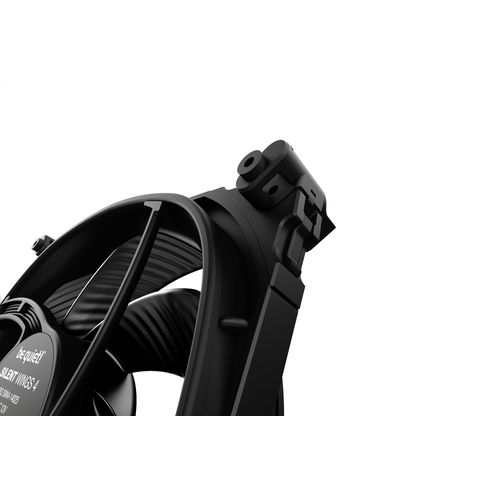

Silent Wings 4 140mm PWM combines all features of a virtually inaudible with an extremely performant fan. A 6-pol-motor and anti-vibration mountings combined with fan blades optimized for maximum airflow make Silent Wings 4 140mm PWM the perfect choice for the most demanding applications in high-end systems.
Silent Wings 4 140mm PWM combines all features of a virtually inaudible with an extremely performant fan. A 6-pol-motor and anti-vibration mountings combined with fan blades optimized for maximum airflow make Silent Wings 4 140mm PWM the perfect choice for the most demanding applications in high-end systems.
