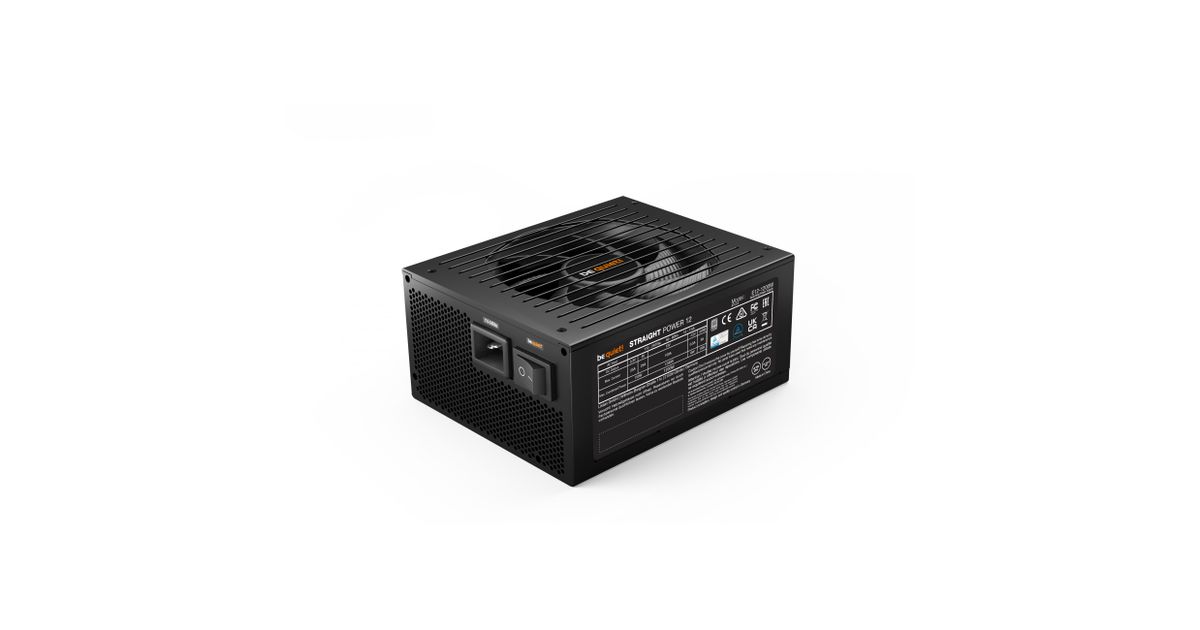

be quiet! Straight Power 12 | 1200W power supply unit 20+4 pin ATX ATX Black
be quiet! Straight Power 12 | 1200W, 1200 W, 110 - 240 V, 1270 W, 50/60 Hz, 15/7.5 A, 150 W
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | be quiet! |
| Product code | 119511846 |
| EAN | 04260052189443 |
| Manufacturer part number | BN339 |
| Category | Toiteplokid |
| Power | |
|---|---|
| Total power | 1200 W |
| AC input voltage | 110 - 240 V |
| Peak power | 1270 W |
| AC input frequency | 50/60 Hz |
| Input current | 15/7.5 A |
| Power factor | 0.99 |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 150 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 100 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 23 ms |
| Efficiency | 92.4% |
| Features | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 9 |
| Number of PATA power connectors | 2 |
| SATA power cable length | 550,700,850,1000 mm |
| Peripheral (Molex) power cable length | 850 mm |
| EPS power connector (4+4 pin) | Y |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 2 |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 70 cm |
| Cabling type | Modular |
| Internal I/O | |
|---|---|
| EPS power connector (8-pin) | Y |
| Mouse | |
|---|---|
| Purpose | PC |
| Performance | |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.0 |
| EPS version | 2.92 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Fan diameter | 13.5 cm |
| Design | |
|---|---|
| Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| On/off switch | Y |
| Other features | |
|---|---|
| Noise level | 32.2 dB |
| Cooling | |
|---|---|
| Fan speed | 0 - 2600 RPM |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
|---|---|
| Cables included | CPU, SATA |
| Cable tie(s) included | Y |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
| Weight | 2.04 kg |
| Package weight | 3.89 kg |
| Packaging data | |
|---|---|
| Package width | 248 mm |
| Package depth | 328 mm |
| Package height | 102 mm |
| Package type | Box |
| Sustainability | |
|---|---|
| Sustainability compliance | Y |
| Sustainability certificates | RoHS, Federal Communications Commission (FCC), Triman, UKCA, ENERGY STAR, WEEE, CE, ErP |
| Logistics data | |
|---|---|
| Warranty period | 10 year(s) |
| Shipping (inner) case length | 44.7 cm |
| Shipping (inner) case width | 28.2 cm |
| Shipping (inner) case height | 34.6 cm |
| Shipping (inner) case net weight | 17 kg |
| Products per shipping (inner) case | 4 pc(s) |
Product Description
WORLD CLASS QUIET AND EFFICIENCY
Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS® Platinum certification, virtually inaudible operation and PCIe 5.0 compatibility. Its reliability makes Straight Power 12 the power supply of choice for all users looking for a long-lasting companion to their build with current and next-gen GPUs.
Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS® Platinum certification, virtually inaudible operation and PCIe 5.0 compatibility. Its reliability makes Straight Power 12 the power supply of choice for all users looking for a long-lasting companion to their build with current and next-gen GPUs.
