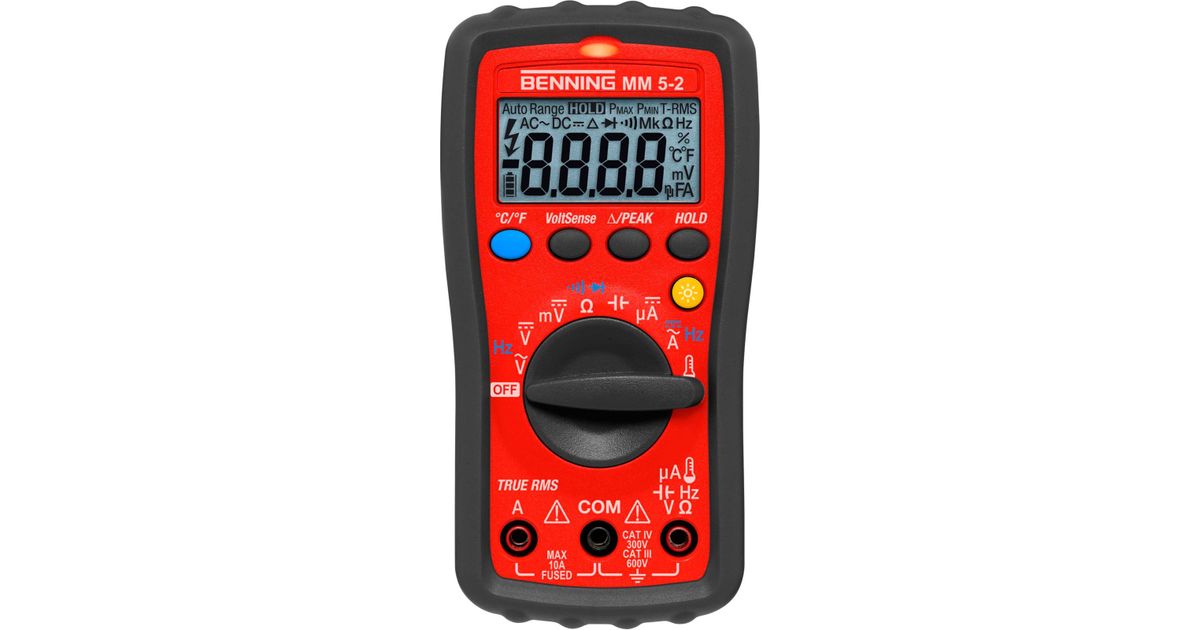

BENNING MM 5-2 Multimeter
Product Information
| Information | |
|---|---|
| Manufacturer | BENNING |
| Product code | 114120019 |
| EAN | 04014651440715 |
| Manufacturer part number | 8255870155 |
| Category | Testrid ja multimeetrid |
Product Description
BENNING MM 5-2 - TRUE RMS Digital Multimeter
Non-linear loads generated e.g. by motor drives with adjustable speed, frequency converters or power supply units for office equipment and LED luminaires generate reactive power in the mains. As a result, multimeters and current clamps with the averaging measurement method (RMS) display the measured values less accurately. In many cases and especially in industrial environments, the use of modern true RMS measuring instruments is necessary. The TRUE RMS measuring method correctly displays the actual, effective value of an alternating current - regardless of whether the signal form of the current is sinusoidal or distorted.
Features:
- Ideal for the heating and plumbing professional
- Voltage up to 600 V AC TRUE RMS / DC
- Direct current 0.1 µA - 10 A DC
- Alternating current up to 10 A AC TRUE RMS
- Measurement of temperature, resistance, frequency, capacity
- Continuity and diode testing
- LCD display with backlight
- Volt sensor / cable break detector
- Measured value memory: HOLD, PEAK, REL
- Rubber protective frame with integrated magnet
- Measurement category: CAT IV 300 V, CAT III 600 V
- Incl. bag, batteries, test leads, temperature sensor
-
Energy Supply
- Operating Mode:
- Batteries
- Type of Battery / Rechargeable Battery:
- AAA (Micro)
- Required Number:
- 2
-
Equipment
- Display:
- LCD
- Automatic Switch-Off:
- Yes
-
Measurement / Measurement Range
- Voltage (V):
- 0,0001 - 600
- Electric Current (mA):
- 0,0001 - 10000
- Resistance (ohm):
- 0,1 - 40000000
- Frequency (Hz):
- 0,01 - 100000
- Measurement Method:
- True RMS
-
Type
- Type:
- Multimeter
-
General
- Colour:
- Red / Black
