Benq MW560 data projector Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) 3D White
Benq MW560, 4000 ANSI lumens, DLP, WXGA (1280x800), 20000:1, 16:9, 1524 - 3810 mm (60 - 150")
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | BenQ |
| Product code | 415696310 |
| EAN | 04718755084225 |
| Manufacturer part number | 9H.JNF77.1JE |
| Category | Projectors |
| Projector | |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x800) |
| Number of colours | 1.073 billion colours |
| Display | |
|---|---|
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| On Screen Display (OSD) | Y |
| Design | |
|---|---|
| Screen size compatibility | 1524 - 3810 mm (60 - 150") |
| Product type | Standard throw projector |
| Market positioning | Portable |
| Product colour | White |
| Cable lock slot type | Kensington |
| Built-in display | N |
| Light source | |
|---|---|
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 10000 h |
| Camera | |
|---|---|
| Zoom capability | Y |
| Lens system | |
|---|---|
| Zoom ratio | 1.1:1 |
| Offset | 100% |
| Features | |
|---|---|
| Throw ratio | 1.55 - 1.7 |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 720p, 1080i, 1080p |
| Noise level (economic mode) | 29 dB |
| Placement | Desktop, Ceiling |
| Harmonized System (HS) code | 85286200 |
| Video | |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Other features | |
|---|---|
| 3D | Y |
| USB 2.0 ports quantity | 1 |
| Noise level | 34 dB |
| Remote control included | Y |

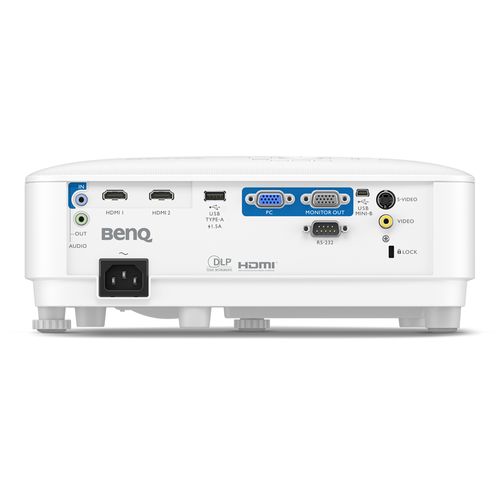

| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| Composite video in | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| S-Video inputs quantity | 1 |
| PC Audio in | Y |
| PC Audio out | Y |
| Mobile High-Definition Link (MHL) | Y |
| Inputs | |
|---|---|
| Audio (L/R) in | 1 |
| Storage | |
|---|---|
| Card reader integrated | N |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Number of built-in speakers | 1 |
| Multimedia | |
|---|---|
| RMS rated power | 10 W |
| Performance | |
|---|---|
| Cable lock slot | Y |
| Power | |
|---|---|
| Power source | AC |
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 280 W |
| Power consumption (economy mode) | 215 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Batteries included | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.3 kg |
| Width | 296 mm |
| Depth | 221 mm |
| Height | 120 mm |
| Packaging content | Warranty Card |
| Packaging content | |
|---|---|
| Cables included | AC, VGA |
| Manual | Y |
| Packaging data | |
|---|---|
| Mounting brackets included | Y |
Product Description
Transformative Technology
HDMI for Fast Transmission
HDMI connectivity provides faster data transmission to digital devices
Dual Connectivity,
Dual Convenience
Dual HDMI offers more flexible connectivity between devices
Time-Saving Convenience
Automatically turns on the projector once the HDMI input signal is detected
4000 Lumens,
20000: 1 Contrast
High brightness & contrast images, even in well-lit meeting rooms
Crystal-Clear Images
All glass lenses for image quality in brilliant clarity
Clear Data Review
Data Review Mode shows every letter and digit clearly
Detailed Infographics
Exclusive Infographic Mode displays detailed text and graphics
Clear User Interface
Intuitive windows design to display the contents clearly
Auto Vertical Keystone for Perfect Alignment
Project the image from any angle with a perfectly squared image with Auto Vertical Keystone.
Lamp Life up to 15,000 hrs
SmartEco Mode saves up to 70% lamp power
Power-Saving, Energy-Saving
Auto Power Off shuts down when no input signal is detected for 20 minutes. (Also accessed via OSD)
Easy Setup
Ergonomic retractable feet for easy setup and adjustment
Get Instant ON
Turn on the projector again within 90 secs after power off without long delays
Enhanced Security
Kensington Lock for physical security to discourage theft
All-in-One Solution
No more fuzzy text and figures
Perfect Combination: Stunning Clarity and Crafted Colors
Finest Precision Glass Lenses for Crystal-Sharp Clarity
BenQ only uses high-quality glass lenses to minimize chromatic aberration, ensuring long-term image quality in brilliant clarity.
Presentation Mode
Designed for presentations with vivid colors. In this mode, boosted brightness matches PC and notebook display.
Infographic Mode
Great for showcasing detailed infographic text and graphics with high brightness and better color gradation.
Data Review Mode
Data Review Mode displays reports with improved contrast and clarity for added efficiency and collaboration.
Low Maintenance & Energy Efficient
Save Power, Save Manpower
Details That Make a Difference
HDMI for Fast Transmission
HDMI connectivity provides faster data transmission to digital devices
Dual Connectivity,
Dual Convenience
Dual HDMI offers more flexible connectivity between devices
Time-Saving Convenience
Automatically turns on the projector once the HDMI input signal is detected
4000 Lumens,
20000: 1 Contrast
High brightness & contrast images, even in well-lit meeting rooms
Crystal-Clear Images
All glass lenses for image quality in brilliant clarity
Clear Data Review
Data Review Mode shows every letter and digit clearly
Detailed Infographics
Exclusive Infographic Mode displays detailed text and graphics
Clear User Interface
Intuitive windows design to display the contents clearly
Auto Vertical Keystone for Perfect Alignment
Project the image from any angle with a perfectly squared image with Auto Vertical Keystone.
Lamp Life up to 15,000 hrs
SmartEco Mode saves up to 70% lamp power
Power-Saving, Energy-Saving
Auto Power Off shuts down when no input signal is detected for 20 minutes. (Also accessed via OSD)
Easy Setup
Ergonomic retractable feet for easy setup and adjustment
Get Instant ON
Turn on the projector again within 90 secs after power off without long delays
Enhanced Security
Kensington Lock for physical security to discourage theft
All-in-One Solution
No more fuzzy text and figures
Perfect Combination: Stunning Clarity and Crafted Colors
Finest Precision Glass Lenses for Crystal-Sharp Clarity
BenQ only uses high-quality glass lenses to minimize chromatic aberration, ensuring long-term image quality in brilliant clarity.
Presentation Mode
Designed for presentations with vivid colors. In this mode, boosted brightness matches PC and notebook display.
Infographic Mode
Great for showcasing detailed infographic text and graphics with high brightness and better color gradation.
Data Review Mode
Data Review Mode displays reports with improved contrast and clarity for added efficiency and collaboration.
Low Maintenance & Energy Efficient
Save Power, Save Manpower
Details That Make a Difference
