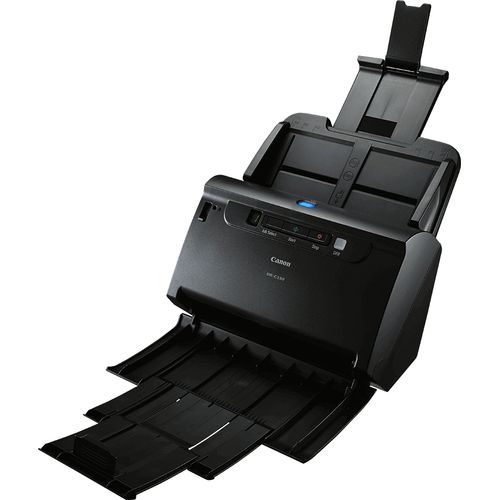

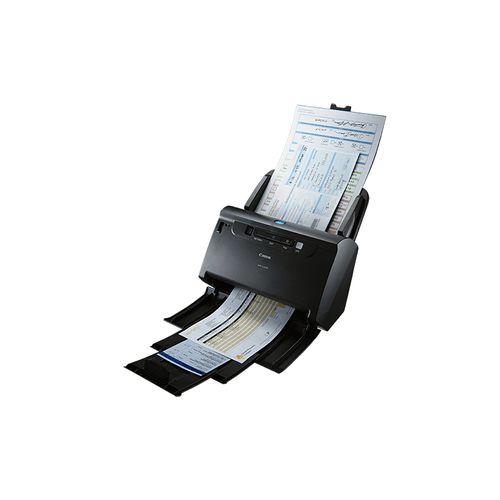

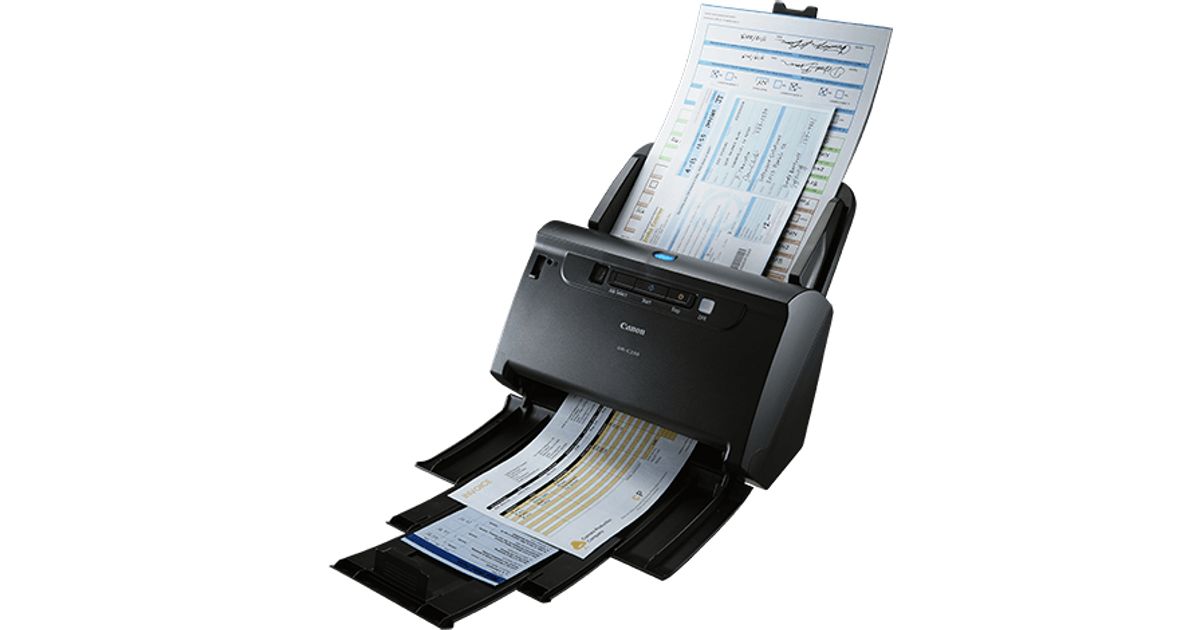

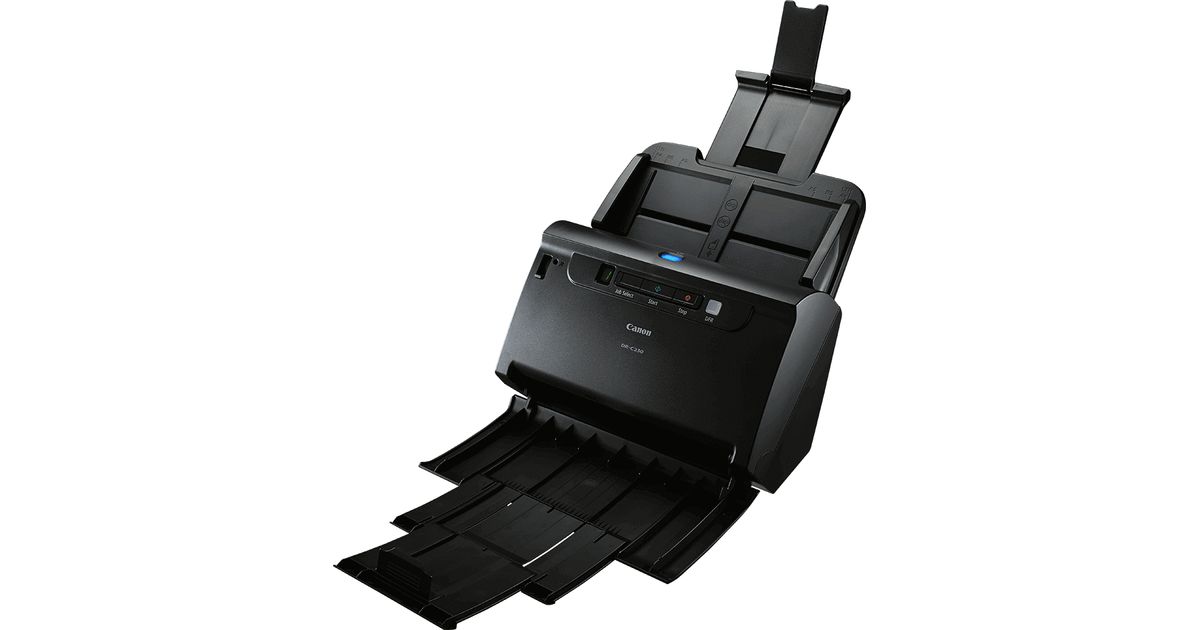

Canon imageFORMULA DR-C230 Sheet-fed scanner 600 x 600 DPI A4 Black
Canon imageFORMULA DR-C230, 216 x 3000 mm, 600 x 600 DPI, 24 bit, 8 bit, 30 ppm, 30 ppm
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Canon |
| Product code | 07179163 |
| EAN | 04528472107882 |
| Manufacturer part number | 2646C003AA |
| Category | Document scanners |
| Scanning | |
|---|---|
| Maximum scan size | 216 x 3000 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Duplex scanning | Y |
| Colour scanning | Y |
| Output greyscale depth | 8 bit |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 30 ppm |
| ADF scan speed (colour, A4) | 30 ppm |
| Duplex ADF scan speed (b/w, A4) | 60 ipm |
| Duplex ADF scan speed (colour, A4) | 60 ipm |
| Scanner type | Sheet-fed scanner |
| Performance | |
|---|---|
| Output colour depth | 24 bit |
| Daily duty cycle (max) | 3500 pages |
| Light source | RGB LED |
| Scan drivers | ISIS, TWAIN |
| Design | |
|---|---|
| Built-in display | N |
| Product colour | Black |
| Image sensor | |
|---|---|
| Sensor type | CMOS CIS |
| Input capacity | |
|---|---|
| Standard input capacity | 60 sheets |
| Paper handling | |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plastic Card |
| Multi feed detection | Y |
| Media thickness (min) | 0.06 mm |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 3 m |
| Ports & interfaces | |
|---|---|
| USB port | Y |
| Features | |
|---|---|
| USB version | 2.0 |
| Power supply type | AC |
| Input voltage | 100-240 V |
| Harmonized System (HS) code | 84716070 |
| Other features | |
|---|---|
| Standard interfaces | USB 2.0 |
| Scan media weight | 27 - 209 g/m² |
| Power | |
|---|---|
| Power consumption (typical) | 19 W |
| Power consumption (standby) | 1.4 W |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50 - 60 Hz |
| Software | |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 - 32.5 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
|---|---|
| Width | 291 mm |
| Depth | 253 mm |
| Height | 231 mm |
| Weight | 2.8 kg |
| Packaging content | |
|---|---|
| Cables included | AC, USB |
| AC adapter included | Y |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS, ENERGY STAR |
Product Description
A compact document scanner with the speed, power and flexibility to thrive in the most-demanding and fast-paced environments.
Compact, modern design and powerful efficiency-driving features
Small stature, big performance – the imageFORMULA DR-C230 offers consummate reliability and supreme productivity, at an affordable price point. This robust desktop scanner captures multiple document formats and sizes with ease.
Premium performance
With scan speeds of up to 30ppm and 60ipm, the imageFORMULA DR-C230 offers exceptional productivity at a pleasantly modest price point.
Class-leading reliability
The DR-C230 has been engineered to ensure maximum dependability. Its 60-sheet ADF seamlessly feeds various media sizes, delivering up to 3,500 scans per day.
Simple, swift scanning
This convenient desktop model allows users to scan with a single button press, and offers useful features such as automatic page size and text direction detection.
Broad software selection
Featuring an impressive range of applications, the DR-C230 has the tool for every job, with CapturePerfect and CaptureOnTouch V4 Pro included.
Cost-effective operation
Consuming just 19W in operation and 1.4W in standby, the DR-C230 is both environmentally and fiscally efficient, without compromising on performance.
Compact, modern design and powerful efficiency-driving features
Small stature, big performance – the imageFORMULA DR-C230 offers consummate reliability and supreme productivity, at an affordable price point. This robust desktop scanner captures multiple document formats and sizes with ease.
Premium performance
With scan speeds of up to 30ppm and 60ipm, the imageFORMULA DR-C230 offers exceptional productivity at a pleasantly modest price point.
Class-leading reliability
The DR-C230 has been engineered to ensure maximum dependability. Its 60-sheet ADF seamlessly feeds various media sizes, delivering up to 3,500 scans per day.
Simple, swift scanning
This convenient desktop model allows users to scan with a single button press, and offers useful features such as automatic page size and text direction detection.
Broad software selection
Featuring an impressive range of applications, the DR-C230 has the tool for every job, with CapturePerfect and CaptureOnTouch V4 Pro included.
Cost-effective operation
Consuming just 19W in operation and 1.4W in standby, the DR-C230 is both environmentally and fiscally efficient, without compromising on performance.
