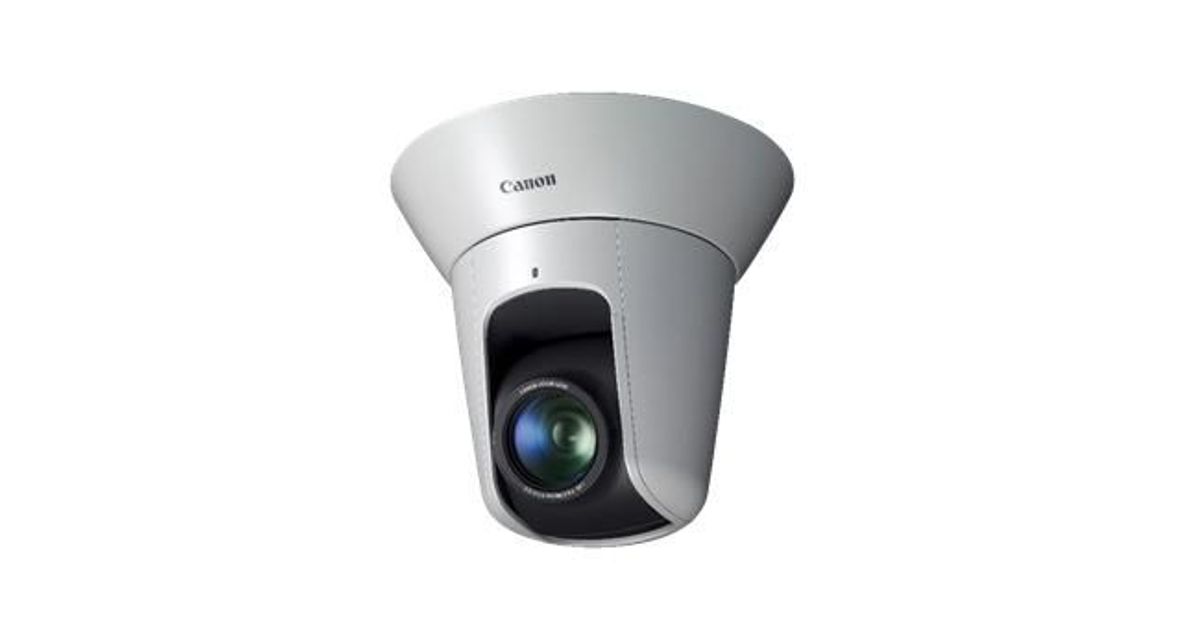

Canon VB-H45 Dome IP security camera 1920 x 1080 pixels Ceiling
Canon VB-H45, IP security camera, Wired, Digital PTZ, Aperture priority AE, Auto, Manual, Shutter priority AE, EN55032 Class B, FCC part15 subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS EN55032..., Ceiling
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Canon |
| Product code | 228610461 |
| EAN | 00013803299946 |
| Manufacturer part number | 2541C001 |
| Category | Kaamerad |
| Features | |
|---|---|
| Type | IP security camera |
| Certification | EN55032 Class B, FCC part15 subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS EN55032 Class B, CNS13438 Class B, KN22 Class B, EN55024, KN24, EN50581, IEC/UL/EN60950-1 |
| Supported graphics resolutions | 320 x 180, 320 x 240, 480 x 270, 640 x 360, 640 x 480 (VGA), 960 x 540, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Performance | |
|---|---|
| PTZ control | Y |
| PTZ modes | Digital PTZ |
| Day/night mode | Y |
| Light exposure modes | Aperture priority AE, Auto, Manual, Shutter priority AE |
| Infrared (IR) cut-off filter | Y |
| Full HD | Y |
| Number of users | 30 user(s) |
| Power source type | AC, DC, PoE |
| Mounting | |
|---|---|
| Mounting type | Ceiling |
| Design | |
|---|---|
| Product colour | Silver |
| Form factor | Dome |
| Reset button | Y |
| Camera | |
|---|---|
| Minimum illumination | 0.003 lx |
| Lens viewing angle, horizontal | 60.4° |
| Pan speed | 150 °/sec |
| White balance | Auto, Daylight, Fluorescent, Halogen, Manual, Mercury lamp, Sodium lamp |
| Camera shutter speed | 1 - 1/6000 s |
| Zoom capability | Y |
| Optical zoom | 20x |
| Digital zoom | 40x |
| Auto focus | Y |
| Image stabilizer | Y |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Y |
| Lens system | |
|---|---|
| Maximum aperture number | 3.5 |
| Minimum aperture number | 1.6 |
| Focal length range | 4.7 - 94 mm |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Video | |
|---|---|
| Total megapixels | 2.1 MP |
| Frame rate | 30 fps |
| Video streaming | Y |
| Privacy masking | Y |
| Media formats | |
|---|---|
| Video compression formats | H.264 |
| Audio formats supported | G.711 |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Audio | |
|---|---|
| Audio system full duplex | Y |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Cabling technology | 10/100Base-T(X) |
| Security algorithms | EAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS, IPSec, SNMP, SNMPv3, SSL/TLS |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Storage | |
|---|---|
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | SD, SDHC, SDXC |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Y |
| DC-in jack | Y |
| Audio input | 3.5mm |
| Security | |
|---|---|
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Intrusion |
| Management features | |
|---|---|
| Web browser | Y |
| Behavior analysis | Object removal detection |
| Power | |
|---|---|
| AC input voltage | 24 V |
| Power consumption (typical) | 8.6 W |
| Power consumption (max) | 9.9 W |
| Power consumption (Power over Ethernet (PoE)) | 9.2 W |
| DC output voltage | 12 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Weight & dimensions | |
|---|---|
| Height | 155 mm |
| Diameter | 13.2 cm |
| Weight | 1.14 kg |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
Product Description
VB-H45
- Full HD PTZ IP security camera
- Powerful 20x optical zoom lens with 40x digital zoom and fast autofocus
- Superior image quality using Canon DIGIC DV III processor
- Canon DIGIC NET II supports dual H.264 video streams (up to 30 fps)
- Superior low-light performance: colour at 0.05 lux and mono at 0.003 lux
- Auto Smart Shade Control (Auto-SSC) improves foreground objects in bright backlit scenes
- Motion Adaptive Noise Reduction and Area-Specific Data Size Reduction (ADSR) help reduce data size while optimising image quality
- Built-in analytics functions for intelligent and efficient alarm detection
- Live monitoring and configuration on supported web browsers and mobile devices
- ONVIF Profile S compliant
- Two colour options: Silver (VB-H45) and Black (VB-H45B)
