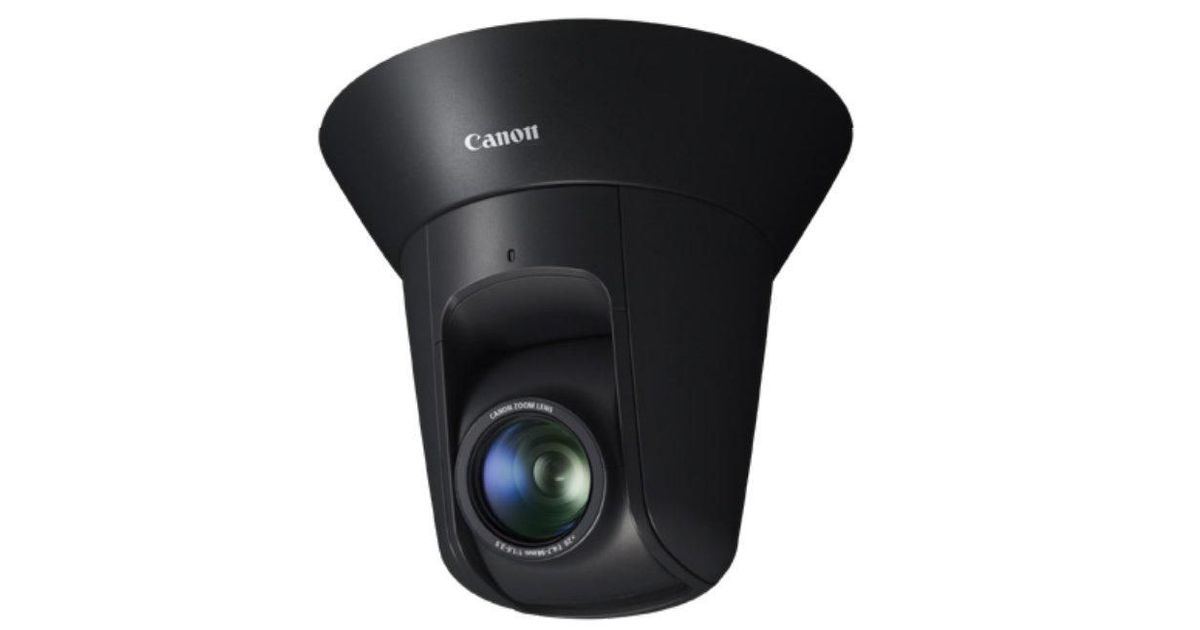

Canon VB-M44B Dome IP security camera 1280 x 960 pixels Ceiling
Canon VB-M44B, IP security camera, Wired, Digital PTZ, Canon DIGIC DV III, Aperture priority AE, Auto, Manual, Shutter priority AE, Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Russian,...
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Canon |
| Product code | 228610460 |
| EAN | 04549292106725 |
| Manufacturer part number | 2542C002 |
| Category | Kaamerad |
| Features | |
|---|---|
| Type | IP security camera |
| Certification | EN55032 Class B, FCC part15 subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS EN55032 Class B, CNS13438 Class B, KN22 Class B, EN55024, KN24, EN50581, IEC/UL/EN60950-1 |
| Supported graphics resolutions | 320 x 180, 320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960 |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Performance | |
|---|---|
| PTZ control | Y |
| PTZ modes | Digital PTZ |
| Day/night mode | Y |
| Light exposure modes | Aperture priority AE, Auto, Manual, Shutter priority AE |
| Infrared (IR) cut-off filter | Y |
| Number of languages | 12 |
| Languages support | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Russian, Thai, Turkish |
| Number of users | 50 user(s) |
| Flash memory | 5 MB |
| Power source type | AC, DC, PoE |
| Processor | |
|---|---|
| Processor model | Canon DIGIC DV III |
| Mounting | |
|---|---|
| Mounting type | Ceiling |
| Design | |
|---|---|
| Product colour | Black |
| Form factor | Dome |
| Reset button | Y |
| Camera | |
|---|---|
| Minimum illumination | 0.003 lx |
| Lens viewing angle, horizontal | 60.4° |
| Tilt speed | 150 °/sec |
| Pan range | -170 - 170° |
| Pan speed | 150 °/sec |
| White balance | Auto, Daylight, Fluorescent, Halogen, Manual, Mercury lamp, Sodium lamp |
| Camera shutter speed | 1 - 1/6000 s |
| Zoom capability | Y |
| Optical zoom | 20x |
| Digital zoom | 20x |
| Auto focus | Y |
| Image stabilizer | Y |
| Lens system | |
|---|---|
| Lens viewing angle, vertical | 35.1° |
| Maximum aperture number | 3.5 |
| Minimum aperture number | 1.6 |
| Focal length range | 4.7 - 94 mm |
| Ergonomics | |
|---|---|
| Tilt angle range | -90 - 10° |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Y |
| Graphics | |
|---|---|
| Maximum resolution | 1280 x 960 pixels |
| Video | |
|---|---|
| Total megapixels | 1.3 MP |
| Frame rate | 30 fps |
| Video streaming | Y |
| Privacy masking | Y |
| Media formats | |
|---|---|
| Video compression formats | H.264 |
| Audio formats supported | G.711 |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Audio | |
|---|---|
| Audio system full duplex | Y |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Cabling technology | 10/100Base-T(X) |
| Security algorithms | EAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS, IPSec, SNMP, SNMPv3, SSL/TLS |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Password protection type | Supervisor, User |
| Storage | |
|---|---|
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | SD, SDHC, SDXC |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Y |
| DC-in jack | Y |
| Audio input | 3.5mm |
| Security | |
|---|---|
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Intrusion |
| Management features | |
|---|---|
| Web browser | Y |
| Behavior analysis | Object removal detection |
| Power | |
|---|---|
| AC input voltage | 24 V |
| Power consumption (typical) | 8.6 W |
| Power consumption (max) | 9.9 W |
| Power consumption (Power over Ethernet (PoE)) | 9.2 W |
| DC output voltage | 12 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Weight & dimensions | |
|---|---|
| Height | 155 mm |
| Diameter | 13.2 cm |
| Weight | 1.14 kg |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
Product Description
Keep every angle covered
The VB-M44 1.3 MP PTZ IP security camera combines a powerful 400x zoom, excellent low-light capability and fast auto-focus. Flexible installation options for indoor use.
- 1.3 MP PTZ IP security camera
- Powerful 20x optical zoom lens with 20x digital zoom and fast autofocus
- Superior image quality using Canon DIGIC DV III processor
- Canon DIGIC NET II supports dual H.264 video streams (up to 30 fps)
- Superior low-light performance: colour at 0.05 lux and mono at 0.003 lux
- Auto Smart Shade Control (Auto-SSC) improves foreground objects in bright backlit scenes
- Motion Adaptive Noise Reduction and Area-Specific Data Size Reduction (ADSR) help reduce data size while optimising image quality
- Built-in analytics functions for intelligent and efficient alarm detection
- Live monitoring and configuration on supported web browsers and mobile devices
- ONVIF Profile compliant
- Two colour options: Silver (VB-M44) and Black (VB-M44B)
The VB-M44 1.3 MP PTZ IP security camera combines a powerful 400x zoom, excellent low-light capability and fast auto-focus. Flexible installation options for indoor use.
- 1.3 MP PTZ IP security camera
- Powerful 20x optical zoom lens with 20x digital zoom and fast autofocus
- Superior image quality using Canon DIGIC DV III processor
- Canon DIGIC NET II supports dual H.264 video streams (up to 30 fps)
- Superior low-light performance: colour at 0.05 lux and mono at 0.003 lux
- Auto Smart Shade Control (Auto-SSC) improves foreground objects in bright backlit scenes
- Motion Adaptive Noise Reduction and Area-Specific Data Size Reduction (ADSR) help reduce data size while optimising image quality
- Built-in analytics functions for intelligent and efficient alarm detection
- Live monitoring and configuration on supported web browsers and mobile devices
- ONVIF Profile compliant
- Two colour options: Silver (VB-M44) and Black (VB-M44B)
