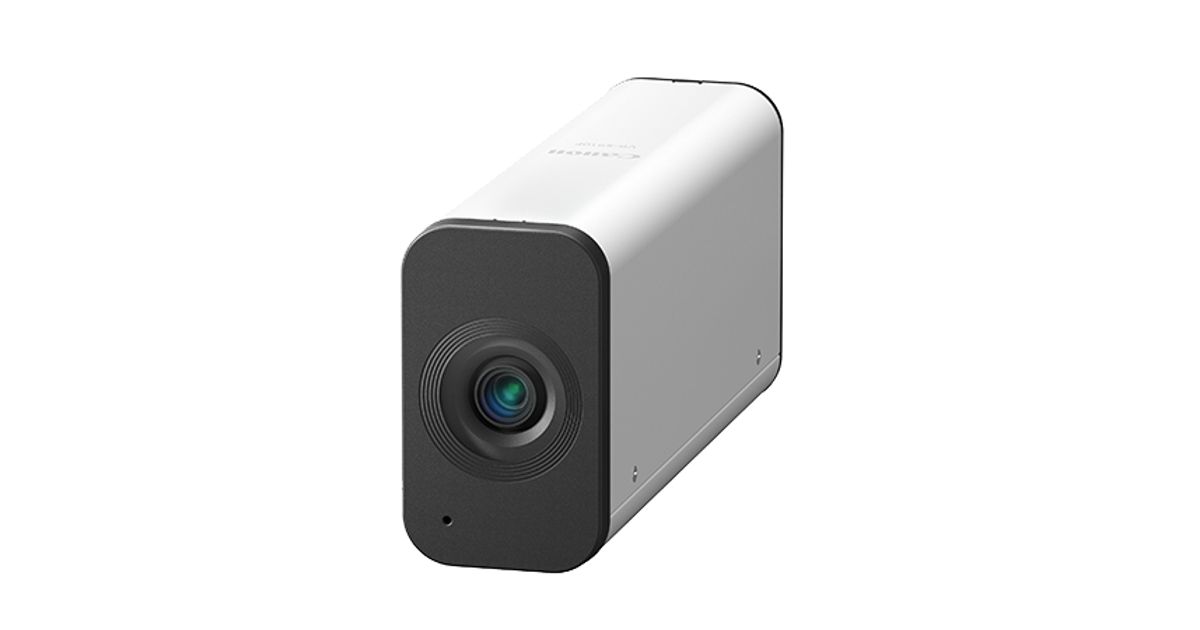

Canon VB-S910F Bullet IP security camera 1920 x 1080 pixels Ceiling/wall
Canon VB-S910F, IP security camera, Wired, Aperture priority AE, Auto, Manual, Shutter priority AE, EN55032 Class B, FCC 15 B B, ICES-003 B, VCCI B, C-tick AS/NZS EN55032 Class B, CNS13438 B, KN32..., Ceiling/wall, White
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Canon |
| Product code | 12313072 |
| EAN | 04549292078381 |
| Manufacturer part number | 1389C001 |
| Category | Alarm systems and CCTV-s |
| Features | |
|---|---|
| Type | IP security camera |
| Certification | EN55032 Class B, FCC 15 B B, ICES-003 B, VCCI B, C-tick AS/NZS EN55032 Class B, CNS13438 B, KN32 B, EN55024, KN35, EN50581, IEC/UL/EN60950-1 |
| Supported graphics resolutions | 320 x 180, 320 x 240, 480 x 270, 640 x 360, 640 x 480 (VGA), 960 x 540, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Performance | |
|---|---|
| PTZ control | Y |
| Preset points | Y |
| Day/night mode | Y |
| Light exposure modes | Aperture priority AE, Auto, Manual, Shutter priority AE |
| Infrared (IR) cut-off filter | Y |
| Full HD | Y |
| Number of users | 31 user(s) |
| Power source type | PoE |
| Mounting | |
|---|---|
| Mounting type | Ceiling/wall |
| Design | |
|---|---|
| Product colour | White |
| Form factor | Bullet |
| Camera | |
|---|---|
| Minimum illumination | 0.5 lx |
| Lens viewing angle, horizontal | 78.6° |
| White balance | Auto, Fluorescent, Halogen, Manual, Mercury lamp, Sodium lamp |
| Camera shutter speed | 1 - 1/16000 s |
| Zoom capability | Y |
| Optical zoom | 3.5x |
| Digital zoom | 4x |
| Auto focus | Y |
| Lens system | |
|---|---|
| Lens viewing angle, vertical | 40.9° |
| Maximum aperture number | 2.6 |
| Focal length range | 2.25 - 7.88 mm |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 4.85 mm (1 / 4.85") |
| Progressive scan | Y |
| Night vision | |
|---|---|
| Night vision | Y |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Video | |
|---|---|
| Total megapixels | 2.1 MP |
| Frame rate | 30 fps |
| Automatic gain control | Y |
| Privacy masking | Y |
| Media formats | |
|---|---|
| Video compression formats | H.264 |
| Audio | |
|---|---|
| Audio system full duplex | Y |
| Frequency range | 50 - 16000 Hz |
| Signal-to-Noise Ratio (SNR) | 62 dB |
| Built-in microphone | Y |
| Voice codecs | G.711Mu |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| Ethernet interface type | Fast Ethernet |
| Cabling technology | 10/100Base-T(X) |
| Security algorithms | EAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS, IPSEC, SSL/TLS |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3af |
| Password protection type | Supervisor, User |
| User guide | Y |
| Protocols | |
|---|---|
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP |
| Storage | |
|---|---|
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces | |
|---|---|
| Headphone outputs | 1 |
| Interface | RJ-45 |
| Security | |
|---|---|
| Video motion detection | Y |
| Alert notification type | |
| Management features | |
|---|---|
| Web-based management | Y |
| Power | |
|---|---|
| Power consumption (Power over Ethernet (PoE)) | 4.8 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 32 mm |
| Depth | 117 mm |
| Height | 54 mm |
| Weight | 180 g |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Resource CD | Y |
Product Description
Weighing under a half-pound, Canon's compact VB-S910F Fixed Micro Box Network Camera allows for discreet video surveillance in an esthetically pleasing form factor. The VB-S910F is equipped with a Genuine Canon 3.5x Optical Zoom Lens, 2.1 Megapixel resolution CMOS Sensor and DIGIC DV III Image Processor, all of which work together to deliver images with remarkable clarity and color accuracy. A built-in microphone allows audio recording at the camera's installation site. Users will appreciate the reduced bandwidth and storage space consumption possible with the Area-Specific Data Size Reduction and Motion Adaptive Noise Reduction features, as well as the low power consumption (4.8W maximum over PoE) offered by the VB-S910F.
Features
- Genuine Canon Lens with 3.5x Optical Zoom helps provide Outstanding Image Clarity and Flexibility
- 2.1 Megapixel Resolution High-Sensitivity CMOS Sensor helps deliver video with Outstanding Detail
- Advanced DIGIC DV III Image Processor to help Maximize Image Quality and Color Accuracy
- Lightweight and Compact Form Factor (0.4 oz.) allows Camera to be Discreet and Aesthetically Pleasing
- Built-in Microphone for Audio Recording at Installation Site*
- Motion Adaptive Noise Reduction to Increase Video Clarity in Low-Light Conditions and Reduce Bandwidth Consumption
- Area-Specific Data Size Reduction (ADSR) to Maintain Video Quality in Important Areas while Reducing Bandwidth Usage
- Privacy Mask for Placing a Digital Mask over Restricted Areas
- ONVIF Profile S Conformant for VMS Connectivity
- Web-Based Camera Viewer with Mobile Device Support
- Low Power Consumption (Maximum 4.8W)
- PoE Power Source Compatible
Features
- Genuine Canon Lens with 3.5x Optical Zoom helps provide Outstanding Image Clarity and Flexibility
- 2.1 Megapixel Resolution High-Sensitivity CMOS Sensor helps deliver video with Outstanding Detail
- Advanced DIGIC DV III Image Processor to help Maximize Image Quality and Color Accuracy
- Lightweight and Compact Form Factor (0.4 oz.) allows Camera to be Discreet and Aesthetically Pleasing
- Built-in Microphone for Audio Recording at Installation Site*
- Motion Adaptive Noise Reduction to Increase Video Clarity in Low-Light Conditions and Reduce Bandwidth Consumption
- Area-Specific Data Size Reduction (ADSR) to Maintain Video Quality in Important Areas while Reducing Bandwidth Usage
- Privacy Mask for Placing a Digital Mask over Restricted Areas
- ONVIF Profile S Conformant for VMS Connectivity
- Web-Based Camera Viewer with Mobile Device Support
- Low Power Consumption (Maximum 4.8W)
- PoE Power Source Compatible
