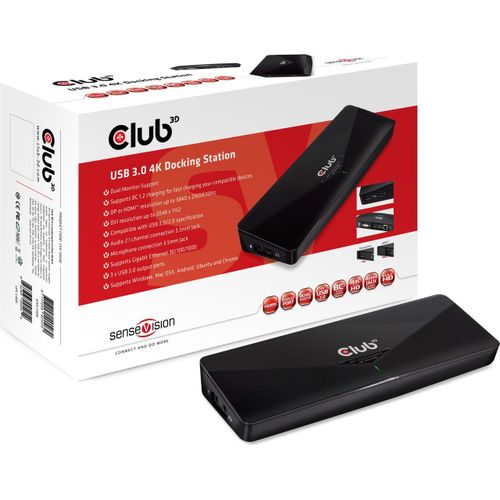

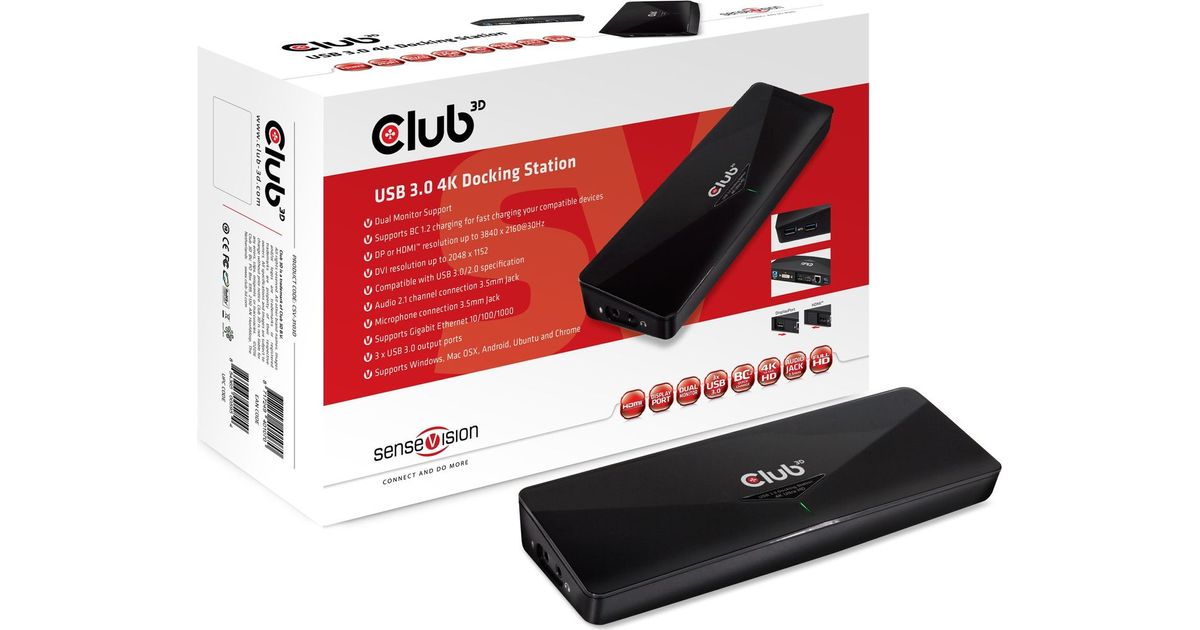

CLUB3D CSV-3103D The Club 3D Universal USB 3.1 Gen 1 UHD 4K Docking station
CLUB3D CSV-3103D The Club 3D Universal USB 3.1 Gen 1 UHD 4K Docking station, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, 1.4a, USB, 10,100,1000 Mbit/s, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | CLUB3D |
| Product code | 16532465 |
| EAN | 00854365005954 |
| Manufacturer part number | CSV-3103D |
| Category | Dockingstations |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| Microphone in | Y |
| Headphone outputs | 1 |
| HDMI version | 1.4a |
| DisplayPorts quantity | 1 |
| DVI-I ports quantity | 1 |
| Headphone connectivity | USB |
| Line-out | Y |
| DC-in jack | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of microphone inputs | 1 |
| Outputs | |
|---|---|
| Audio (L/R) out | 1 |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | Power |
| Reset button | N |
| Storage | |
|---|---|
| Card reader integrated | N |
| Performance | |
|---|---|
| Optical drive included | N |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum analog resolution | 2048 x 1152 pixels |
| Charging function | Y |
| Compatibility | Dual Monitor support allows you to chose from either the DP or HDMI™ output plus a DVI output. It supports display resolution up to 4K at 30Hz for single Monitor setup or full HD at 60Hz for Dual Monitor setups. |
| Power source type | AC |
| Audio | |
|---|---|
| Built-in speaker(s) | N |
| Features | |
|---|---|
| Plug and Play | Y |
| Certification | CE, RoHS, FCC |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 189 mm |
| Depth | 74.5 mm |
| Height | 26.3 mm |
| Weight | 200 g |
| Packaging content | |
|---|---|
| Cables included | USB |
| AC adapter included | Y |
| Other features | |
|---|---|
| Quick start guide | Y |
| User guide | Y |
Product Description
SenseVision USB 3.0 4K Docking Station
The Club 3D Universal USB 3.0 4K Docking station is designed for all your connectivity needs. With the built-in USB 3.0 ports, the docking station enables you to enjoy the super speed data transmission (up to 5Gbps) of your USB peripherals, reducing cable clutter and bringing data and display connectivity to your notebook or tablet via a single USB 3.0 uplink port.
Dual Monitor support allows you to chose from either the DP or HDMI™ output plus a DVI output. It supports display resolution up to 4K at 30Hz for single Monitor setup or full HD at 60Hz for Dual Monitor setups. It offers separate connections for your Speakers or Headset and Microphone. You can even charge your Mobil Phone thru the BC1.2 Fast Charge Port in a manner of minutes.
Functionality is also dependent on the functionality of the connected devices.
BC 1.2 charging
Quick charge your USB enabled devices. It charges three times faster than a standard computer USB 2.0 port.
