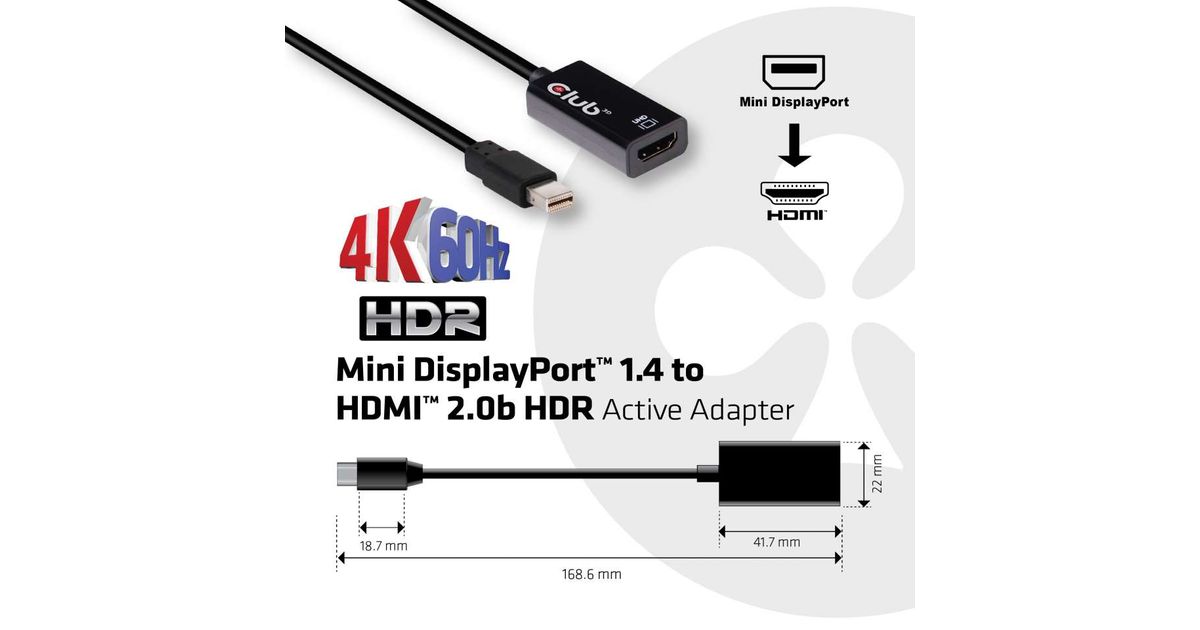

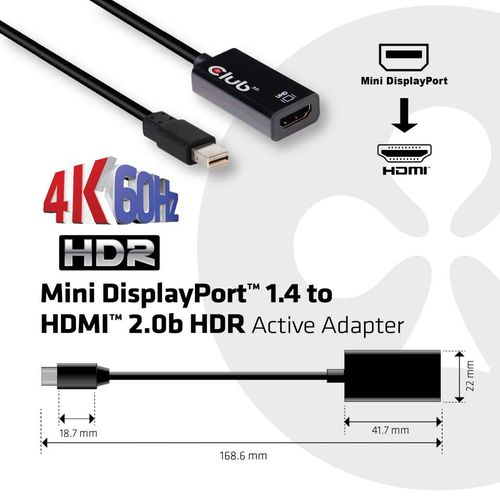

CLUB3D Mini DisplayPort 1.4 to HDMI 2.0b HDR Active Adapter
CLUB3D Mini DisplayPort 1.4 to HDMI 2.0b HDR Active Adapter, Min iDisplayPort 1.4, HDMI 2.0b, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | CLUB3D |
| Product code | 15401400 |
| EAN | 00841615101054 |
| Manufacturer part number | CAC-1180 |
| Category | Audio and video cables |
| Features | |
|---|---|
| Connector 1 | Min iDisplayPort 1.4 |
| Connector 2 | HDMI 2.0b |
| Connector contacts plating | Copper |
| DisplayPort version | 1.4 |
| Data transfer rate | 18 Gbit/s |
| Converter type | Active video converter |
| Plug and Play | Y |
| Certification | ROHS, FCC, CE EMI, WEEE |
| Cable colour | Black |
| Design | |
|---|---|
| Product colour | Black |
| Other features | |
|---|---|
| USB required | N |
| Compatible operating systems | Windows 10, 8.1 Mac OS Sierra, High Sierra |
| Graphics | |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Performance | |
|---|---|
| Maximum resolution (HDMI) | 4096 x 2160 pixels |
| Display | |
|---|---|
| Maximum refresh rate | 60 Hz |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per master (outer) case | 10 pc(s) |
| Power | |
|---|---|
| USB powered | N |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 20 mm |
| Depth | 11, 184 |
| Weight | 30 g |
| Package weight | 10 g |
| Packaging data | |
|---|---|
| Package width | 60 mm |
| Package depth | 35 mm |
| Package height | 182 mm |
| Quantity per pack | 1 pc(s) |
Product Description
CAC-1180 - The Club3D Mini DisplayPort™ 1.4 to HDMI™ 2.0b signal converter. It features support for HDR Video quality for deep color media content playback. The Mini DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0b.
Resolution Support
The CAC-1180 supports UHD resolutions up to 4096 x 2160p at 60Hz.
Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the Mini DisplayPort™ and HDMI™ link bandwidth. The CAC-1180 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and/or HDMI™ 2.0 a or b
Resolution Support
The CAC-1180 supports UHD resolutions up to 4096 x 2160p at 60Hz.
Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the Mini DisplayPort™ and HDMI™ link bandwidth. The CAC-1180 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and/or HDMI™ 2.0 a or b
