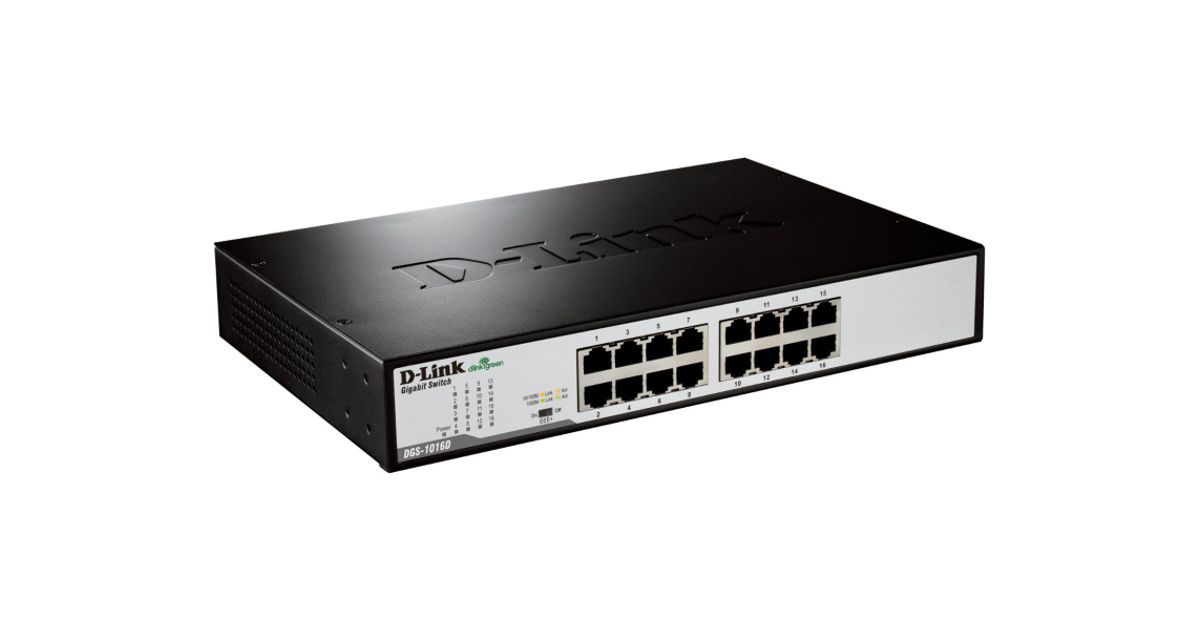

D-Link DGS-1016D network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Black, Silver
D-Link DGS-1016D, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | D-Link |
| Product code | 509223031 |
| EAN | 00790069270017 |
| Manufacturer part number | DGS-1016D |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Broadcast storm control | Y |
| Auto MDI/MDI-X | Y |
| Active link detection | Y |
| MAC address auto-learning supported | Y |
| MAC address auto-aging supported | Y |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Certification | cUL/UL CE LVD CCC CB BSMI |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.81 Mpps |
| Store-and-forward | Y |
| Number of queues | 8 |
| Jumbo frames support | Y |
| Jumbo frames | 10000 |
| Packet forwarding rate (1 Gbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 1488000 pps |
| Packet buffer memory | 0.5 MB |
| Design | |
|---|---|
| Rack mounting | Y |
| Stackable | Y |
| Form factor | 1U |
| Product colour | Black, Silver |
| Housing material | Metal |
| LED indicators | Activity, Link, Power, Speed |
| Electromagnetic compatibility | ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 1882372 h |
| Heat dissipation | 34.3 BTU/h |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.2 A |
| Power consumption (max) | 10.07 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 280 mm |
| Depth | 125 mm |
| Height | 44 mm |
| Weight | 1.02 kg |
Product Description
The D-Link DGS-1016D 16-Port Unmanaged Gigabit Switch series offer an economical way for SOHO and Small-to-Medium Businesses (SMB) to take advantage of Gigabit Ethernet speeds while reducing energy consumption and minimising noise output.
Gigabit Connectivity
The DGS-1016D switches bring the speed of Gigabit Ethernet to all ports for a truly high-speed network. If your network has a mix of legacy and modern connection interfaces, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.
Improved Network Efficiency
The DGS-1016D switches incorporate several advanced features to help simplify and improve network management and efficiency. Flow Control throttles connections to ensure reliability during heavy usage periods by reducing packet loss and wasteful data re-transmission. In addition, Storm Control and Port Isolation mitigate the effects of broadcast storms caused by rogue software and malware, which can propagate across the network and bring communication to a standstill.
Innovative Design
The DGS-1016D feature a durable, compact metal case alongside a fanless design allowing for improved heat dissipation while maintaining silent operation. The 16-Port Gigabit Unmanaged Switch series is small, lightweight, wall-mountable, and is ideal for any business with demanding requirements and a small budget.
Green Technology
The 16-Port Gigabit Unmanaged Switch series helps you conserve energy automatically through several methods. Link status detection automatically powers down ports that have no link, allowing the switches to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down.
Meanwhile, Energy-Efficient Ethernet (EEE) conserves energy by dynamically reducing power consumption when data activity is low. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimise the use of harmful substances. These green features combined, provide more energy savings and a longer product life, without sacrificing operational performance or functionality.
