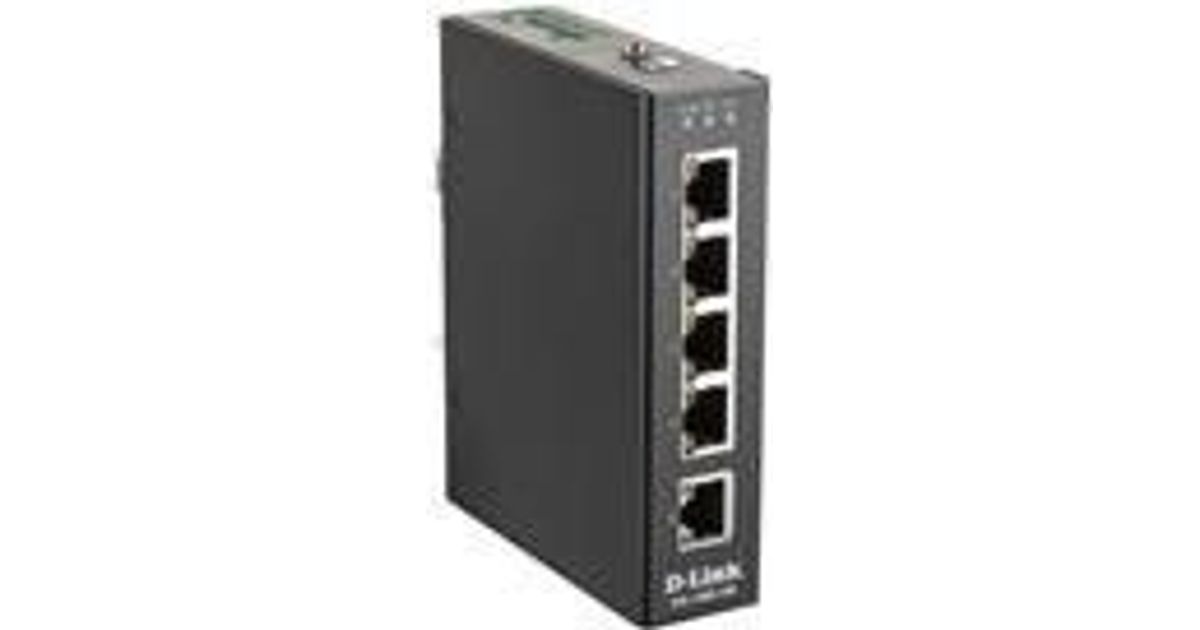

D-Link DIS-100E-5W network switch Unmanaged L2 Fast Ethernet (10/100) Black
D-Link DIS-100E-5W, Unmanaged, L2, Fast Ethernet (10/100), Full duplex, Rack mounting, Wall mountable
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | D-Link |
| Product code | 16486544 |
| EAN | 00790069441271 |
| Manufacturer part number | DIS-100E-5W |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Relay outputs | 1 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3x |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,100BASE-T |
| Broadcast storm control | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Wall mountable | Y |
| Certification | UL 60950‑1 CE FCC |
| Plug and Play | Y |
| Data transmission | |
|---|---|
| MAC address table | 1000 entries |
| Store-and-forward | Y |
| Design | |
|---|---|
| Rack mounting | Y |
| Stackable | Y |
| Product colour | Black |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Y |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 219000 h |
| Logistics data | |
|---|---|
| Shipping (inner) case height | 20 cm |
| Shipping (inner) case width | 30.5 cm |
| Shipping (inner) case length | 43 cm |
| Shipping (inner) case net weight | 5.78 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 226.4 kg |
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Products per pallet (air) | 360 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 135 cm |
| Pallet gross weight (sea) | 330.7 kg |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Products per pallet (sea) | 540 pc(s) |
| Pallet height (sea) | 195 cm |
| Shipping (inner) case gross weight | 5.79 kg |
| Power | |
|---|---|
| DC input voltage | 12 - 58 V |
| Power consumption (typical) | 0.95 W |
| Power consumption (max) | 1.56 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 29.1 mm |
| Depth | 89.4 mm |
| Height | 109.2 mm |
| Weight | 320 g |
| Package weight | 488 g |
| Packaging data | |
|---|---|
| Package width | 140 mm |
| Package depth | 178 mm |
| Package height | 83 mm |
Product Description
Unmanaged Plug and Play
Plug in and go. The DIS-100E-5W reliably forwards Ethernet frames.
Fast Ethernet Connectivity
Designed with 5 x 10/100BaseT(X) Fast Ethernet ports to suit your network layout.
Officially Certified
Certifications for vibration, shock, free-fall and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
