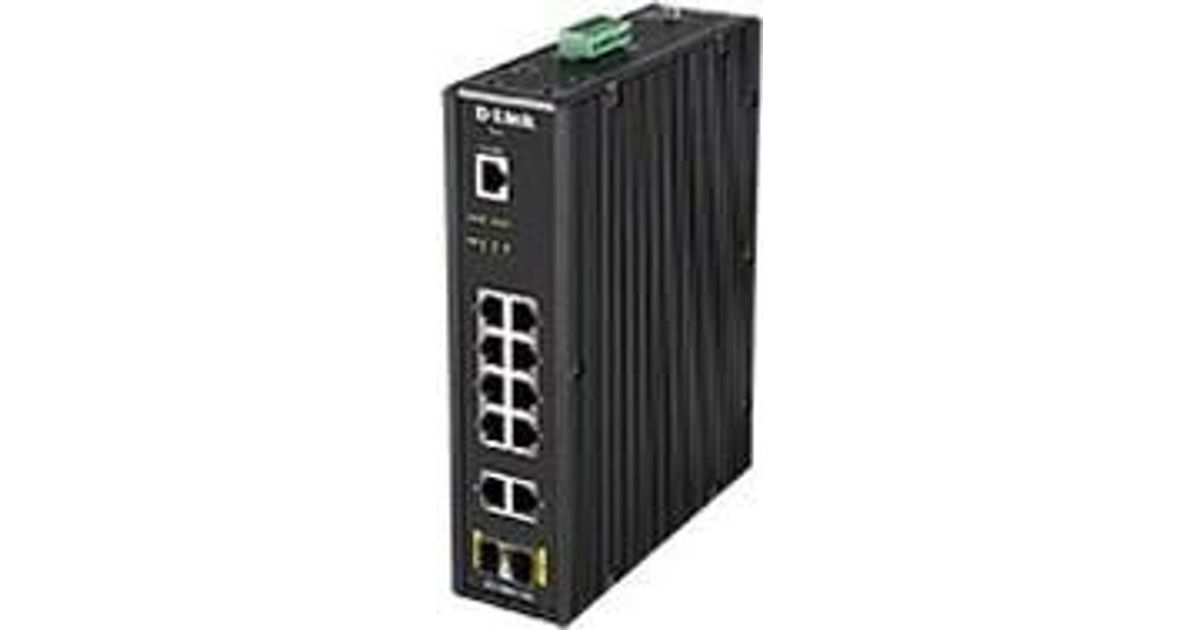

D-Link DIS-200G-12S network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
D-Link DIS-200G-12S, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, Wall mountable
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | D-Link |
| Product code | 16486562 |
| EAN | 00790069433535 |
| Manufacturer part number | DIS-200G-12S |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Configuring Location Settings (CLI) | Y |
| System event log | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 10 |
| Console port | RJ-45 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Number of VLANs | 4094 |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Port mirroring | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Auto MDI/MDI-X | Y |
| Spanning tree protocol | Y |
| Auto-negotiation | Y |
| Active link detection | Y |
| VLAN support | Y |
| Virtual LAN features | Voice VLAN,Tagged VLAN,Port-based VLAN |
| Security algorithms | 802.1x RADIUS,SSL/TLS |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Wall mountable | Y |
| Certification | CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 24 Gbit/s |
| Forwarding rate | 17.85 Mpps |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Jumbo frames | 9216 |
| Security | |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Y |
| Authentication | Port-based authentication |
| DoS attack prevention | Y |
| Authentication type | RADIUS |
| Queue scheduling algorithms | SPQ,Weighted Round Robin (WRR) |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Performance | |
|---|---|
| Management protocols | SNMP v1/v2c/v3, SNTP, Telnet |
| Safety | UL60950-1 |
| Mean time between failures (MTBF) | 276773 h |
| Heat dissipation | 35.01 BTU/h |
| Design | |
|---|---|
| Rack mounting | Y |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Y |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Y |
| Electromagnetic compatibility | CISPR 22, FCC Part 15B Class A |
| Logistics data | |
|---|---|
| Shipping (inner) case height | 25.2 cm |
| Shipping (inner) case width | 37.2 cm |
| Shipping (inner) case length | 40.9 cm |
| Shipping (inner) case net weight | 10.4 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Pallet gross weight (air) | 268.8 kg |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Products per pallet (air) | 120 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 114.3 cm |
| Pallet gross weight (sea) | 470.4 kg |
| Master (outer) cases per pallet (sea) | 42 pc(s) |
| Products per pallet (sea) | 210 pc(s) |
| Pallet height (sea) | 189.9 cm |
| Shipping (inner) case gross weight | 11.2 kg |
| Power | |
|---|---|
| DC input voltage | 12 - 48 V |
| Power consumption (max) | 10.26 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 65 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 171.2 mm |
| Depth | 48 mm |
| Height | 210 mm |
| Package weight | 2.07 kg |
| Packaging data | |
|---|---|
| Package width | 217 mm |
| Package depth | 355 mm |
| Package height | 76 mm |
Product Description
The DIS-200G-12S Layer 2 Industrial Managed Switch is equipped with 10 10/100/1000BASE-T ports and 2 SFP ports. This switch features a robust design making it ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environments. The DIS-200G-12S furthermore integrates advanced management and security functions to provide a complete solution.
Durable and Reliable Design
The DIS-200G-12S switch is housed in a highly resistant IP30-rated metal casing to protect the switch from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects DIS-200G-12S from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of DIS-200G-12S while also being able to operate in a wider temperature range of up to 65 °C. For increased flexibility, the DIS-200G-12S switch can also be mounted on a DIN rail, wall mounted, or be installed in an equipment rack.
Additionally, the DIS-200G-12S switch features 6 kV surge protection on all copper ports to help prevent damage to the switch and connected devices caused by sudden power surges and lightning strikes. The in-built surge protection of up to 6 kV can mitigate the damage to the switch from both indoor and outdoor devices and network connections by absorbing the excess energy while still letting the amount of power through required for the switch to operate normally. This increases network reliability, reduces repair costs, and removes the need for replacement hardware in the event of an electrical surge or lightning strike.
High Redundancy and Reliability
The DIS-200G-12S switch supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the network continues to operate in the event of a primary power supply failure.
Surveillance Traffic Optimization
The DIS-200G-12S switch supports the Auto Surveillance VLAN feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting their traffic from the rest of the network. This provides increased security of surveillance data, and gives the traffic a higher priority through the switch, reducing the chances of the video freezing or being delayed on live streams. A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware while simultaneously reducing maintenance costs.
Easy Troubleshooting
The DIS-200G-12S switch features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Durable and Reliable Design
The DIS-200G-12S switch is housed in a highly resistant IP30-rated metal casing to protect the switch from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects DIS-200G-12S from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of DIS-200G-12S while also being able to operate in a wider temperature range of up to 65 °C. For increased flexibility, the DIS-200G-12S switch can also be mounted on a DIN rail, wall mounted, or be installed in an equipment rack.
Additionally, the DIS-200G-12S switch features 6 kV surge protection on all copper ports to help prevent damage to the switch and connected devices caused by sudden power surges and lightning strikes. The in-built surge protection of up to 6 kV can mitigate the damage to the switch from both indoor and outdoor devices and network connections by absorbing the excess energy while still letting the amount of power through required for the switch to operate normally. This increases network reliability, reduces repair costs, and removes the need for replacement hardware in the event of an electrical surge or lightning strike.
High Redundancy and Reliability
The DIS-200G-12S switch supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the network continues to operate in the event of a primary power supply failure.
Surveillance Traffic Optimization
The DIS-200G-12S switch supports the Auto Surveillance VLAN feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting their traffic from the rest of the network. This provides increased security of surveillance data, and gives the traffic a higher priority through the switch, reducing the chances of the video freezing or being delayed on live streams. A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware while simultaneously reducing maintenance costs.
Easy Troubleshooting
The DIS-200G-12S switch features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
