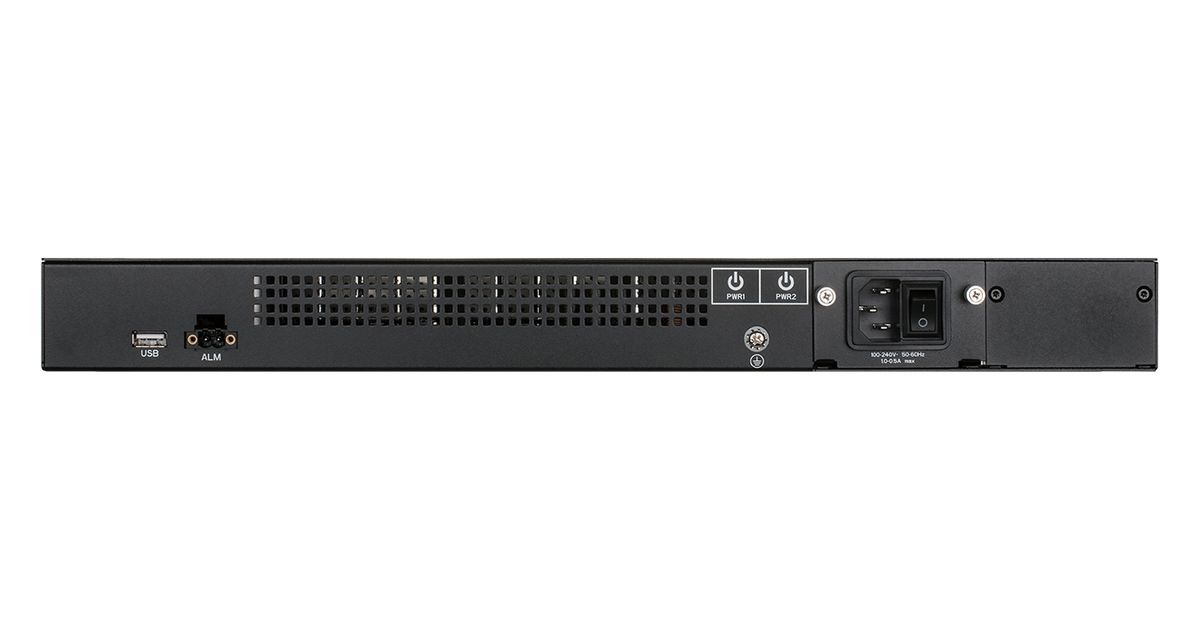

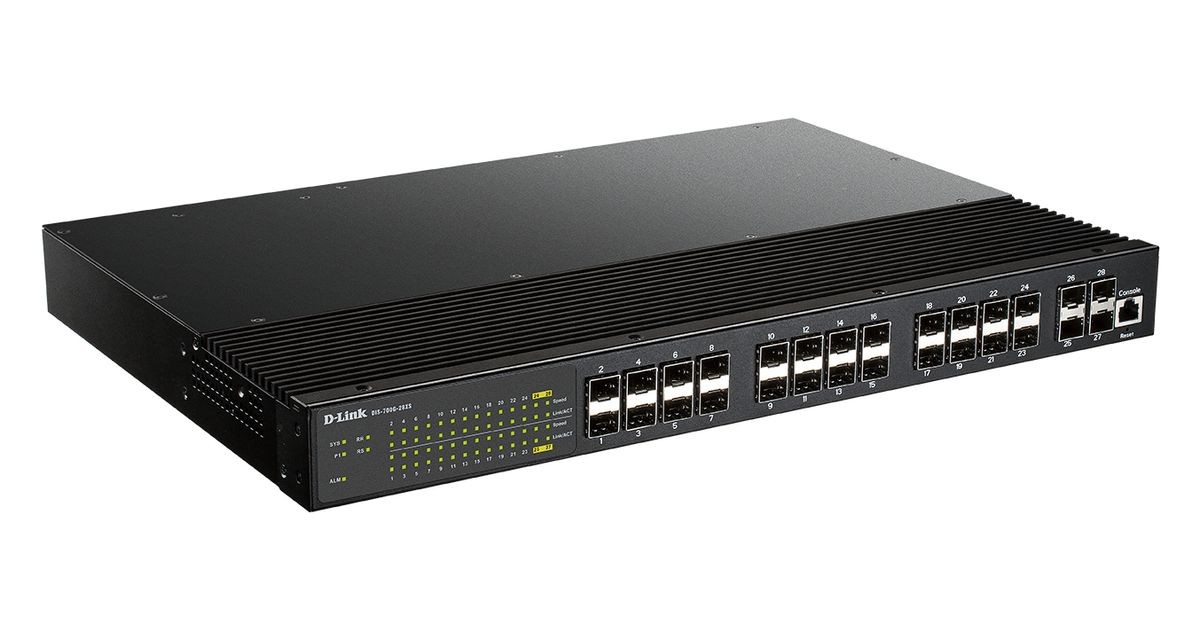

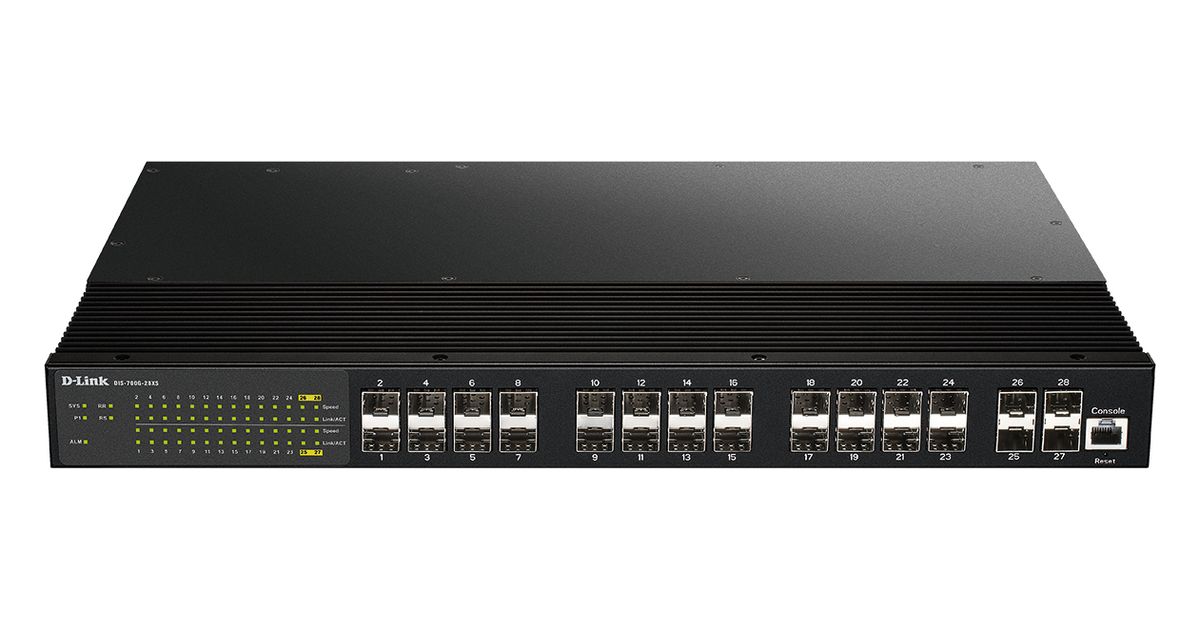

D-Link DIS-700G-28XS network switch Managed L2+ 1U Black
D-Link DIS-700G-28XS, Managed, L2+, Rack mounting, 1U
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | D-Link |
| Product code | 167822295 |
| EAN | 00790069437953 |
| Manufacturer part number | DIS-700G-28XS |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Y |
| Traffic shaping | Y |
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 24 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1w, IEEE 802.3x |
| Network | |
|---|---|
| 10G support | Y |
| VLAN support | Y |
| Virtual LAN features | Multicast VLAN |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Design | |
|---|---|
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | Black |
| Logistics data | |
|---|---|
| Shipping (inner) case height | 46.8 cm |
| Shipping (inner) case width | 35.7 cm |
| Shipping (inner) case length | 58.2 cm |
| Shipping (inner) case net weight | 17.5 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 242.1 kg |
| Master (outer) cases per pallet (air) | 12 pc(s) |
| Products per pallet (air) | 36 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 107.1 cm |
| Pallet gross weight (sea) | 467.2 kg |
| Master (outer) cases per pallet (sea) | 24 pc(s) |
| Products per pallet (sea) | 72 pc(s) |
| Pallet height (sea) | 2.01 m |
| Shipping (inner) case gross weight | 18.8 kg |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 35 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 318.5 mm |
| Height | 44 mm |
| Weight | 4.5 kg |
| Package weight | 5.83 kg |
| Packaging data | |
|---|---|
| Package width | 430 mm |
| Package depth | 570 mm |
| Package height | 110 mm |
| Features | |
|---|---|
| Harmonized System (HS) code | 85176990 |
Product Description
Layer 2+ Managed Customization
For the core of your network, the DIS-700G-28XS features user management interfaces and provides diagnostics, security and controls to shape your managed network needs.
Gigabit Connectivity with SFP slots
Designed with 24 x SFP ports and 4 x 10G SFP+ slots (1G SFP backwards compatible) to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from –10°C to +65°C, and can cold start from -10°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
High Availability
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
